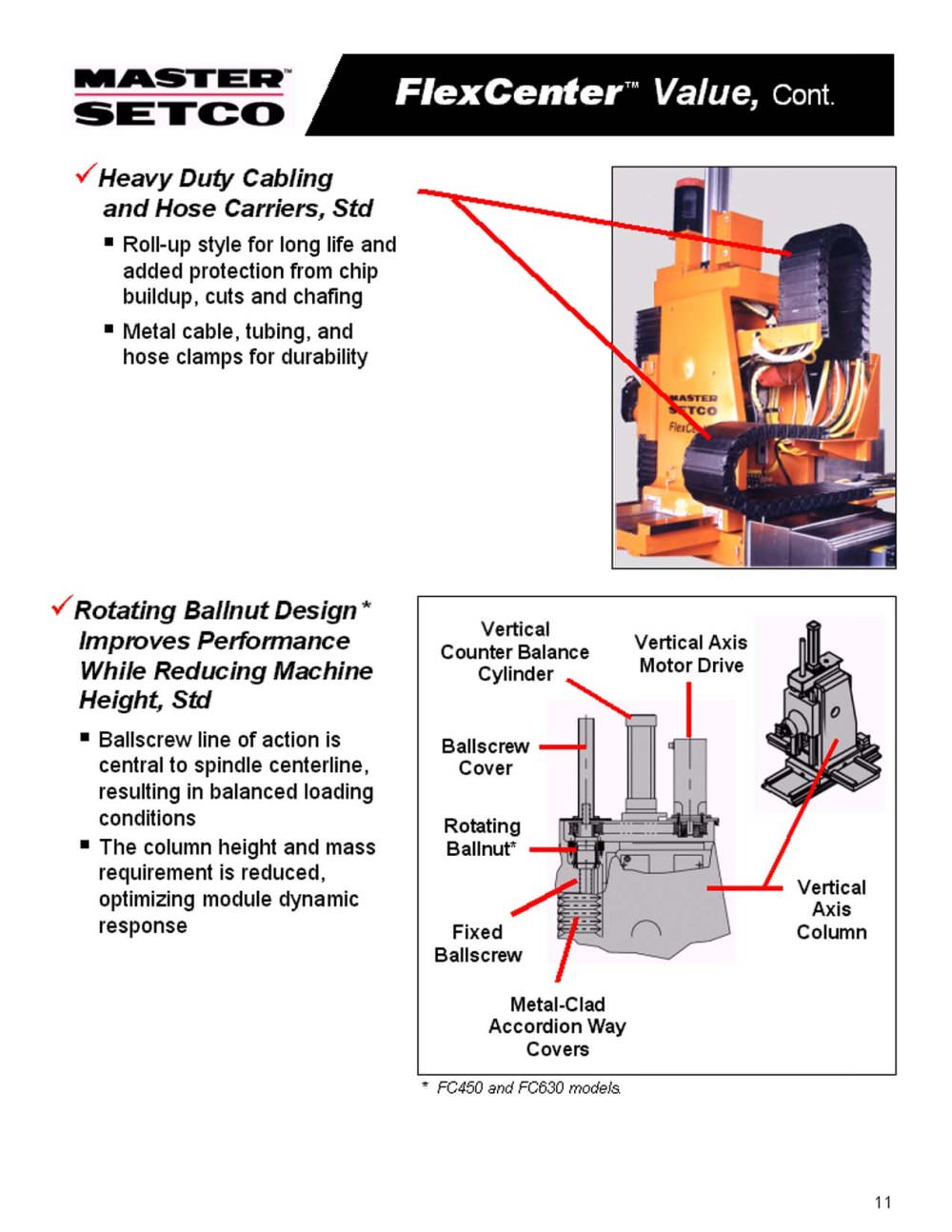

FlexCenter Value, Cont.

/ Heavy Duty Cabling and Hose Carriers, Std

■ Roll-up style for long life and added protection from chip buildup, cuts and chafing

■ Metal cable, tubing, and hose clamps for durability

/Rotating Ballnut Design * Improves Performance White Reducing Machine Height, Std

■ Ballscrew line of action is central to spindle centerline, resulting in balanced loading conditions

■ The column height and mass requirement is reduced, optimizing module dynamic response

Rotating Ballnut*

Vertical

Axis Column

Fixed Ballscrew

Metal-Clad Accordion Way Covers

• FC450 and FC630 models.
