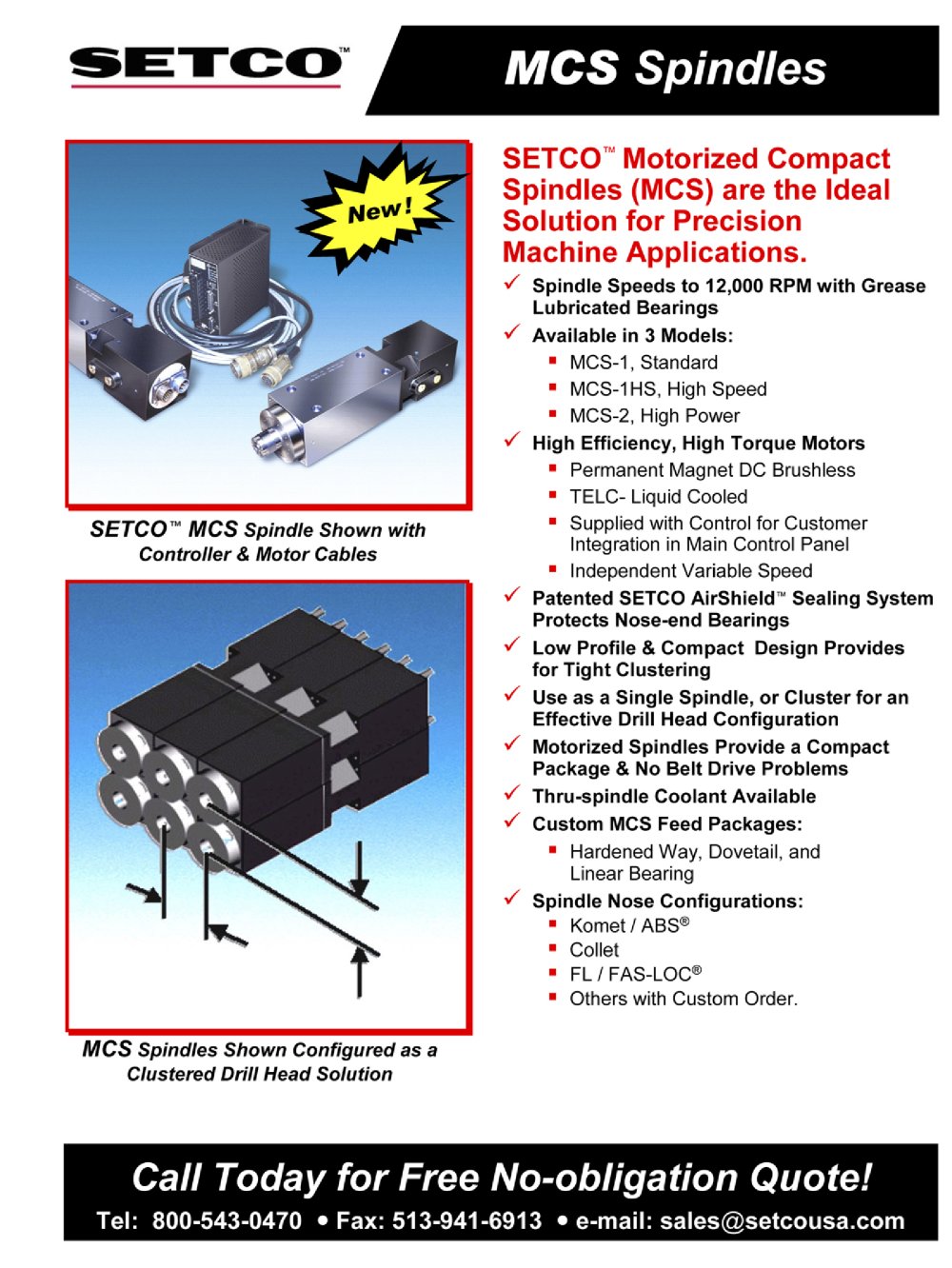

MCS Spindles

SETCO™ Motorized Compact Spindles (MCS) are the Ideal Solution for Precision Machine Applications.

S Spindle Speeds to 12,000 RPM with Grease Lubricated Bearings

S Available in 3 Models:

■ MCS-1, Standard

■ MCS-1 HS, High Speed

■ MCS-2, High Power

S High Efficiency, High Torque Motors

■ Permanent Magnet DC Brushiess

■ TELC- Liquid Cooled

■ Supplied with Control for Customer Integration in Main Control Panel

■ Independent Variable Speed

S Patented SETCO AirShield" Sealing System Protects Nose-end Bearings

/ Low Profile & Compact Design Provides for Tight Clustering

S Use as a Single Spindle, or Cluster for an Effective Drill Head Configuration

S Motorized Spindles Provide a Compact Package & No Belt Drive Problems

J Thru-spindle Coolant Available

S Custom MCS Feed Packages:

■ Hardened Way, Dovetail, and Linear Bearing

S Spindle Nose Configurations:

■ Komet/ABS®

■ Collet

■ FL/FAS-LOC®

■ Others with Custom Order.

SETCO" MCS Spindle Shown with Controller & Motor Cables

MCS Spindles Shown Configured as a Clustered Drill Head Solution

Call Today for Free No-obligation Quote!

Tel: 800-543-0470 • Fax: 513-941-6913 • e-mail: sales@setcousa.com
