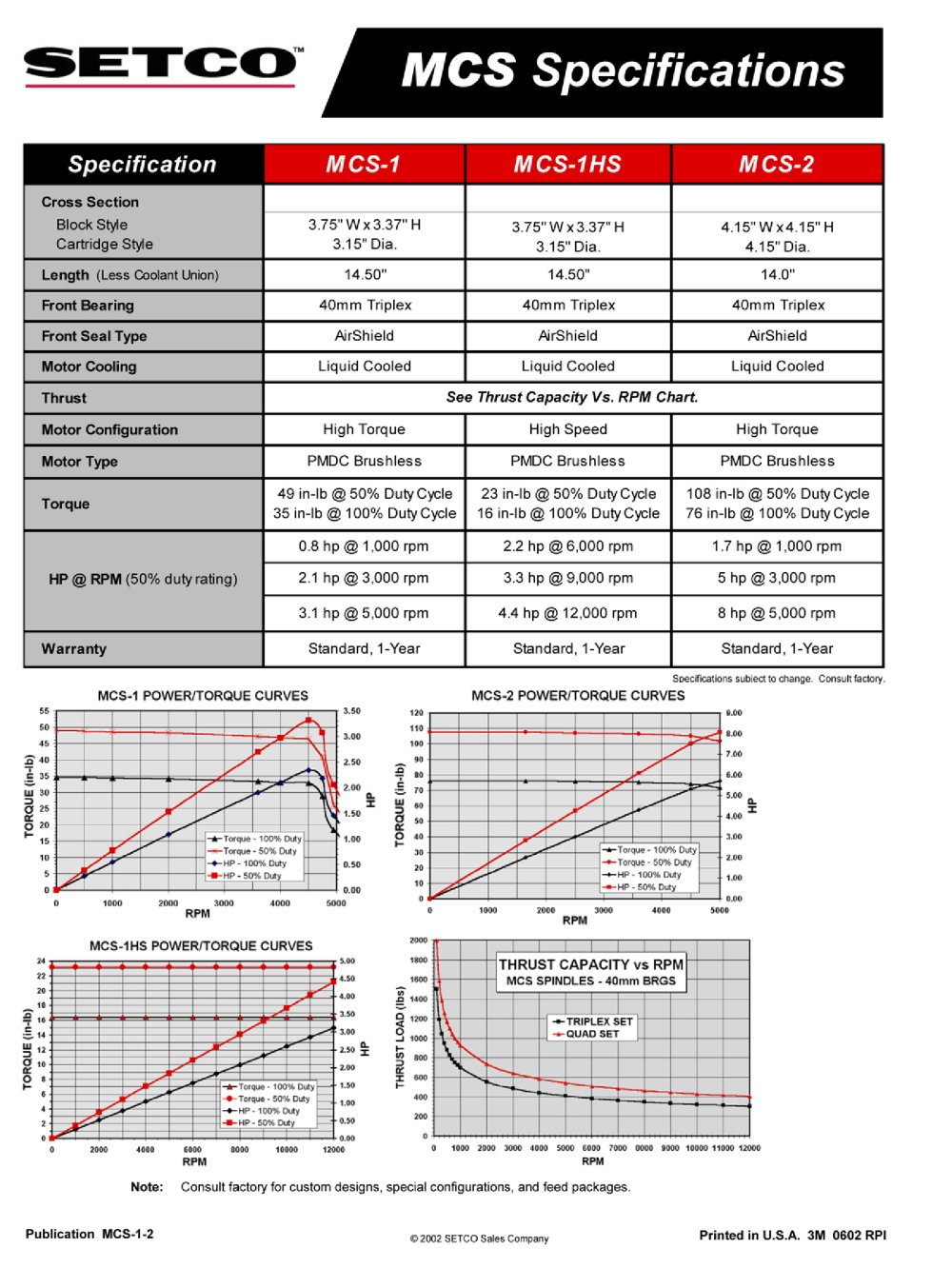

MCS Specifications


*Specification*	*MCS-1*	*MCS-1HS*	*MCS-2*
Cross Section Block Style Cartridge Style
Cross Section Block Style Cartridge Style	3.75" W x 3.37" H 3.15" Dia.	3.75" Wx 3.37" H 3.15" Dia.	4.15"Wx4.15"H 4.15" Dia.
Length (Less Coolant Union)	14.50"	14.50"	14.0"
Front Bearing specification	40mm Triplex	40mm Triplex	40mm Triplex
Front Professional seal Type	AirShield	AirShield	AirShield
Motor Cooling	Liquid Cooled	Liquid Cooled	Liquid Cooled
Thrust	See *Thrust Capacity Vs. RPM Chart.*
Motor Configuration	High Torque	High Speed	High Torque
Motor Type	PMDC Brushless	PMDC Brushless	PMDC Brushless
Torque	49 in-lb @ 50% Duty Cycle 35 in-lb @ 100% Duty Cycle	23 in-lb @ 50% Duty Cycle 16 in-lb @ 100% Duty Cycle	108 in-lb @ 50% Duty Cycle 76 in-lb @ 100% Duty Cycle
HP @ RPM (50% duty rating)	0.8 hp @ 1,000 rpm	2.2 hp @ 6,000 rpm	1.7 hp @ 1,000 rpm
	2.1 hp @ 3,000 rpm	3.3 hp @ 9,000 rpm	5 hp @ 3,000 rpm
	3.1 hp @ 5,000 rpm	4.4 hp @ 12,000 rpm	8 hp @ 5,000 rpm
Warranty	Standard, 1-Year	Standard, 1-Year	Standard, 1-Year

Spedficatic

MCS-2 POWER/TORQUE CURVES

ubiecJ to change. Consult factory.

MCS-1 POWER/TORQUE CURVES

-•-Torque-100% Duty -•-Torque - 50% Duty -*~HP -100% Duly -•-HP- 50% Duty

O so

O 40

MCS-1 HS POWER/TORQUE CURVES

1000 2000 3000

6000 7000 8000 9000 10000 11000 12000

RPM RPM

Note: Consult factory for custom designs, special configurations, and feed packages.

Publication MCS-1-2

Printed in U.S.A. 3M 0602 RPI

» 2002 SETCO Sales Company
