HS Ser

ries

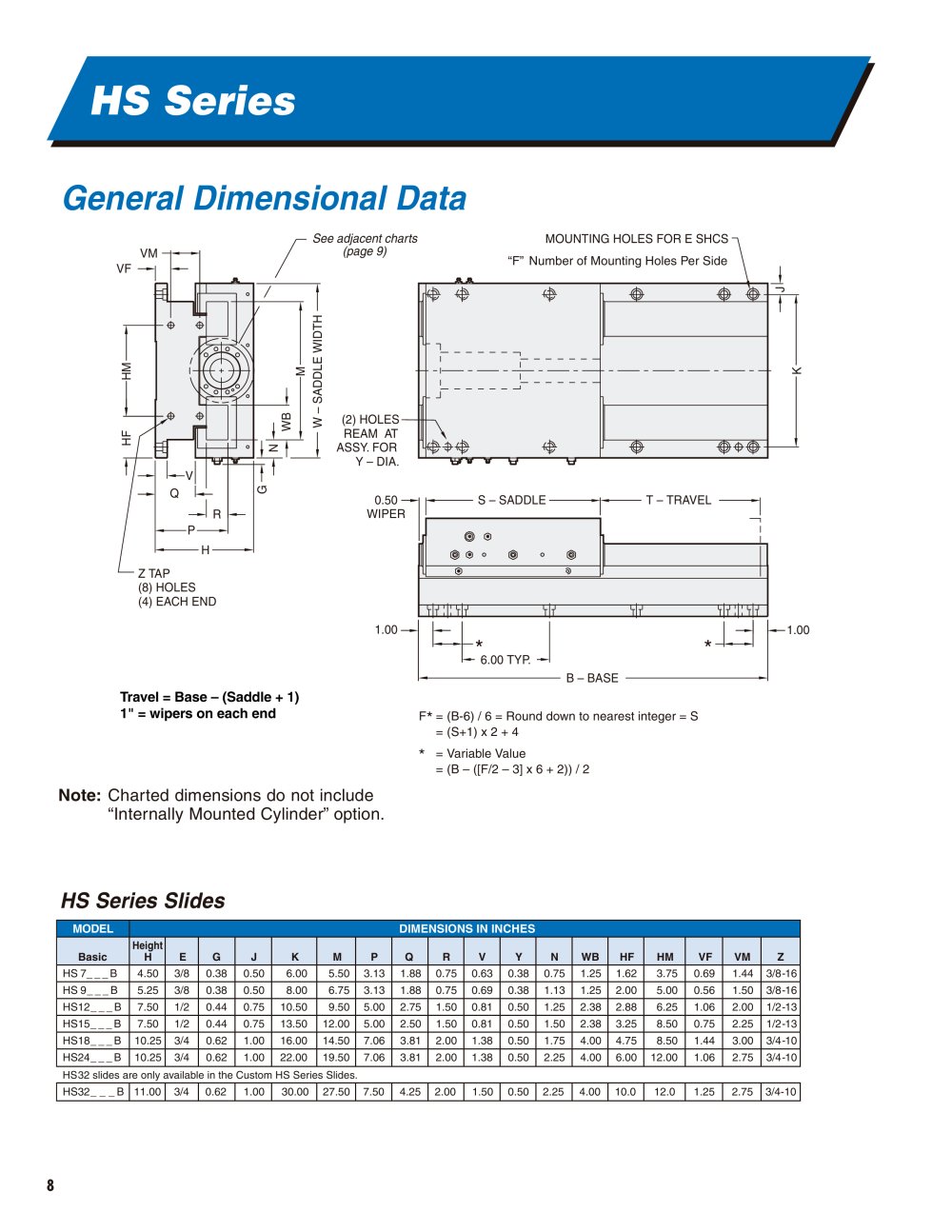

General Dimensional Data

See adjacent charts (page 9)

MOUNTING HOLES FOR E SHCS -"F" Number of Mounting Holes Per Side

> (2) HOLES-REAM AT ASSY. FOR Y - DIA.

"W W—Q-

S - SADDLE-

T- TRAVEL

0.50 —i WIPER

® o

Z TAP (8) HOLES (4) EACH END

TOY

1.00-

1.00

I— 6.00 TYP. —I

B - BASE

Travel = Base - (Saddle + 1) 1" = wipers on each end

F* = (B-6) / 6 = Round down to nearest integer = S = (s+1) x 2 + 4

* = Variable Value

= (B - ([F/2 - 3] x 6 + 2)) / 2

Note: Charted dimensions do not include "Internally Mounted Cylinder" option.

HS Series Slides


MODEL
Basic	Height H	E	G	J	K	M	P	Q	R	V	Y	N	WB	HF	HM	VF	VM	Z
HS 7___B	4.50	3/8	0.38	0.50	6.00	5.50	3.13	1.88	0.75	0.63	0.38	0.75	1.25	1.62	3.75	0.69	1.44	3/8-16
HS 9___B	5.25	3/8	0.38	0.50	8.00	6.75	3.13	1.88	0.75	0.69	0.38	1.13	1.25	2.00	5.00	0.56	1.50	3/8-16
HS12___B	7.50	1/2	0.44	0.75	10.50	9.50	5.00	2.75	1.50	0.81	0.50	1.25	2.38	2.88	6.25	1.06	2.00	1/2-13
HS15___B	7.50	1/2	0.44	0.75	13.50	12.00	5.00	2.50	1.50	0.81	0.50	1.50	2.38	3.25	8.50	0.75	2.25	1/2-13
HS18___B	10.25	3/4	0.62	1.00	16.00	14.50	7.06	3.81	2.00	1.38	0.50	1.75	4.00	4.75	8.50	1.44	3.00	3/4-10
HS24___B	10.25	3/4	0.62	1.00	22.00	19.50	7.06	3.81	2.00	1.38	0.50	2.25	4.00	6.00	12.00	1.06	2.75	3/4-10
HS32 slides are only available in the Custom HS Series Slides.
HS32___B	11.00	3/4	0.62	1.00	30.00	27.50	7.50	4.25	2.00	1.50	0.50	2.25	4.00	10.0	12.0	1.25	2.75	3/4-10
