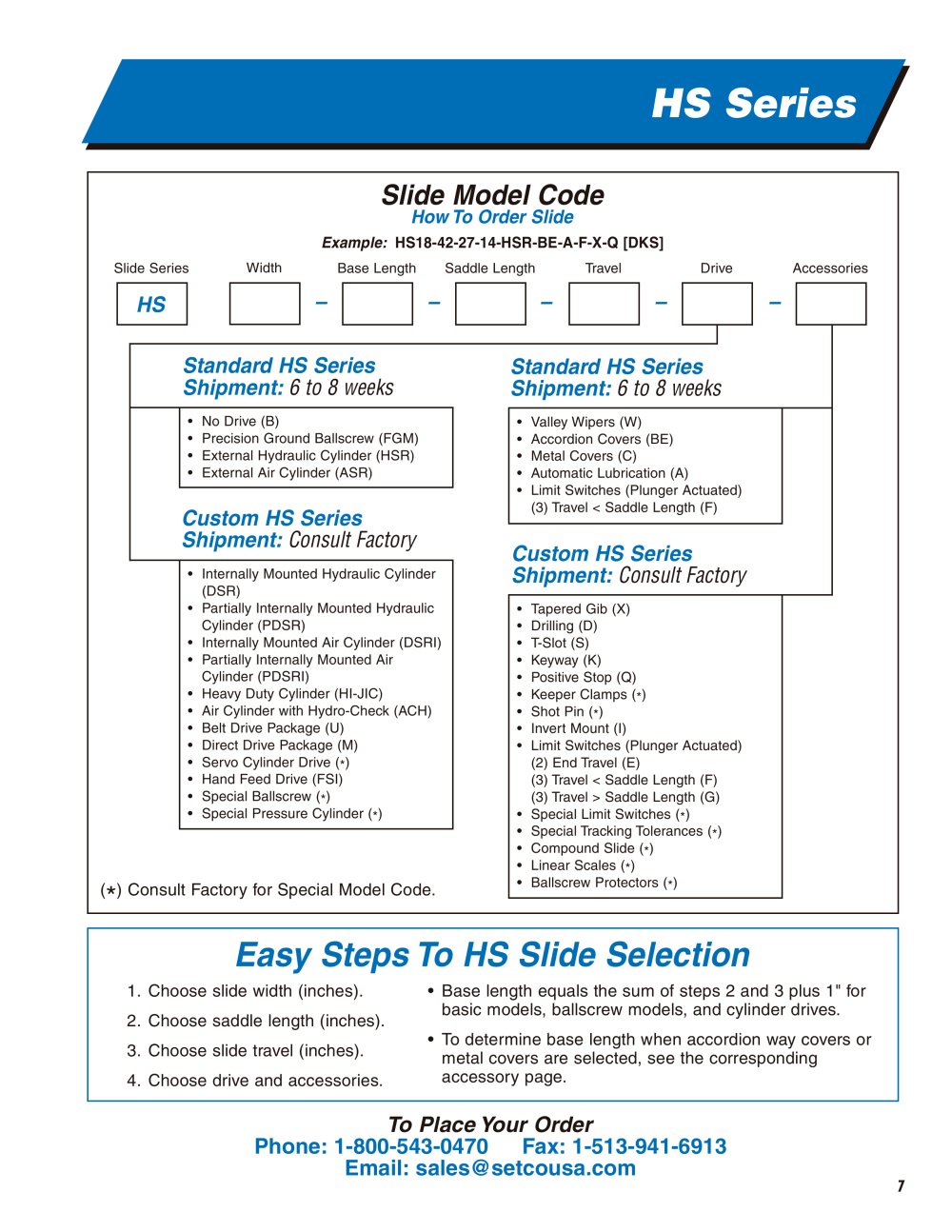

HS Series

Slide Model Code

How To Order Slide

Example: HS18-42-27-14-HSR-BE-A-F-X-Q [DKS]

Slide Series Width Base Length Saddle Length Travel Drive Accessories

HS––––– Standard HS SeriesShipment: Standard HS SeriesShipment: 6 to 8 weeks 6 to 8 weeks

•No Drive (B) •Precision Ground Ballscrew (FGM) •External Hydraulic cylinder (HSR) •External Air cylinder (ASR) •Valley Wipers (W)•Accordion Covers (BE) •Metal Covers (C) •Automatic lubrication (A) •Limit Switches (Plunger Actuated)(3) Travel < Saddle Length (F)

Custom HS SeriesShipment: Consult Factory Custom HS SeriesShipment:

•Internally Mounted Hydraulic Cylinder(DSR)•Partially Internally Mounted HydraulicCylinder (PDSR)•Internally Mounted Air Cylinder (DSRI)•Partially Internally Mounted AirCylinder (PDSRI)•Heavy Duty Cylinder (HI-JIC) •Air Cylinder with Hydro-Check (ACH)•Belt Drive Package (U)•Direct Drive Package (M) •Servo cylinder Drive (*)•Hand Feed Drive (FSI)•Special Ballscrew (*)•Special Pressure Cylinder (*)

Consult Factory

•Tapered Gib (X) •Drilling (D) •T-Slot (S)•Keyway (K) •Positive Stop (Q) •Keeper Clamps (*)•Shot Pin (*)•Invert Mount (I)•Limit Switches (Plunger Actuated)(2) End Travel (E) (3) Travel < Saddle Length (F)(3) Travel > Saddle Length (G)•Special Limit Switches (*)•Special Tracking Tolerances (*)•Compound Slide (*)•Linear scales (*)•Ballscrew Protectors (*)

(

*

) Consult Factory for Special Model Code.

Easy Steps To HS Slide Selection

1.Choose slide width (inches).2.Choose saddle length (inches). 3.Choose slide travel (inches). 4.Choose drive and accessories.•Base length equals the sum of steps 2 and 3 plus 1" forbasic models, ballscrew models, and cylinder drives.•To determine base length when accordion way covers ormetal covers are selected, see the corresponding accessory page.

To Place Your Order Phone:1-800-543-0470 Fax:1-513-941-6913Email:sales@setcousa.com

7
