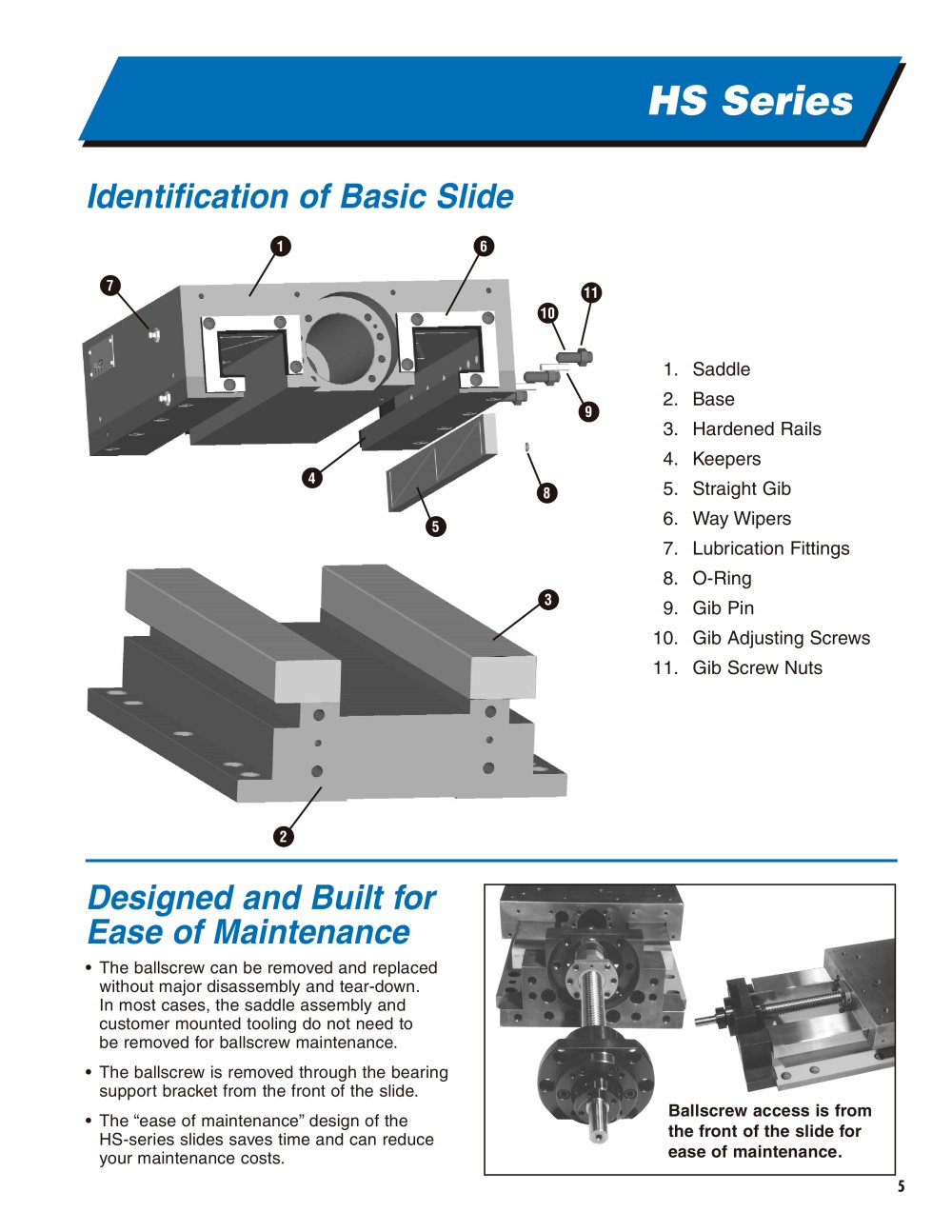

HS Series Identification of Basic Slide 1 6 7 11 10 1.Saddle 2.Base 3.Hardened Rails 4.Keepers 5.Straight Gib 6.Way Wipers 7.Lubrication fittings 8.O-Ring
9.Gib Pin 10.Gib Adjusting Screws 11.Gib Screw Nuts 9 4 8 5 3 2 Designed and Built for Ease of Maintenance •The ballscrew can be removed and replaced without major disassembly and tear-down.
In most cases, the saddle assembly and customer mounted tooling do not need to be removed for ballscrew maintenance.•The ballscrew is removed through the bearing support bracket from the front of the slide.•The “ease of maintenance”design of the HS-series slides saves time and can reduce your maintenance costs. Ballscrew access is fromthe front of the slide for
ease of maintenance. 5
|
