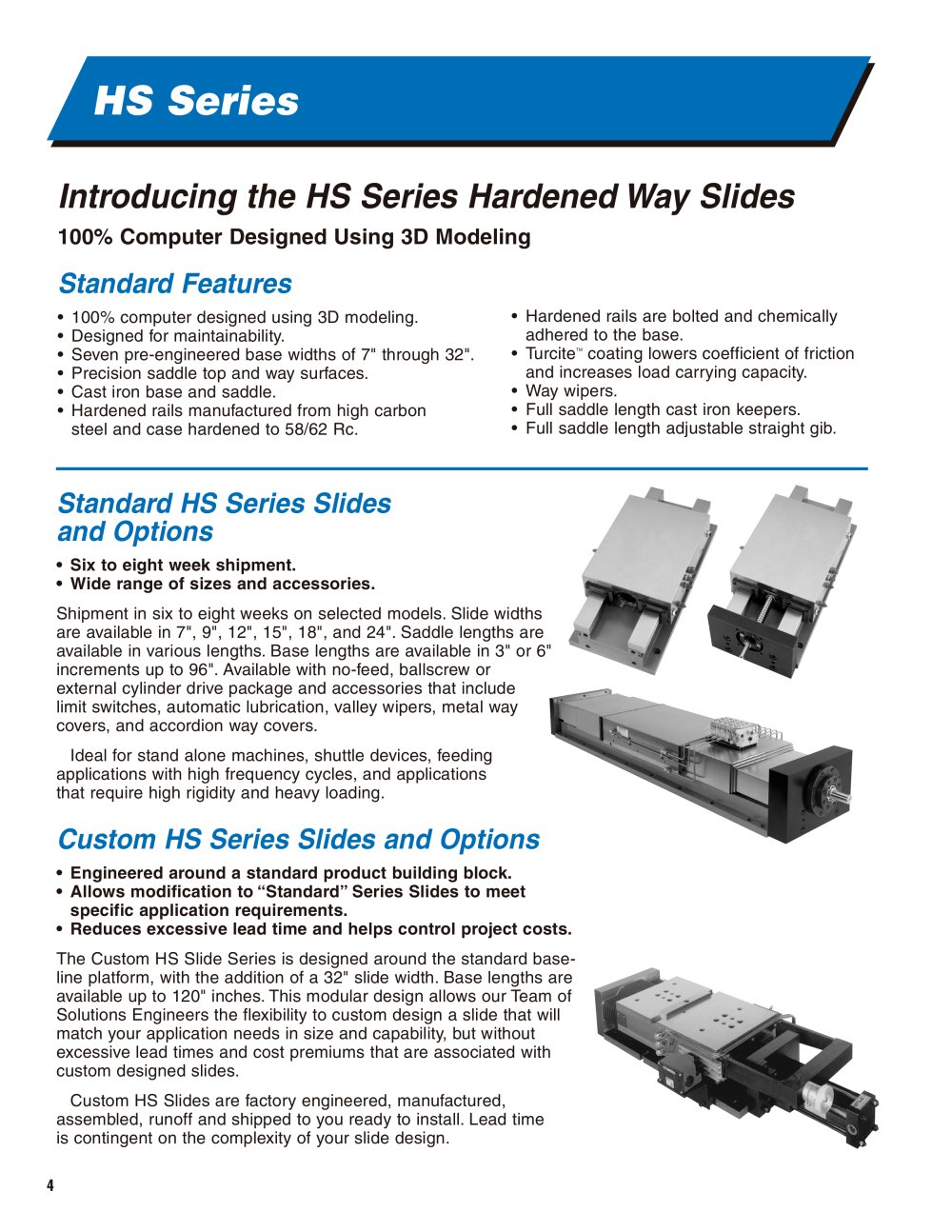

HS Series

Introducing the HS Series Hardened Way Slides

100% Computer Designed Using 3D Modeling

Standard Features

•100% computer designed using 3D modeling.•Designed for maintainability. •Seven pre-engineered base widths of 7" through 32". •Precision saddle top and way surfaces. •Cast iron base and saddle. •Hardened rails manufactured from high carbon steel and case hardened to 58/62 Rc.•Hardened rails are bolted and chemicallyadhered to the base.•Turcite
TM coating lowers coefficient of frictionand increases load carrying capacity.•Way wipers. •Full saddle length cast iron keepers. •Full saddle length adjustable straight gib.

Standard HS Series Slides and Options

•Six to eight week shipment.•Wide range of sizes and accessories. Shipment in six to eight weeks on selected models.Slide widthsare available in 7", 9", 12", 15", 18", and 24".Saddle lengths are available in various lengths.Base lengths are available in 3" or 6" increments up to 96".Available with no-feed, ballscrew or external cylinder drive package and accessories that include limit switches, automatic lubrication, valley wipers, metal way covers, and accordion way covers.Ideal for stand alone machines, shuttle devices, feeding applications with high frequency cycles, and applications that require high rigidity and heavy loading.

Custom HS Series Slides and Options

•Engineered around a standard product building block. •Allows modification to “Standard”Series Slides to meet specific application requirements.•Reduces excessive lead time and helps control project costs. The Custom HS Slide Series is designed around the standard base-line platform, with the addition of a 32" slide width.Base lengths are available up to 120" inches.This modular design allows our Team of Solutions Engineers the flexibility to custom design a slide that will match your application needs in size and capability, but without excessive lead times and cost premiums that are associated with custom designed slides.Custom HS Slides are factory engineered, manufactured, assembled, runoff and shipped to you ready to install.Lead time is contingent on the complexity of your slide design.
4
