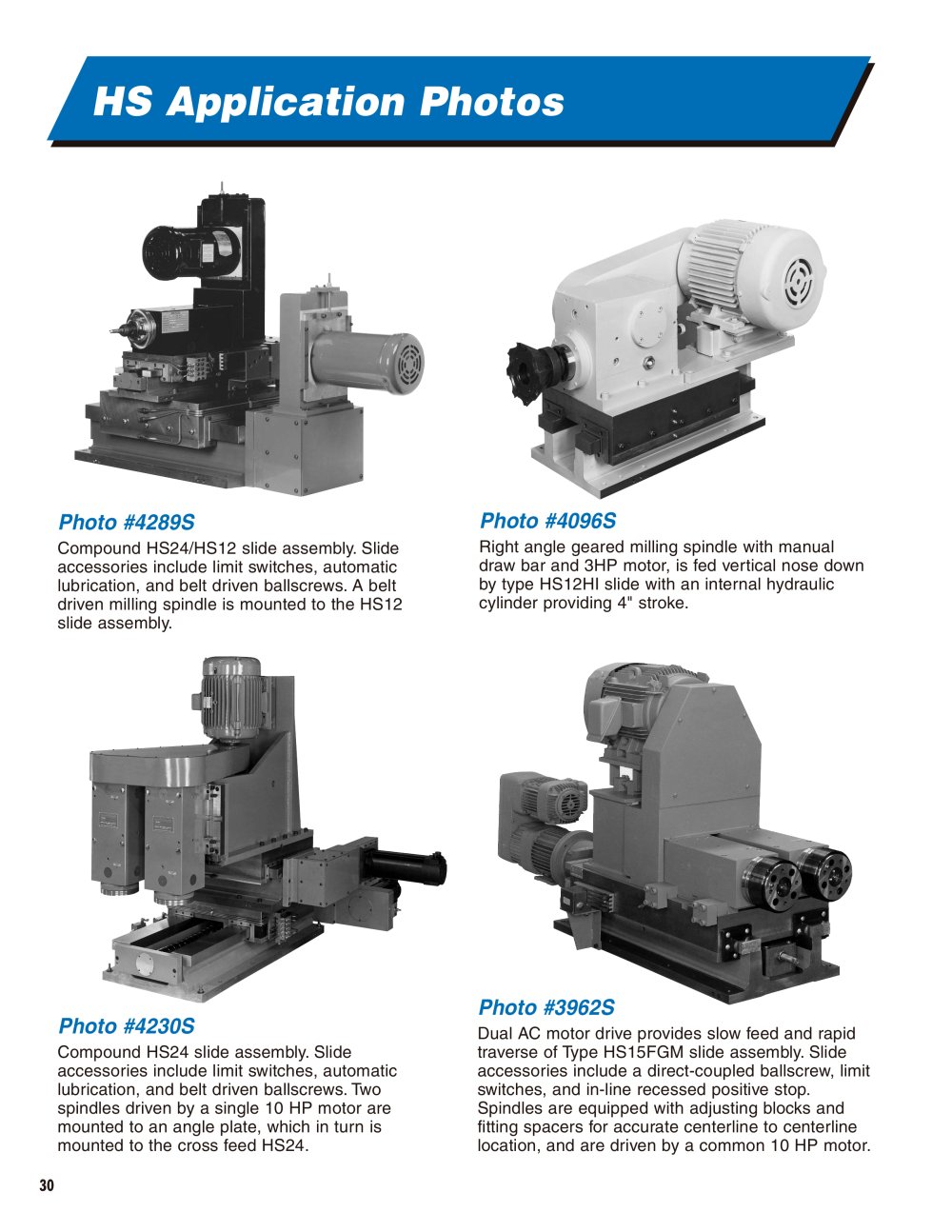

HS Application Photos

Photo #4289S Photo #4096S

Compound HS24/HS12 slide assembly.Slideaccessories include limit switches, automatic lubrication, and belt driven ballscrews.A belt driven milling spindle is mounted to the HS12 slide assembly. Right angle geared milling spindle with manual draw bar and 3HP motor, is fed vertical nose down by type HS12HI slide with an internal industrial hydraulic cylinder providing 4" stroke.

Photo #3962S Photo #4230S

Dual AC motor drive provides slow feed and rapid traverse of Type HS15FGM slide assembly.Slide accessories include a direct-coupled ballscrew, limit switches, and in-line recessed positive stop. Spindles are equipped with adjusting blocks and fitting spacers for accurate centerline to centerline location, and are driven by a common 10 HP motor. Compound HS24 slide assembly.Slide accessories include limit switches, automatic lubrication, and belt driven ballscrews.Two spindles driven by a single 10 HP motor are mounted to an angle plate, which in turn is mounted to the cross feed HS24.
30
