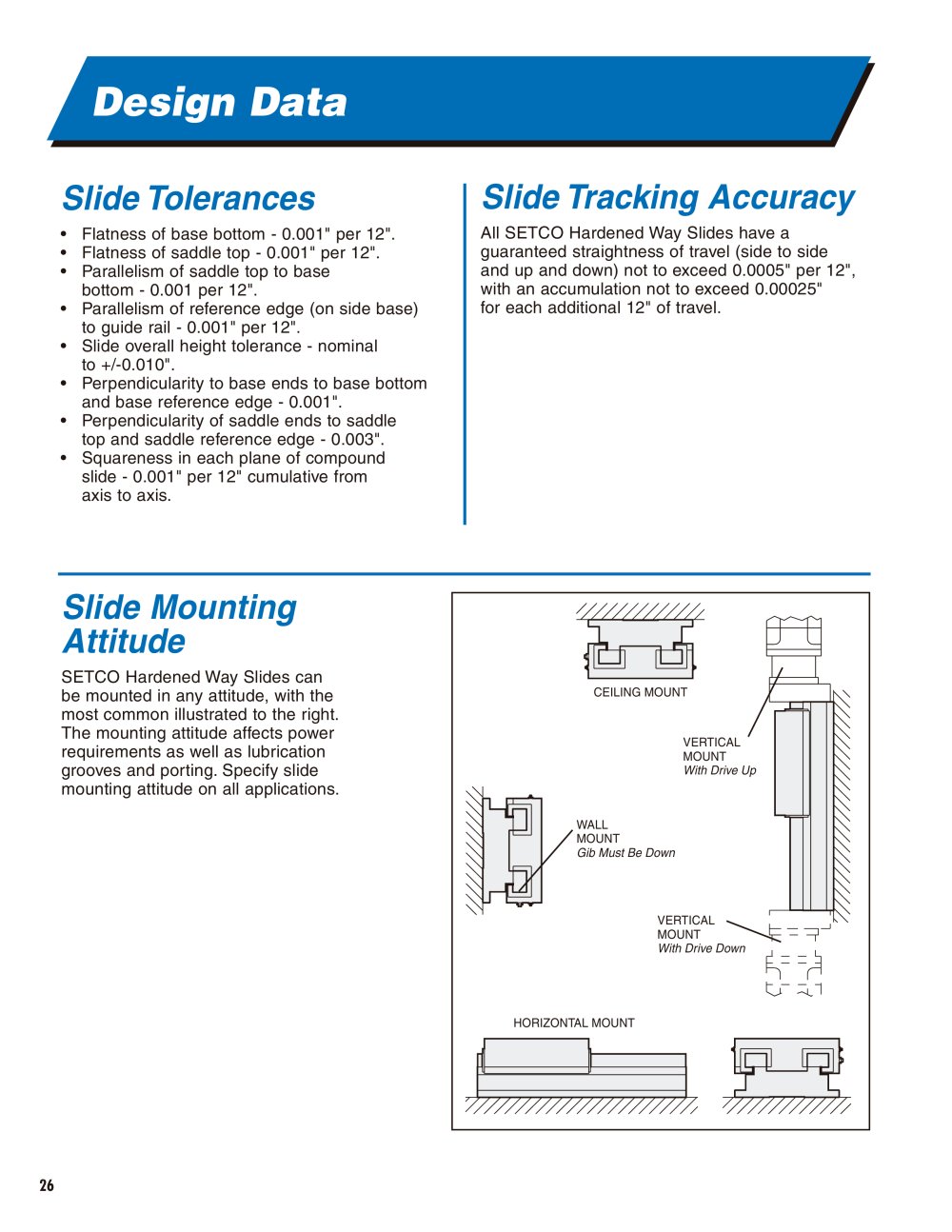

Design Data

Slide Tolerances Slide Tracking Accuracy

•Flatness of base bottom - 0.001" per 12".•Flatness of saddle top - 0.001" per 12". •Parallelism of saddle top to base bottom - 0.001 per 12".•Parallelism of reference edge (on side base) to guide rail - 0.001" per 12".•Slide overall height tolerance - nominal to +/-0.010".•Perpendicularity to base ends to base bottomand base reference edge - 0.001".•Perpendicularity of saddle ends to saddle top and saddle reference edge - 0.003".•Squareness in each plane of compound slide - 0.001" per 12" cumulative from axis to axis. All SETCO Hardened Way Slides have a guaranteed straightness of travel (side to side and up and down) not to exceed 0.0005" per 12", with an accumulation not to exceed 0.00025" for each additional 12" of travel.

Slide MountingAttitude

SETCO Hardened Way Slides can be mounted in any attitude, with the most common illustrated to the right. The mounting attitude affects power requirements as well as lubrication grooves and porting.Specify slide mounting attitude on all applications.

CEILING MOUNTVERTICALMOUNT With Drive Up WALLMOUNT Gib Must Be Down VERTICALMOUNT With Drive Down HORIZONTAL MOUNT

26
