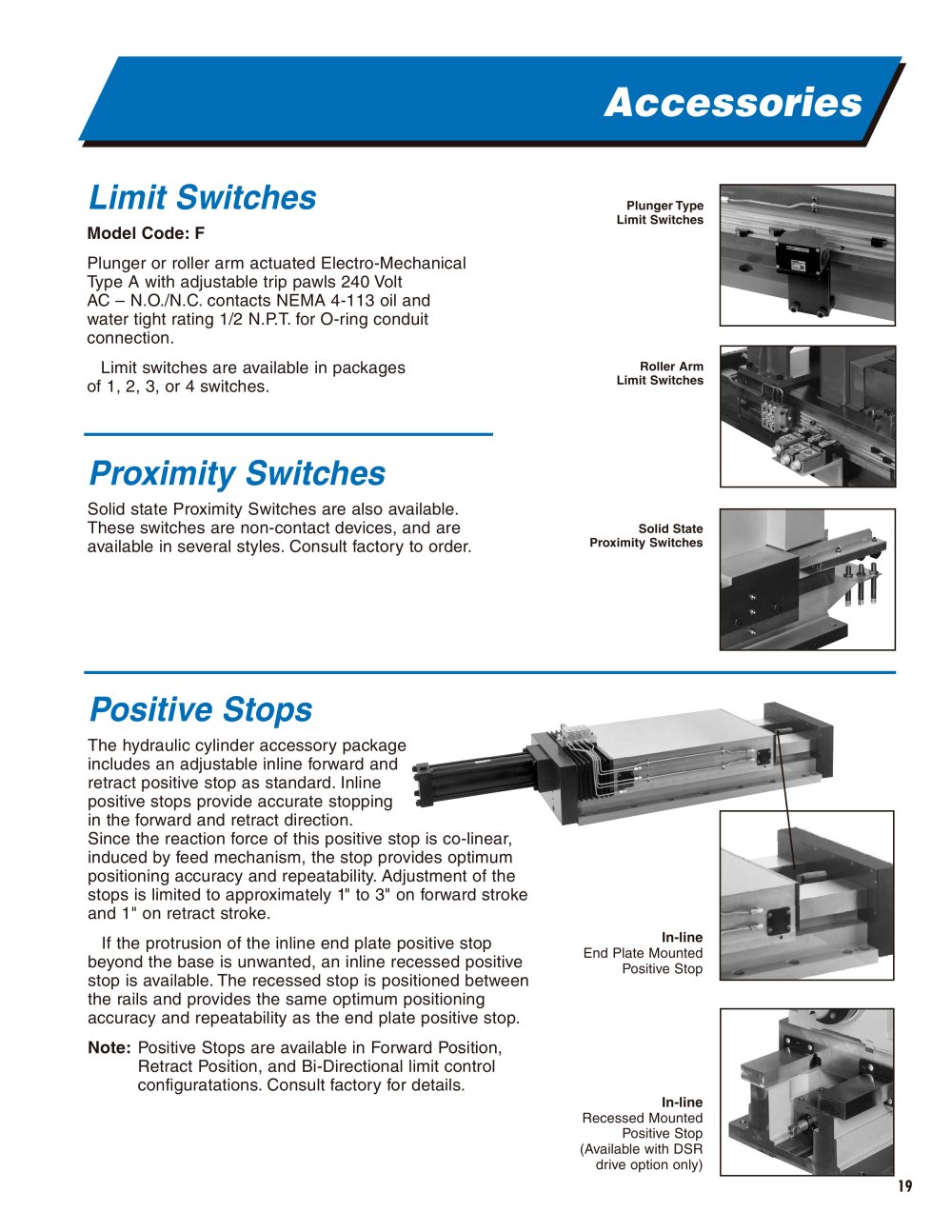

| | | Accessories j | | |
| | | |
| | | Limit Switches Model Code: F Plunger or roller arm actuated Electro-Mechanical Type A with adjustable trip pawls 240 Volt AC - N.O./N.C. contacts NEMA 4-113 oil and water tight rating 1/2 N.P.T. for O-ring conduit connection. Limit switches are available in packages of 1, 2, 3, or 4 switches. | | |
| | | Plunger Type Limit Switches | | |
| | | |
| | | Roller Arm Limit Switches | | |
| | | |
| | | |
| | | Solid state Proximity switches are also available. These switches are non-contact devices, and are available in several styles. Consult factory to order. | | |
| | | Solid State Proximity Switches | | |
| | | |
| | | |
| | | Positive Stops | | |
| | | |
| | | The hydraulic cylinder accessory package includes an adjustable inline forward and retract positive stop as standard. Inline positive stops provide accurate stopping in the forward and retract direction. Since the reaction force of this positive stop is co-linear, induced by feed mechanism, the stop provides optimum positioning accuracy and repeatability. Adjustment of the stops is limited to approximately 1" to 3" on forward stroke and 1" on retract stroke. | | |
| | | |
| | | If the protrusion of the inline end plate positive stop beyond the base is unwanted, an inline recessed positive stop is available. The recessed stop is positioned between the rails and provides the same optimum positioning accuracy and repeatability as the end plate positive stop. Note: Positive Stops are available in Forward Position, Retract Position, and Bi-Directional limit control configuratations. Consult factory for details. | | |
| | | |
| | | In-line Recessed Mounted Positive Stop (Available with DSR drive option only) | | |
| | | |
| | | 19 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | |
