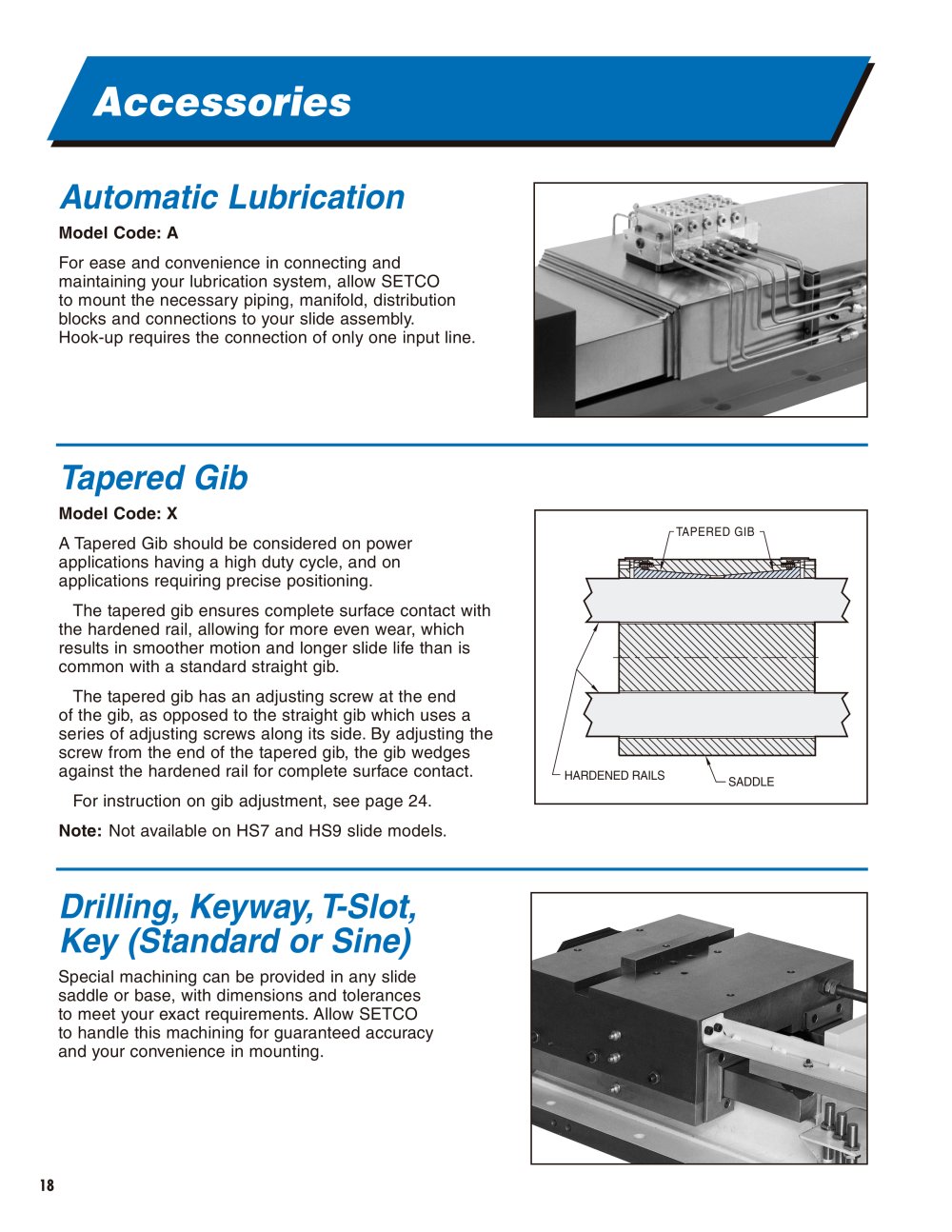

Accessories
Model Code:A For ease and convenience in connecting and maintaining your lubrication system, allow SETCO to mount the necessary piping, manifold, distribution
blocks and connections to your slide assembly.
Hook-up requires the connection of only one input line.
Tapered Gib
Model Code:X
TAPERED GIB A Tapered Gib should be considered on powerapplications having a high duty cycle, and on applications requiring precise positioning.The tapered gib ensures complete surface contact withthe hardened rail, allowing for more even wear, which
results in smoother motion and longer slide life than is
common with a standard straight gib.The tapered gib has an adjusting screw at the end of the gib, as opposed to the straight gib which uses a
series of adjusting screws along its side.By adjusting the
screw from the end of the tapered gib, the gib wedges
against the hardened rail for complete surface contact.For instruction on gib adjustment, see page 24. Note: Not available on HS7 and HS9 slide models.
SADDLEHARDENED RAILS Drilling,Keyway,T-Slot,Key (Standard or Sine)
Special machining can be provided in any slidesaddle or base, with dimensions and tolerances to meet your exact requirements.Allow SETCO to handle this machining for guaranteed accuracy
and your convenience in mounting.
18
