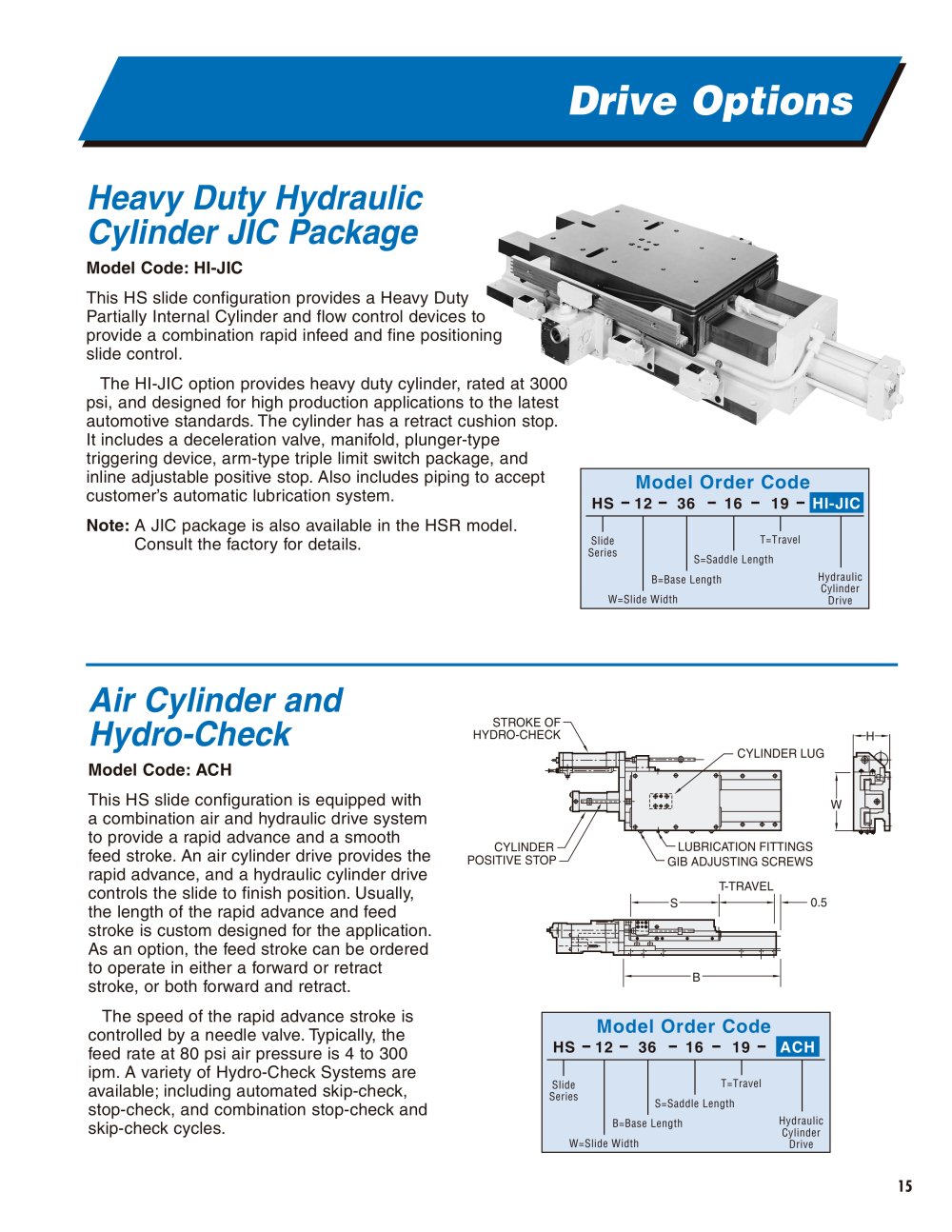

rive Option

Heavy Duty Hydraulic cylinder manufacturer JIC Package

Model Code: HI-JIC

This HS slide configuration provides a Heavy Duty N Partially Internal Cylinder and flow control devices to provide a combination rapid infeed and fine positioning slide control.

The HI-JIC option provides heavy duty cylinder, rated at 3000 psi, and designed for high production applications to the latest automotive standards. The cylinder has a retract cushion stop. It includes a deceleration valve, manifold, plunger-type triggering device, arm-type triple industrial limit switch package, and inline adjustable positive stop. Also includes piping to accept customer's automatic lubrication system.

Note: A JIC package is also available in the HSR model. Consult the factory for details.

m m u m

Cylinder a

stroke of-hydro-check

Hydro-Check

cylinder lug

Model Code: ACH

This HS slide configuration is equipped with a combination air and hydraulic drive system to provide a rapid advance and a smooth feed stroke. An air cylinder drive provides the rapid advance, and a hydraulic cylinder drive controls the slide to finish position. Usually, the length of the rapid advance and feed stroke is custom designed for the application. As an option, the feed stroke can be ordered to operate in either a forward or retract stroke, or both forward and retract.

The speed of the rapid advance stroke is controlled by a needle valve. Typically, the feed rate at 80 psi air pressure is 4 to 300 ipm. A variety of Hydro-Check Systems are available; including automated skip-check, stop-check, and combination stop-check and skip-check cycles.

lubrication fittings gib adjusting screws

cylinder positive stop

t-travel


	h-^S—1-1


		--b--

■0.5

Model Order Code

HS - 12 - 36 - 16 - 19 -

ACH

T=Travel

Slide

Serie

S=Saddle Length B=Base Length W=Slide Width

Hydraulic Cylinder Drive
