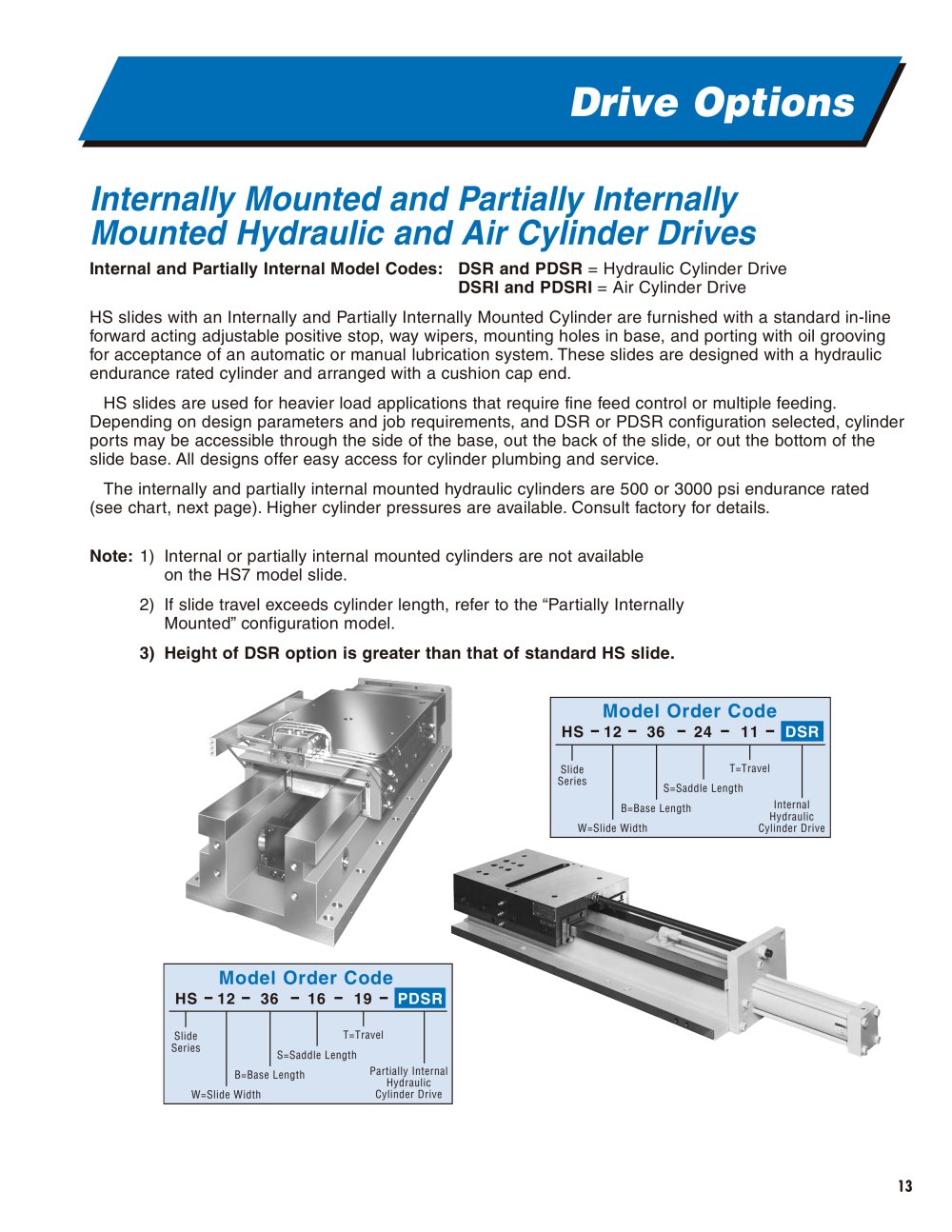

internally Mounted and Partially internally Mounted Hydraulic and Air cylinder Drives internal and Partially Internal Model Codes: DSR and PDSR = Hydraulic Cylinder Drive DSRI and PDSRI = Air Cylinder Drive HS slides with an Internally and Partially Internally Mounted Cylinder are furnished with a standard in-line forward acting adjustable positive stop, way wipers, mounting holes in base, and porting with oil grooving for acceptance of an automatic or manual lubrication system. These slides are designed with a hydraulic endurance rated cylinder and arranged with a cushion cap end. HS slides are used for heavier load applications that require fine feed control or multiple feeding. Depending on design parameters and job requirements, and DSR or PDSR configuration selected, cylinder ports may be accessible through the side of the base, out the back of the slide, or out the bottom of the slide base. All designs offer easy access for cylinder plumbing and service. The internally and partially internal mounted industrial hydraulic cylinders are 500 or 3000 psi endurance rated (see chart, next page). Higher cylinder pressures are available. Consult factory for details. |
