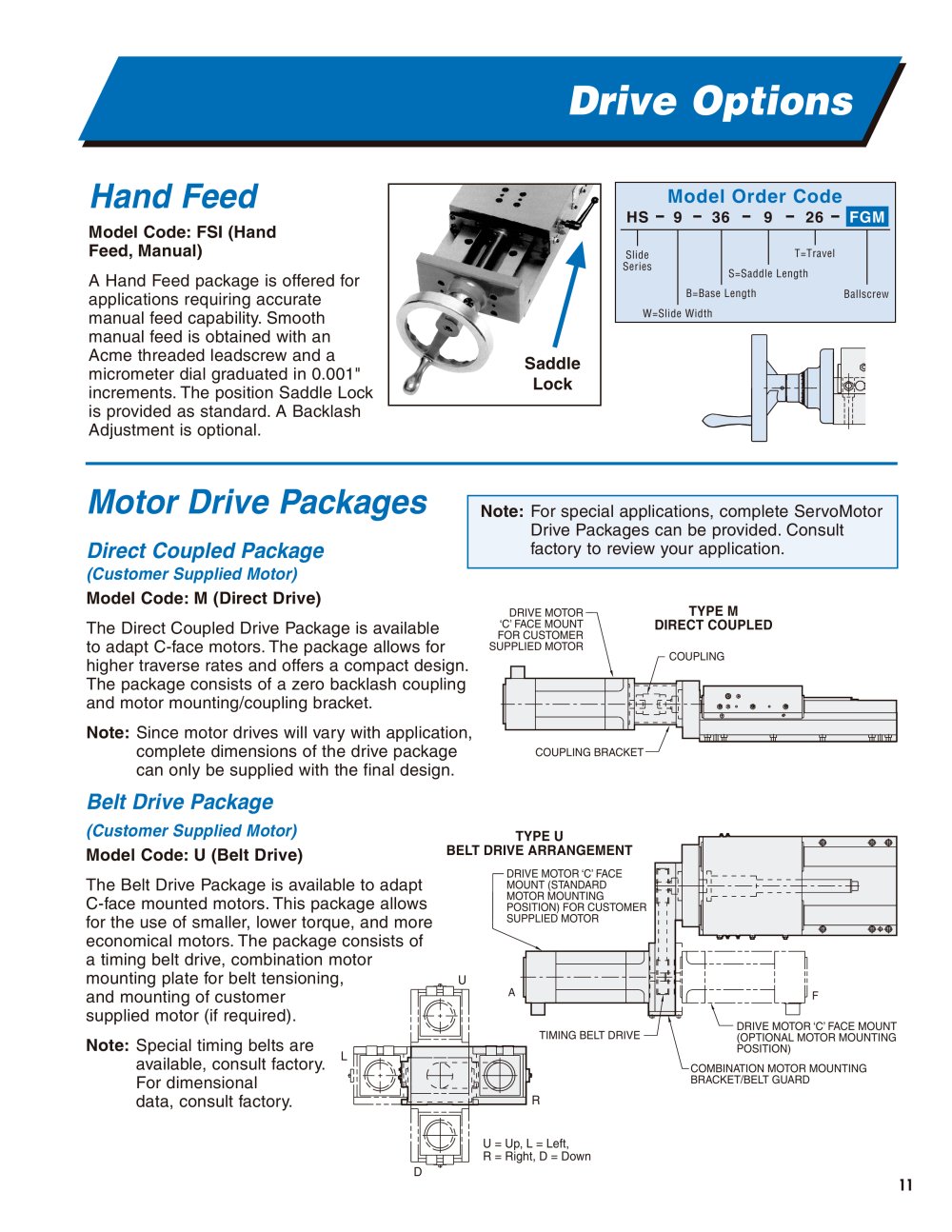

Drive Options

Hand Feed

Model Order Code

HS936926 FGM Model Code:FSI (Hand Feed,Manual)

â–²

SlideSeriesW=Slide WidthB=Base LengthS=Saddle LengthT=TravelBallscrew A Hand Feed package is offered forapplications requiring accurate manual feed capability.Smooth manual feed is obtained with an Acme threaded leadscrew and a micrometer dial graduated in 0.001" increments.The position Saddle Lock is provided as standard.A Backlash Adjustment is optional. SaddleLock

Motor Drive Packages

Note: For special applications, complete ServoMotorDrive Packages can be provided.Consult factory to review your application.

Direct Coupled Package

(Customer Supplied Motor) Model Code:M (Direct Drive)
TYPE MDIRECT COUPLED The Direct Coupled Drive Package is available to adapt C-face motors.The package allows for higher traverse rates and offers a compact design. The package consists of a zero backlash coupling and motor mounting/coupling bracket. Note: Since motor drives will vary with application,complete dimensions of the drive package can only be supplied with the final design.
COUPLINGCOUPLING BRACKET DRIVE MOTOR‘C’ FACE MOUNT FOR CUSTOMERSUPPLIED MOTOR

Belt Drive Package

(Customer Supplied Motor) Note: Special timing belts are available, consult factory. For dimensional data, consult factory.
TYPE UBELT DRIVE ARRANGEMENT Model Code:U (Belt Drive)
DRIVE MOTOR ‘C’ FACE MOUNT (STANDARD MOTOR MOUNTING POSITION) FOR CUSTOMER SUPPLIED MOTOR The Belt Drive Package is available to adaptC-face mounted motors.This package allows for the use of smaller, lower torque, and more economical motors.The package consists of a timing belt drive, combination motor mounting plate for belt tensioning, and mounting of customer supplied motor (if required).
U U = Up, L = Left, R = Right, D = DownRDL ATIMING BELT DRIVE DRIVE MOTOR ‘C’ FACE MOUNT (OPTIONAL MOTOR MOUNTING POSITION)FCOMBINATION MOTOR MOUNTINGBRACKET/BELT GUARD 11
