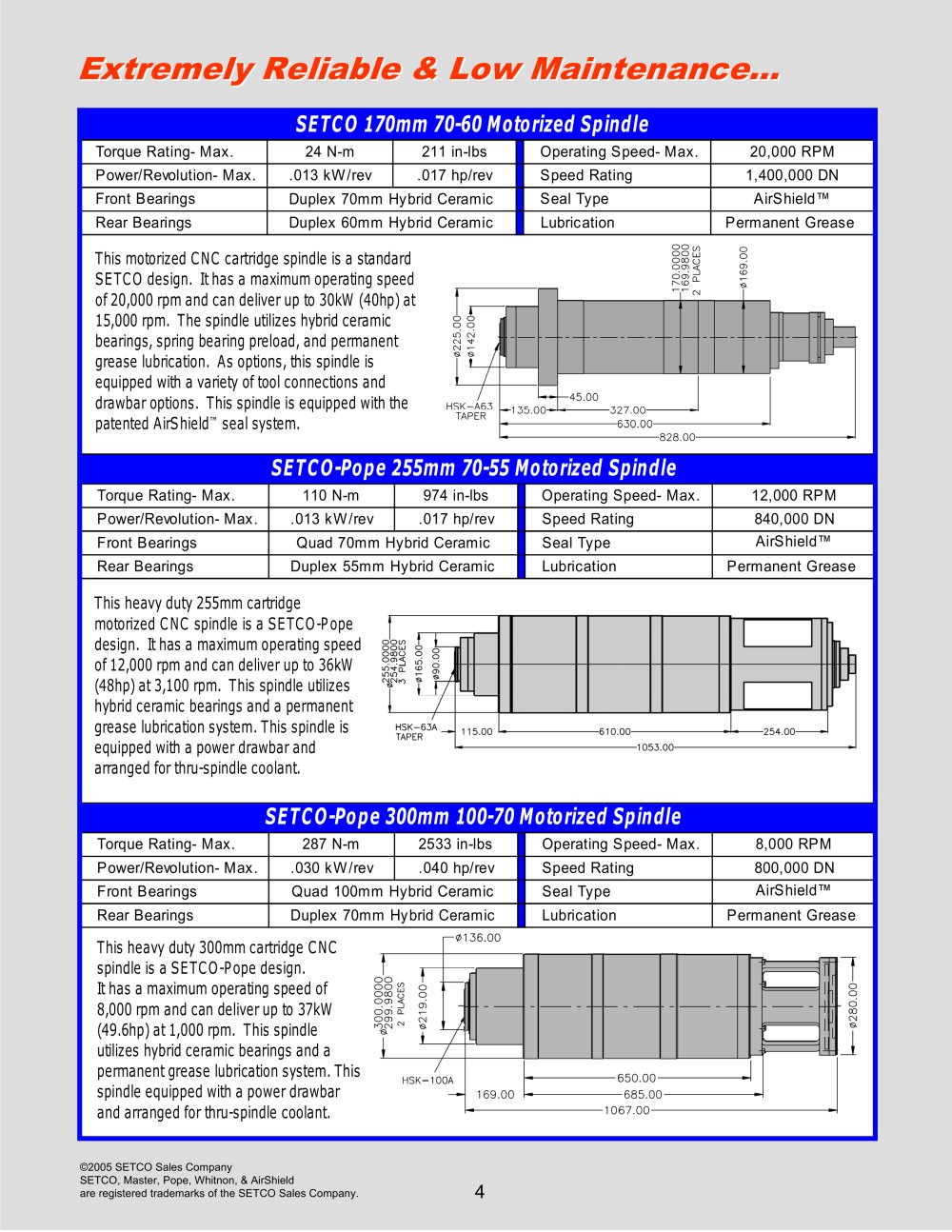

Extremely Reliable & Low Maintenance…Extremely Reliable & Low Maintenance…

SETCO 170mm 70-60 Motorized Spindle

Torque Rating- Max.24 N-m211 in-lbsOperating Speed- Max.20,000 RPMPower/Revolution- Max..013 kW/rev.017 hp/revSpeed Rating1,400,000 DN Front BearingsSeal TypeAirShield™ Rear BearingsLubricationPermanent Grease Duplex 60mm Hybrid Ceramic Duplex 70mm Hybrid Ceramic

This motorized CNC cartridge spindle is a standard SETCO design. It has a maximum operating speed of 20,000 rpm and can deliver up to 30kW (40hp) at 15,000 rpm. The spindle utilizes hybrid ceramic bearings, spring bearing preload, and permanent grease lubrication. As options, this spindle is equipped with a variety of tool connections and drawbar options. This spindle is equipped with the patented AirShield

™

industrial seal system.

SETCO-Pope 255mm 70-55 Motorized Spindle

Torque Rating- Max.110 N-m974 in-lbsOperating Speed- Max.12,000 RPMPower/Revolution- Max..013 kW/rev.017 hp/revSpeed Rating840,000 DN Front BearingsSeal TypeAirShield™Rear BearingsLubricationPermanent Grease Quad 70mm Hybrid CeramicDuplex 55mm Hybrid Ceramic

This heavy duty 255mm cartridge motorized CNC spindle is a SETCO-Pope design. It has a maximum operating speed of 12,000 rpm and can deliver up to 36kW (48hp) at 3,100 rpm. This spindle utilizes hybrid ceramic bearings and a permanent grease lubrication system. This spindle is equipped with a power drawbar and arranged for thru-spindle coolant.

SETCO-Pope 300mm 100-70 Motorized Spindle

Torque Rating- Max.287 N-m2533 in-lbsOperating Speed- Max.8,000 RPM Power/Revolution- Max..030 kW/rev.040 hp/revSpeed Rating800,000 DN Front BearingsSeal TypeAirShield™Rear BearingsLubricationPermanent Grease Duplex 70mm Hybrid Ceramic Quad 100mm Hybrid Ceramic

This heavy duty 300mm cartridge CNC spindle is a SETCO-Pope design. It has a maximum operating speed of 8,000 rpm and can deliver up to 37kW (49.6hp) at 1,000 rpm. This spindle utilizes hybrid ceramic bearings and a permanent grease lubrication system. This spindle equipped with a power drawbar and arranged for thru-spindle coolant.

4
