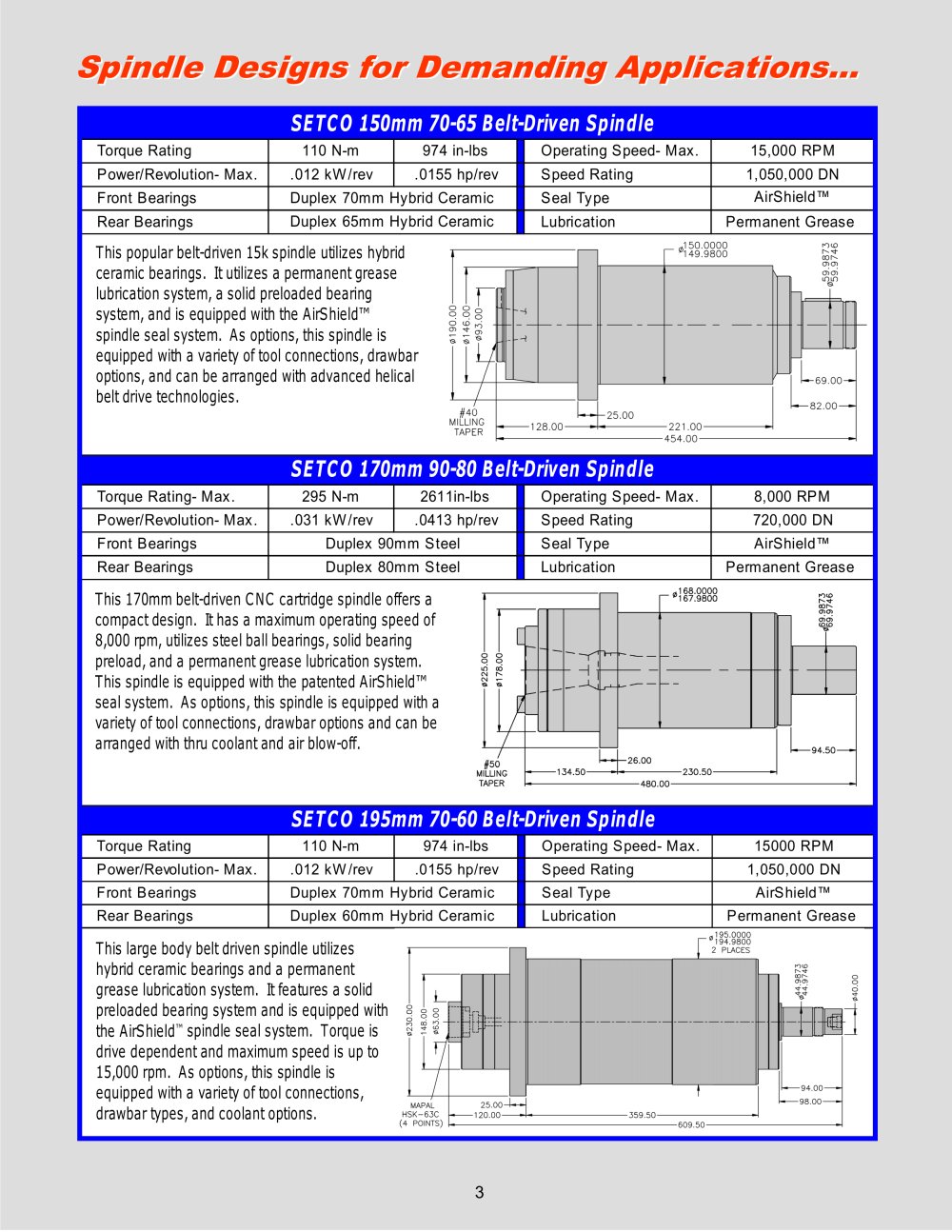

Spindle Designs for Demanding Applications…Spindle Designs for Demanding Applications… SETCO 150mm 70-65 Belt-Driven Spindle Torque Rating110 N-m974 in-lbsOperating Speed- Max.15,000 RPMPower/Revolution- Max..012 kW/rev.0155 hp/revSpeed Rating1,050,000 DNFront BearingsSeal TypeAirShield™Rear BearingsLubricationPermanent Grease Duplex 70mm Hybrid CeramicDuplex 65mm Hybrid Ceramic This popular belt-driven 15k spindle utilizes hybrid ceramic bearings. It utilizes a permanent grease lubrication system, a solid preloaded bearing system, and is equipped with the AirShield™
spindle seal system. As options, this spindle is equipped with a variety of tool connections, drawbar options, and can be arranged with advanced helical belt drive technologies. This large body belt driven spindle utilizes hybrid ceramic bearings and a permanent grease lubrication system. It features a solid preloaded bearing system and is equipped with the AirShield SETCO 170mm 90-80 Belt-Driven Spindle Torque Rating- Max.295 N-m2611in-lbsOperating Speed- Max.8,000 RPMPower/Revolution- Max..031 kW/rev.0413 hp/revSpeed Rating720,000 DNFront BearingsSeal TypeAirShield™Rear BearingsLubricationPermanent Grease Duplex 80mm Steel Duplex 90mm Steel This 170mm belt-driven CNC cartridge spindle offers a compact design. It has a maximum operating speed of 8,000 rpm, utilizes steel ball bearings, solid bearing preload, and a permanent grease lubrication system. This spindle is equipped with the patented AirShield™seal system. As options, this spindle is equipped with a variety of tool connections, drawbar options and can be arranged with thru coolant and air blow-off. SETCO 195mm 70-60 Belt-Driven Spindle Torque Rating110 N-m974 in-lbsOperating Speed- Max.15000 RPMPower/Revolution- Max..012 kW/rev.0155 hp/revSpeed Rating1,050,000 DNFront BearingsSeal TypeAirShield™Rear BearingsLubricationPermanent Grease Duplex 70mm Hybrid Ceramic
Duplex 60mm Hybrid Ceramic ™ spindle seal system. Torque is drive dependent and maximum speed is up to 15,000 rpm. As options, this spindle is equipped with a variety of tool connections, drawbar types, and coolant options. 3
|
