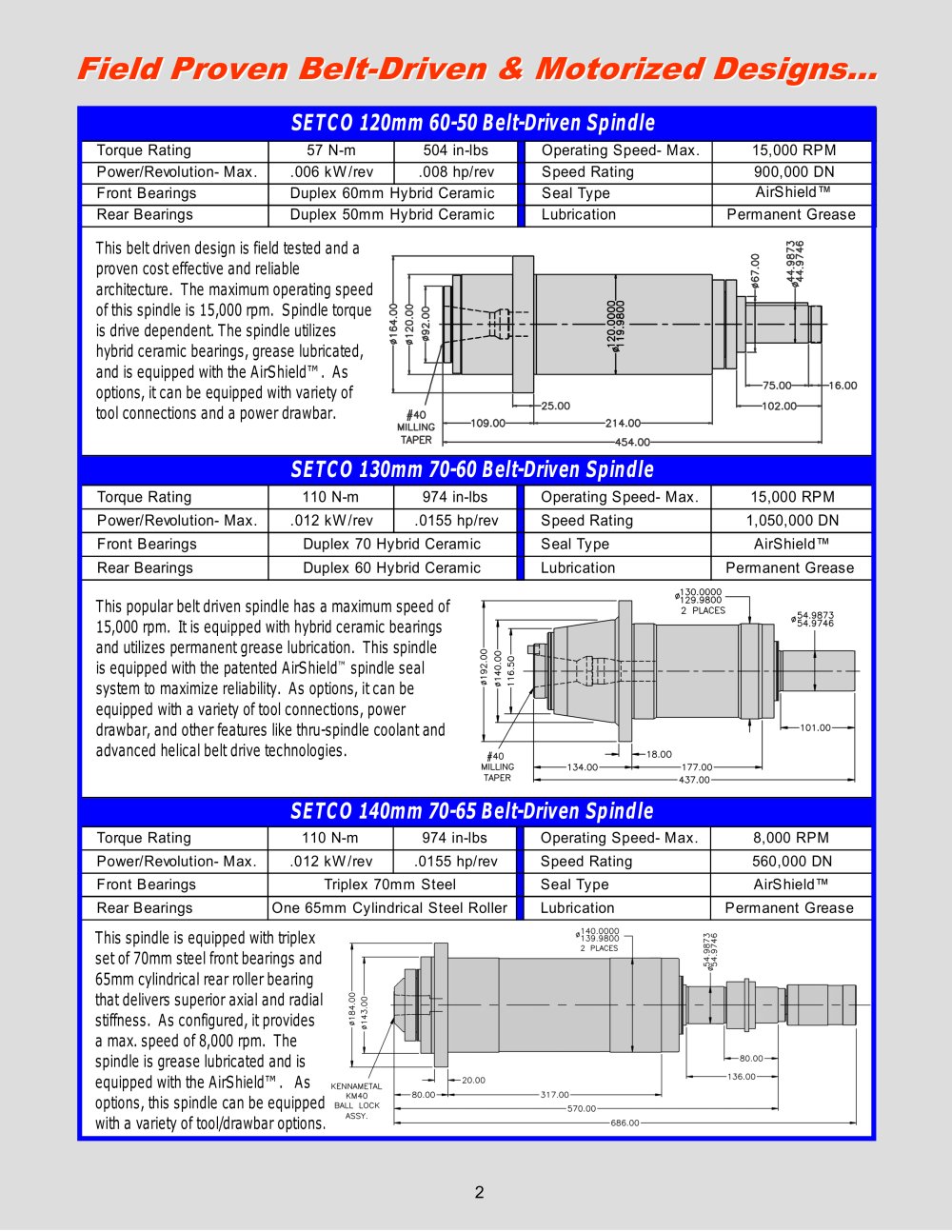

Field Proven Belt-Driven & Motorized Designs…Field Proven Belt-Driven & Motorized Designs…

SETCO 120mm 60-50 Belt-Driven Spindle

Torque Rating57 N-m504 in-lbsOperating Speed- Max.15,000 RPMPower/Revolution- Max..006 kW/rev.008 hp/revSpeed Rating900,000 DN Front BearingsSeal TypeAirShield™Rear BearingsLubricationPermanent Grease Duplex 50mm Hybrid Ceramic Duplex 60mm Hybrid Ceramic This belt driven design is field tested and a proven cost effective and reliable architecture. The maximum operating speed of this spindle is 15,000 rpm. Spindle torque is drive dependent. The spindle utilizes hybrid ceramic bearings, grease lubricated, and is equipped with the AirShield™. As options, it can be equipped with variety of tool connections and a power drawbar.

SETCO 130mm 70-60 Belt-Driven Spindle

Torque Rating110 N-m974 in-lbsOperating Speed- Max.15,000 RPMPower/Revolution- Max..012 kW/rev.0155 hp/revSpeed Rating1,050,000 DN Front BearingsSeal TypeAirShield™ Rear BearingsLubricationPermanent Grease Duplex 70 Hybrid CeramicDuplex 60 Hybrid Ceramic This popular belt driven spindle has a maximum speed of 15,000 rpm. It is equipped with hybrid ceramic bearings and utilizes permanent grease lubrication. This spindle is equipped with the patented AirShield
™ spindle seal system to maximize reliability. As options, it can be equipped with a variety of tool connections, power drawbar, and other features like thru-spindle coolant and advanced helical belt drive technologies. This spindle is equipped with triplex set of 70mm steel front bearings and 65mm cylindrical rear roller bearing manufacturer that delivers superior axial and radial stiffness. As configured, it provides a max. speed of 8,000 rpm. The spindle is grease lubricated and is equipped with the AirShield™. As options, this spindle can be equipped with a variety of tool/drawbar options.

SETCO 140mm 70-65 Belt-Driven Spindle

Torque Rating110 N-m974 in-lbsOperating Speed- Max.8,000 RPMPower/Revolution- Max..012 kW/rev.0155 hp/revSpeed Rating560,000 DNFront BearingsSeal TypeAirShield™Rear BearingsLubricationPermanent Grease One 65mm Cylindrical Steel Roller Triplex 70mm Steel 2
