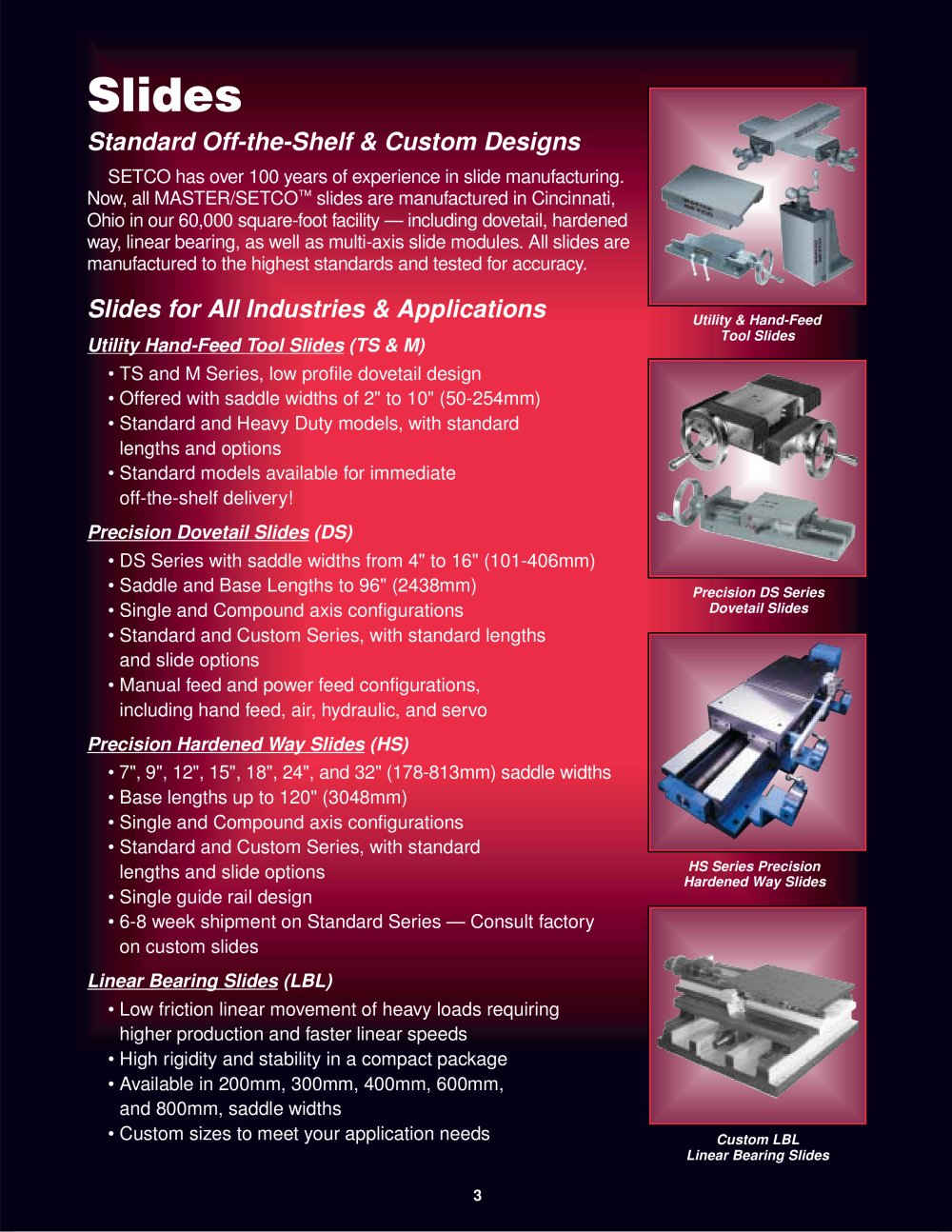

Slides

Standard Off-the-Shelf & Custom Designs

SETCO has over 100 years of experience in slide manufacturing.Now, all MASTER/SETCO
™ slides are manufactured in Cincinnati,Ohio in our 60,000 square-foot facility — including dovetail, hardened way, linear bearing, as well as multi-axis slide modules. All slides are manufactured to the highest standards and tested for accuracy.

Slides for All Industries & Applications

Utility & Hand-FeedTool Slides Utility Hand-Feed T ool Slides (TS & M) ? TS and M Series, low profile dovetail design? Offered with saddle widths of 2" to 10" (50-254mm) ? Standard and Heavy Duty models, with standard lengths and options ? Standard models available for immediate off-the-shelf delivery! Precision Do vetail Slides (DS) ? DS Series with saddle widths from 4" to 16" (101-406mm)? Saddle and Base Lengths to 96" (2438mm) ? Single and Compound axis configurations ? Standard and Custom Series, with standard lengths and slide options? Manual feed and power feed configurations, including hand feed, air, hydraulic, and servo
Precision DS SeriesDovetail Slides Precision Har dened W a y Slides (HS) ? 7", 9", 12", 15", 18", 24", and 32" (178-813mm) saddle widths? Base lengths up to 120" (3048mm) ? Single and Compound axis configurations ? Standard and Custom Series, with standard lengths and slide options? Single guide rail design ? 6-8 week shipment on Standard Series — Consult factory on custom slides Linear Bearing Slides
HS Series Precision Hardened Way Slides (LBL) ? Low friction linear movement of heavy loads requiring higher production and faster linear speeds? High rigidity and stability in a compact package ? Available in 200mm, 300mm, 400mm, 600mm, and 800mm, saddle widths? Custom sizes to meet your application needs
Custom LBL Linear Bearing Slides 3
