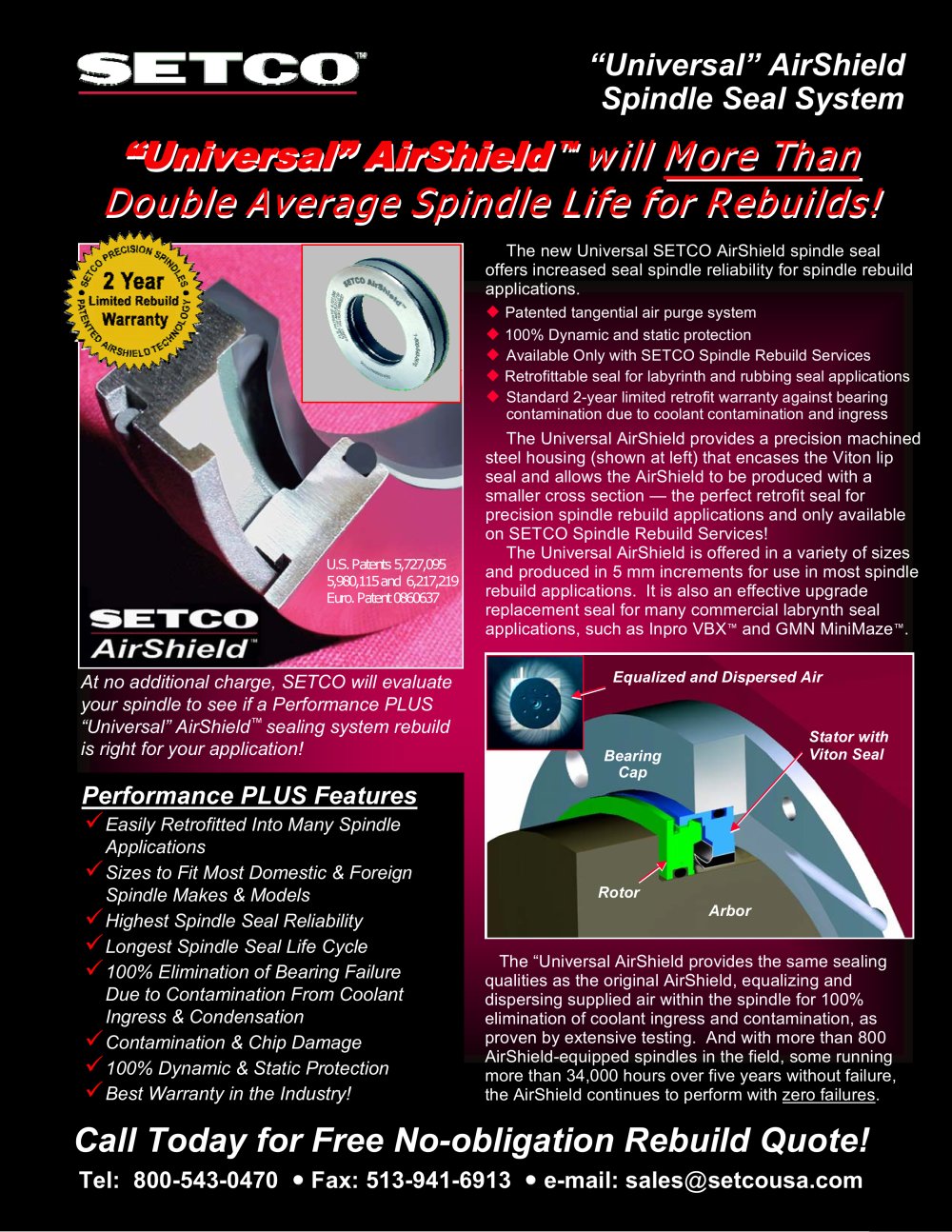

“Universal”AirShield “Universal”AirShield will More ThanDouble Average Spindle Life for Rebuilds will More ThanDouble Average Spindle Life for Rebuilds ! !

The new Universal SETCO AirShieldspindle seal offers increased seal spindle reliability for spindle rebuild applications. Patented tangential air purge system 100% Dynamic and static protection Available Only with SETCO Spindle Rebuild Services Retrofittableseal for labyrinth and rubbing seal applications Standard 2-year limited retrofit warranty against bearingcontamination due to coolant contamination and ingress The Universal AirShieldprovides a precision machined steel housing (shown at left) that encases the Vitonlip seal and allows the AirShieldto be produced with a smaller cross section —the perfect retrofit seal for precision spindle rebuild applications and only available on SETCO Spindle Rebuild Services!The Universal AirShieldis offered in a variety of sizes and produced in 5 mm increments for use in most spindle rebuild applications. It is also an effective upgrade replacement seal for many commercial labrynthseal applications, such as InproVBX U.S. Patents 5,727,0955,980,115 and 6,217,219Euro. Patent 0860637 ™ and GMN MiniMaze ™ . At no additional charge, SETCO will evaluate your spindle to see if a Performance PLUS “Universal”AirShield
Equalized and Dispersed Air ™ sealing system rebuild is right for your application!
Stator with VitonSeal ArborBearingCap

Performance PLUS Features

Easily Retrofitted Into Many Spindle Applications Sizes to Fit Most Domestic & Foreign Spindle Makes & Models
Rotor Highest Spindle Seal Reliability Longest Spindle Seal Life Cycle 100% Elimination of Bearing Failure Due to Contamination From Coolant Ingress & Condensation
The “Universal AirShieldprovides the same sealing qualities as the original AirShield, equalizing and dispersing supplied air within the spindle for 100% elimination of coolant ingress and contamination, as proven by extensive testing. And with more than 800 AirShield-equipped spindles in the field, some running more than 34,000 hours over five years without failure, the AirShieldcontinues to perform with zero failures Contamination & Chip Damage 100% Dynamic & Static Protection Best Warranty in the Industry!
.

Call Today for Free No-obligation Rebuild Quote!

Tel: 800-543-0470 Fax: 513-941-6913

e-mail: sales @ setcousa.com
