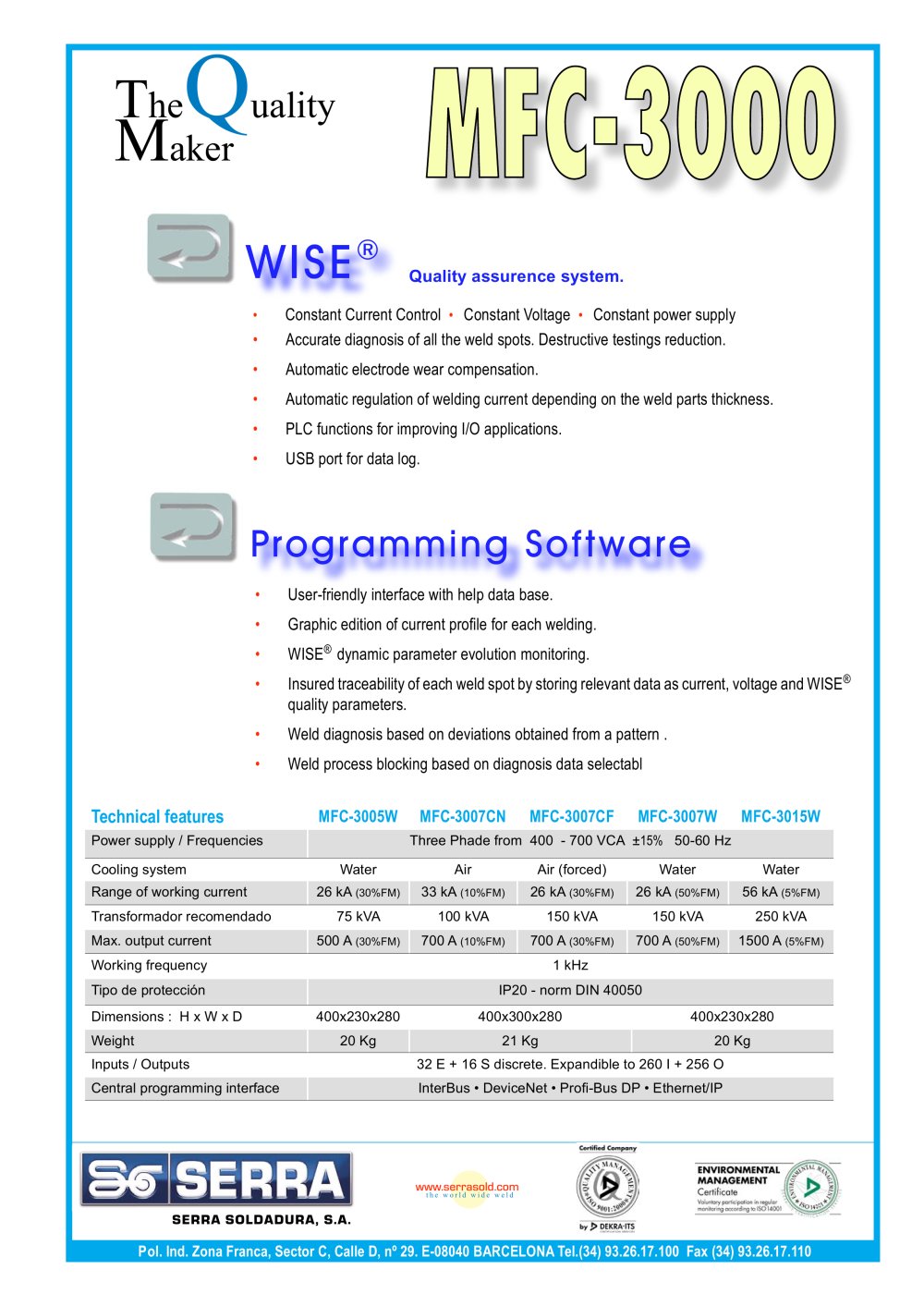

T

M

he aker

Q

uality WISE

®

Quality assurence system.
• Constant Current Control
• Constant Voltage
• Constant power supply • Accurate diagnosis of all the weld spots. Destructive testings reduction. • Automatic industrial electrode wear compensation. • Automatic regulation of welding current depending on the weld parts thickness. • PLC functions for improving I/O applications. • USB port for data log.

Programming Software

• User-friendly interface with help data base. • Graphic edition of current profile for each welding. • WISE
® dynamic parameter evolution monitoring. • Insured traceability of each weld spot by storing relevant data as current, voltage and WISE
® quality parameters. • Weld diagnosis based on deviations obtained from a pattern . • Weld process blocking based on diagnosis data selectabl

Technical features

MFC-3005WMFC-3007CNMFC-3007CFMFC-3007WMFC-3015W
Power supply / FrequenciesThree Phade from 400 - 700 VCA ±15% 50-60 HzCooling systemWaterAirAir (forced)WaterWaterRange of working current 26 kA (30%FM) 33 kA (10%FM) 26 kA (30%FM) 26 kA (50%FM) 56 kA (5%FM) Transformador recomendado75 kVA100 kVA150 kVA150 kVA250 kVAMax. output current500 A (30%FM) 700 A (10%FM) 700 A (30%FM) 700 A (50%FM) 1500 A (5%FM) Working frequency1 kHzTipo de protecciónIP20 - norm DIN 40050Dimensions : H x W x D400x230x280400x300x280400x230x280Weight20 Kg21 Kg20 KgInputs / Outputs32 E + 16 S discrete. Expandible to 260 I + 256 OCentral programming interface InterBus • DeviceNet • Profi-Bus DP • Ethernet/IP www.serrasold.com the world wide weld SERRA SOLDADURA, S.A. Pol. lnd. Zona Franca, Sector C, Calle D, nº 29. E-08040 BARCELONA Tel.(34) 93.26.17.100 Fax (34) 93.26.17.110
