Integrated transformer welding guns

Electrical DriveAvailabl e

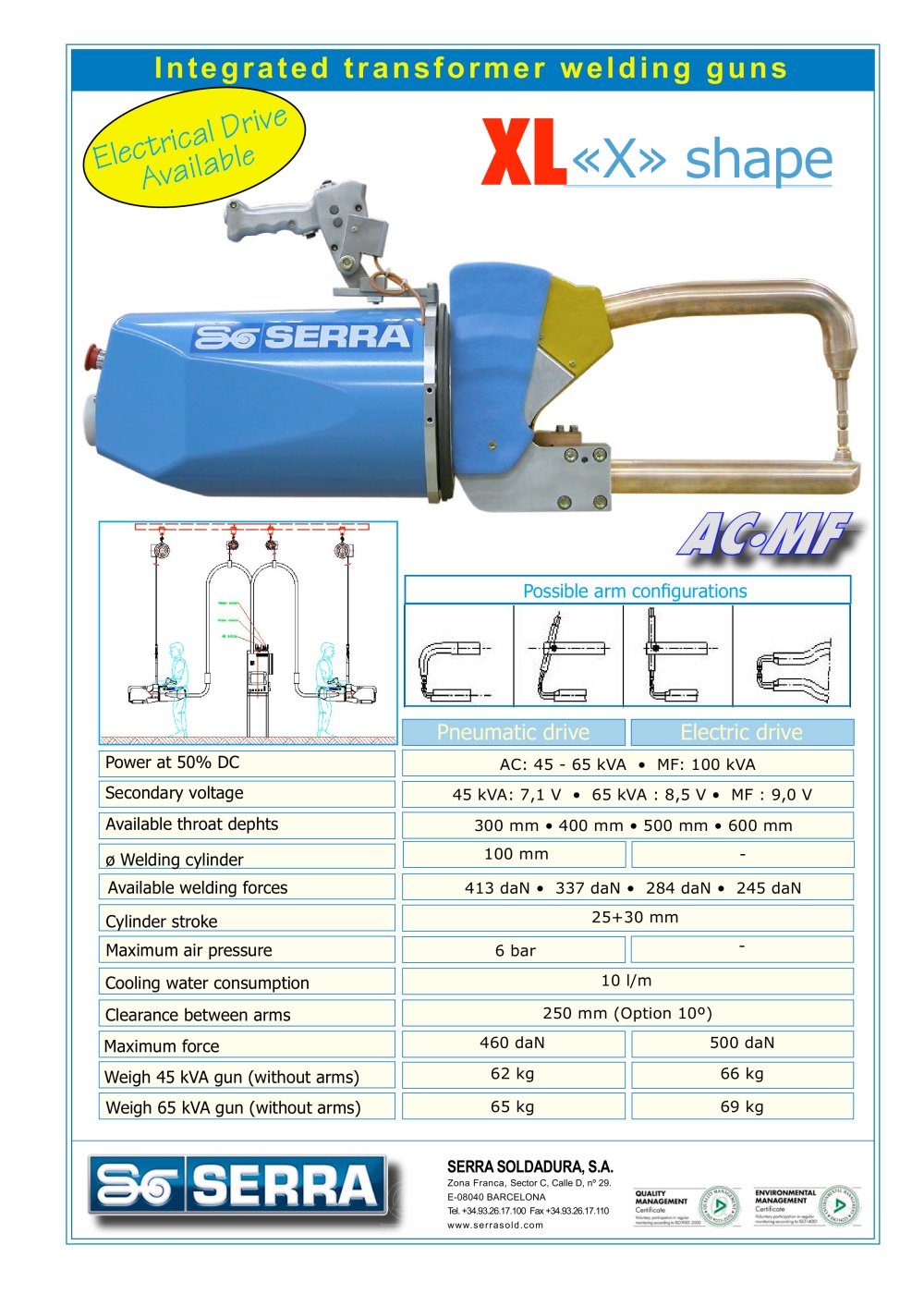

Integrated transformer welding guns XL - 5408 XL «X» shape AC•MF

Possible arm configurations

Pneumatic driveElectric drive

Power at 50% DCø Welding cylinderCylinder strokeMaximum air pressureCooling water consumptionClearance between armsMaximum force Secondary voltage

AC: 45 - 65 kVA • MF: 100 kVA100 mm 45 kVA: 7,1 V • 65 kVA : 8,5 V • MF : 9,0 V

Available throat dephts Available welding forces Weigh 45 kVA gun (without arms)Weigh 65 kVA gun (without arms)

300 mm • 400 mm • 500 mm • 600 mm - 413 daN • 337 daN • 284 daN • 245 daN 25+30 mm 6 bar -

250 mm (Option 10º)10 l/m

460 daN500 daN 62 kg66 kg 65 kg69 kg
