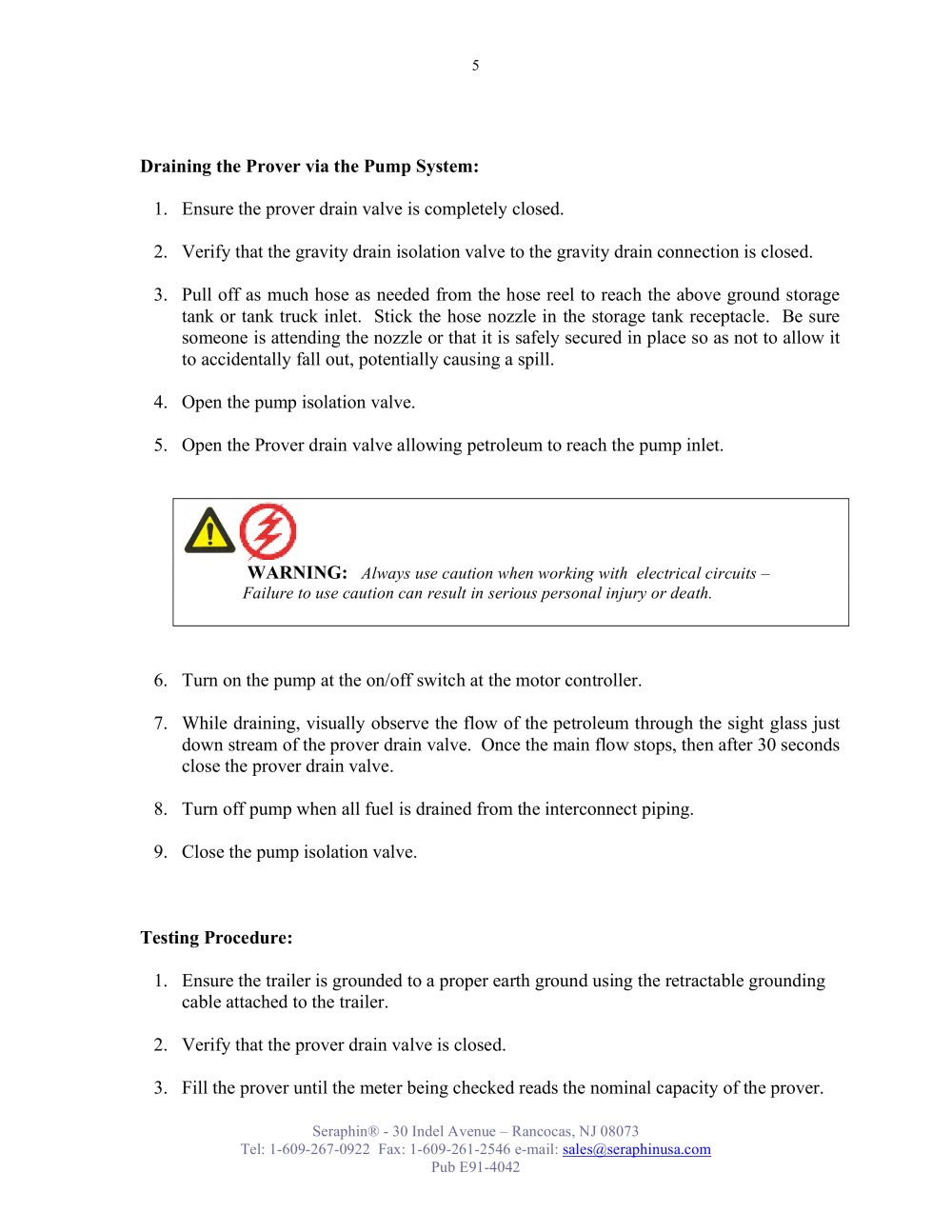

5
Draining the Prover via the Pump System:
1. Ensure the prover drain cock is completely closed.
2. Verify that the gravity drain isolation valve to the gravity drain connection is closed.
3. Pull off as much professional hose as needed from the pipe reel to reach the above ground storage tank or tank truck inlet. Stick the hose atomizer in the storage tank receptacle. Be sure someone is attending the nozzle or that it is safely secured in place so as not to allow it to accidentally fall out, potentially causing a spill.
4. Open the pump isolation valve.
5. Open the Prover drain valve allowing petroleum to reach the pump inlet.
WARNING: Always use caution when working with electrical circuits -Failure to use caution can result in serious personal injury or death.
6. Turn on the pump at the on/off switch at the motor regulator.
7. While draining, visually observe the flow of the petroleum through the sight glass just down stream of the prover drain valve. Once the main flow stops, then after 30 seconds close the prover drain valve.
8. Turn off pump when all fuel is drained from the interconnect piping.
9. Close the pump isolation valve.
Testing Procedure:
1. Ensure the professional trailer is grounded to a proper earth ground using the retractable grounding cable attached to the trailer.
2. Verify that the prover drain valve is closed.
3. Fill the prover until the meter being checked reads the nominal capacity of the prover.
Seraphin® - 30 Indel Avenue - Rancocas, NJ 08073 09-267-0922 Fax: 1-609-261-2546 e-mail: sales@seraphinusa.com Pub E91-4042
