| | | 1. Séraphin supplies a thermo-plastic 7-way RV Connector that has brass contacts to prevent corrosion. It is interchangeable with other 7-way RV Connectors specification. 12 volts, 30 | | |
| | | |
| | | amps | | |
| | | |

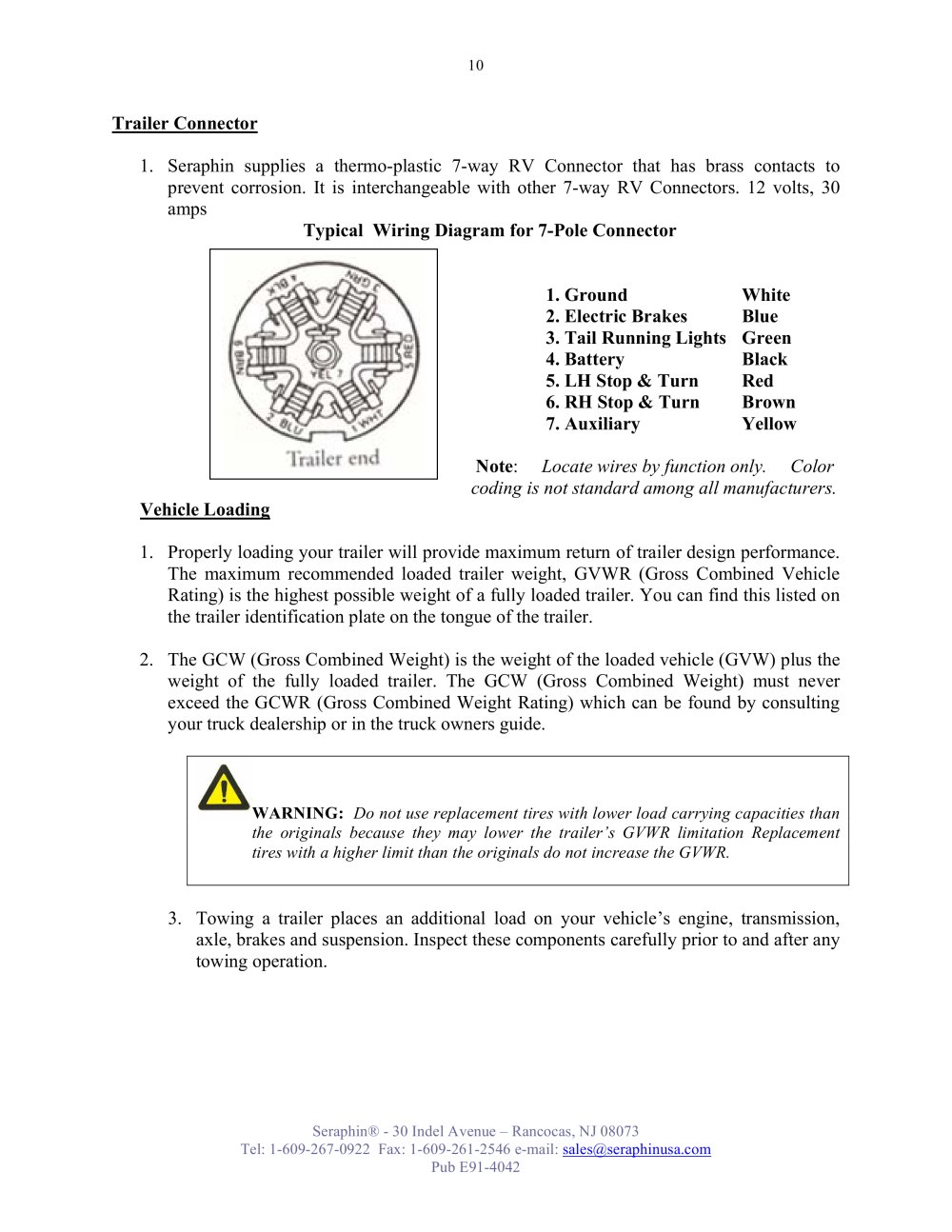

| | | Typical Wiring Diagram for 7-Pole Connector | | |
| | | |
| | | 1. Ground 3. Tail Running Lights 4. Battery 5. LH Stop & Turn 6. RH Stop & Turn 7. Auxiliary | | White Blue Green Black Red Brown Yellow | | |
| | | |
| | | |
| | | Note: Locate wires by function only. Color coding is not standard among all manufacturers. | | |
| | | |
| | | Vehicle Loading 1. Properly loading your trailer will provide maximum return of trailer design performance. The maximum recommended loaded trailer weight, GVWR (Gross Combined Vehicle Rating) is the highest possible weight of a fully loaded trailer. You can find this listed on the trailer identification plate on the tongue of the trailer. 2. The GCW (Gross Combined Weight) is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. The GCW (Gross Combined Weight) must never exceed the GCWR (Gross Combined Weight Rating) which can be found by consulting your truck dealership or in the truck owners guide. | | |
| | | |
| | | WARNING: Do not use replacement professional tires with lower load carrying capacities than the originals because they may lower the trailer's GVWR limitation Replacement tires with a higher limit than the originals do not increase the GVWR. | | |
| | | |
| | | 3. Towing a trailer places an additional load on your vehicle's engine, transmission, axle, brakes and suspension. Inspect these components carefully prior to and after any towing operation. | | |
| | | |
