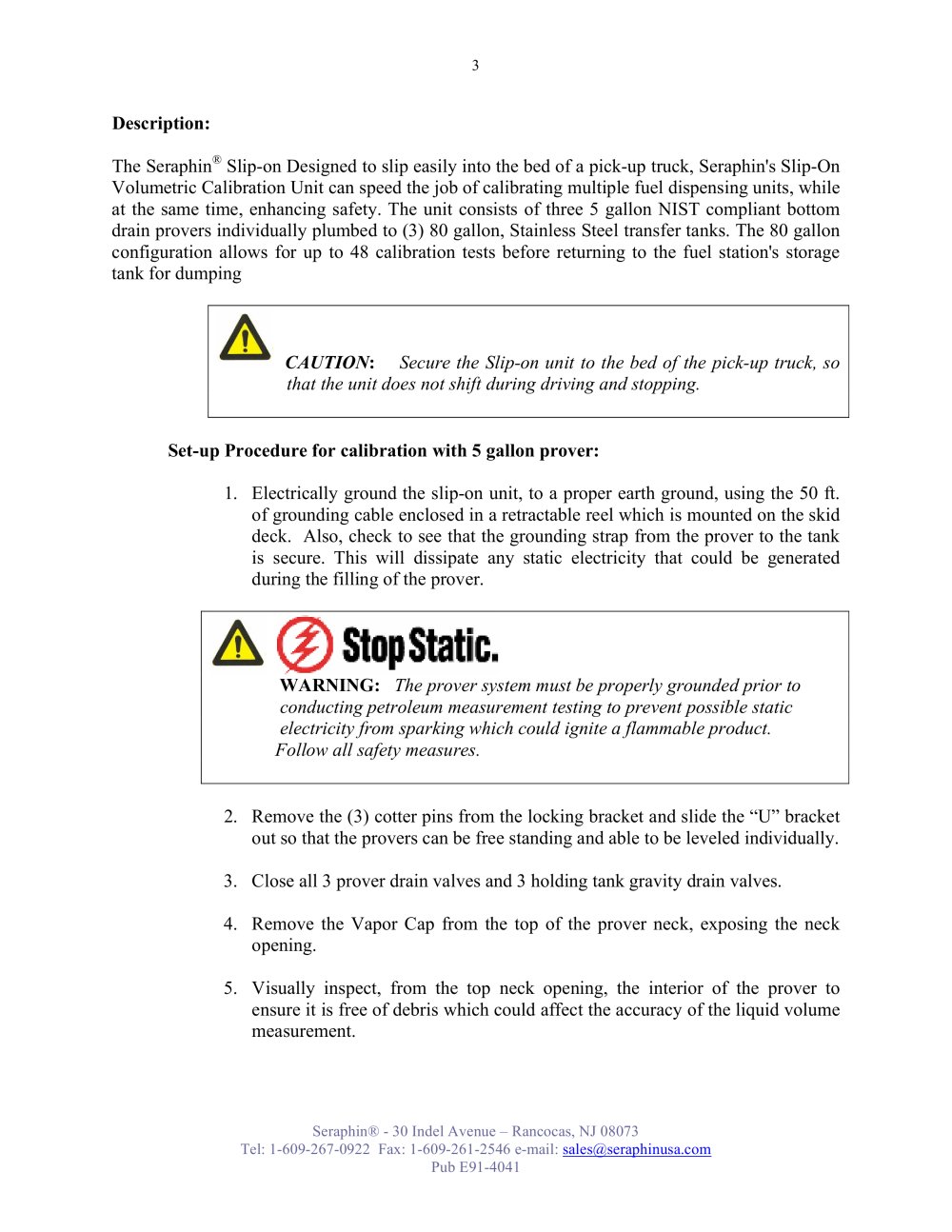

3 Description: The Seraphin
® Slip-on Designed to slip easily into the bed of a pick-up truck, Seraphin's Slip-On Volumetric Calibration Unit can speed the job of calibrating multiple fuel dispensing units, while at the same time, enhancing safety. The unit consists of three 5 gallon NIST compliant bottom drain provers individually plumbed to (3) 80 gallon, Stainless Steel transfer tanks. The 80 gallon configuration allows for up to 48 calibration tests before returning to the fuel station's industrial storage tank for dumping CAUTION : Secure the Slip-on unit to the bed of the pick-up truck, so that the unit does not shift during driving and stopping. Set-up Procedure for calibration with 5 gallon prover: 1.Electrically ground the slip-on unit, to a proper earth ground, using the 50 ft. of grounding cable enclosed in a retractable reel which is mounted on the skid deck. Also, check to see that the grounding strap from the prover to the tank is secure. This will dissipate any static electricity that could be generated during the filling of the prover. WARNING: The prover system must be properly grounded priorto conducting petroleum measurement testing to prevent possible static electricity from sparking which could ignite a flammable product. Follow all safety measures. 2.Remove the (3) cotter pins from the locking bracket and slide the “U” bracket out so that the provers can be free standing and able to be leveled individually. 3.Close all 3 prover drain cocks and 3 holding tank gravity drain valves. 4.Remove the Vapor Cap from the top of the prover neck, exposing the neck opening.5.Visually inspect, from the top neck opening, the interior of the prover to ensure it is free of debris which could affect the accuracy of the liquid volume measurement.
Seraphin® - 30 Indel Avenue – Rancocas, NJ 08073 Tel: 1-609-267-0922 Fax: 1-609-261-2546 e-mail: sales@seraphinusa.com Pub E91-4041
