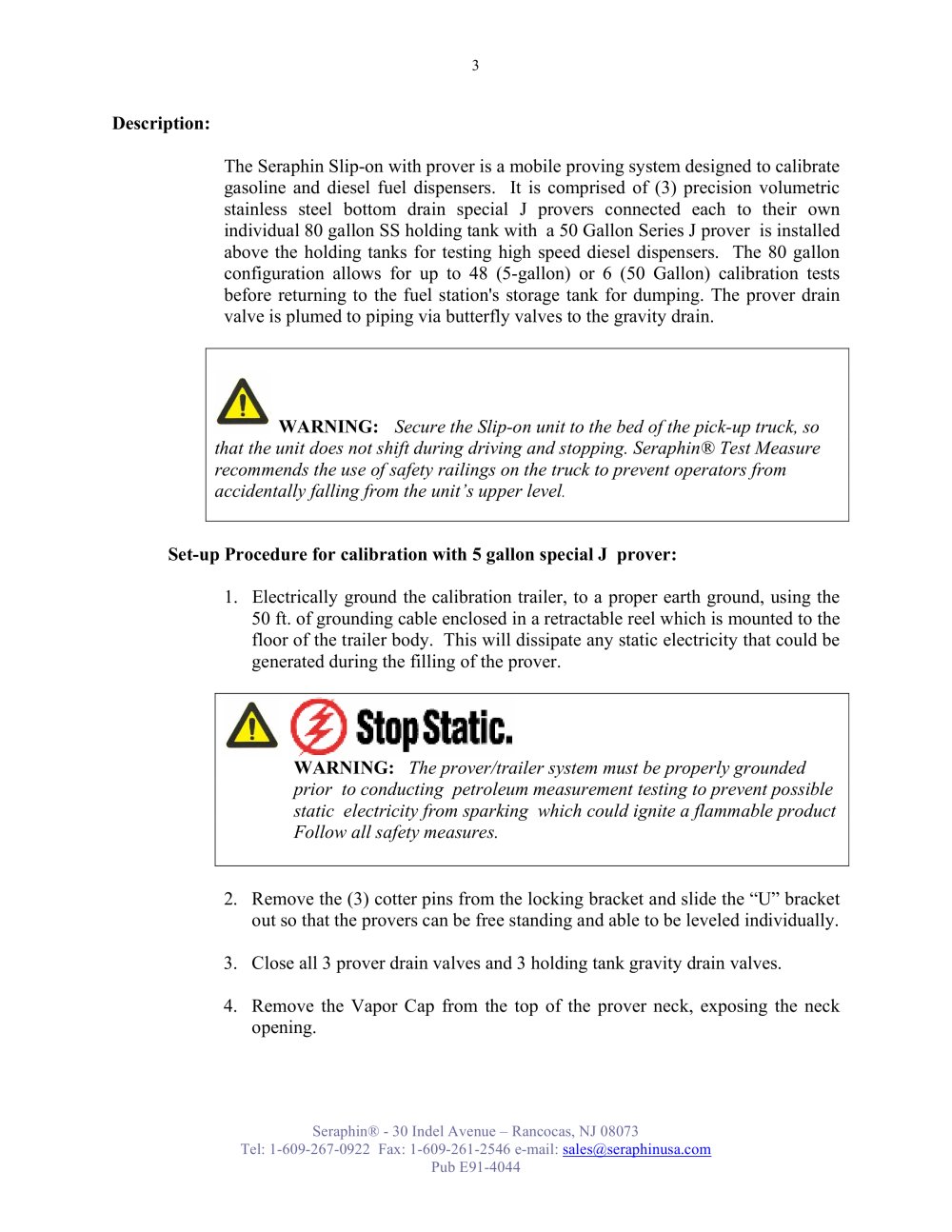

3 Description: The Seraphin Slip-on with prover is a mobile proving system designed to calibrate gasoline and diesel fuel dispensers. It is comprised of (3) precision volumetric stainless steel bottom drain special J provers connected each to their own individual 80 gallon SS holding tank witha 50 Gallon Series J prover is installed above the holding tanks for testing high speed diesel dispensers. The 80 gallon configuration allows for up to 48 (5-gallon) or 6 (50 Gallon) calibration tests before returning to the fuel station's manufacturer of storage tank for dumping. The prover drain valve is plumed to piping via industrial butterfly valves to the gravity drain. WARNING: Secure the Slip-on unit to the bed of the pick-up truck, so that the unit does not shift during driving and stopping.Seraphin® Test Measure recommends the use of safety railings on the truck to prevent operators from accidentally falling from the unit’s upper level
. Set-up Procedure for calibration with 5 gallon special J prover: 1.Electrically ground the calibration professional trailer, to a proper earth ground, using the 50 ft. of grounding cable enclosed in a retractable reel which is mounted to the floor of the trailer body. This will dissipate any static electricity that could be generated during the filling of the prover. WARNING: The prover/trailer system must be properly grounded prior to conducting petroleum measurement testing to prevent possible static electricity from sparking which could ignite a flammable product Follow all safety measures. 2.Remove the (3) cotter pins from the locking bracket and slide the “U” bracket out so that the provers can be free standing and able to be leveled individually. 3.Close all 3 prover drain cocks and 3 holding tank gravity drain valves. 4.Remove the Vapor Cap from the top of the prover neck, exposing the neck opening.
