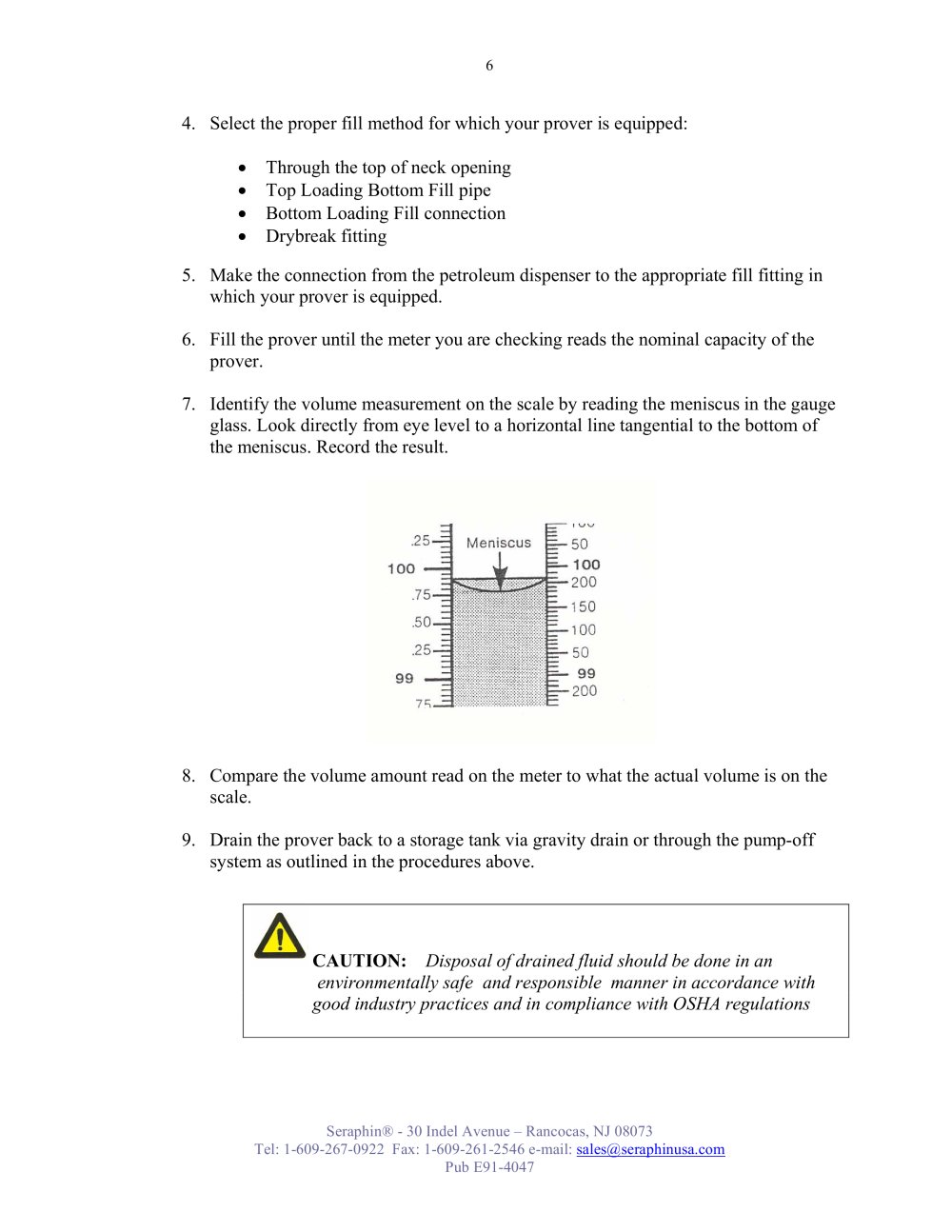

4. Select the proper fill method for which your prover is equipped:

• Through the top of neck opening

• Top Loading Bottom Fill pipe

• Bottom Loading Fill connection

• Drybreak professional fitting

5. Make the connection from the petroleum dispenser to the appropriate fill fitting in which your prover is equipped.

6. Fill the prover until the meter you are checking reads the nominal capacity of the

prover.

7. Identify the volume measurement on the scale by reading the meniscus in the gauge glass. Look directly from eye level to a horizontal line tangential to the bottom of the meniscus. Record the result.

8. Compare the volume amount read on the meter to what the actual volume is on the scale.

9. Drain the prover back to a archive tank via gravity drain or through the pump-off system as outlined in the procedures above.

CAUTION: Disposal of drained fluid should be done in an

environmentally safe and responsible manner in accordance with good industry practices and in compliance with OSHA regulations

Seraphin® - 30 Indel Avenue - Rancocas, NJ 08073 Tel: 1-609-267-0922 Fax: 1-609-261-2546 e-mail: sales@seraphinusa.com

Pub E91-4047
