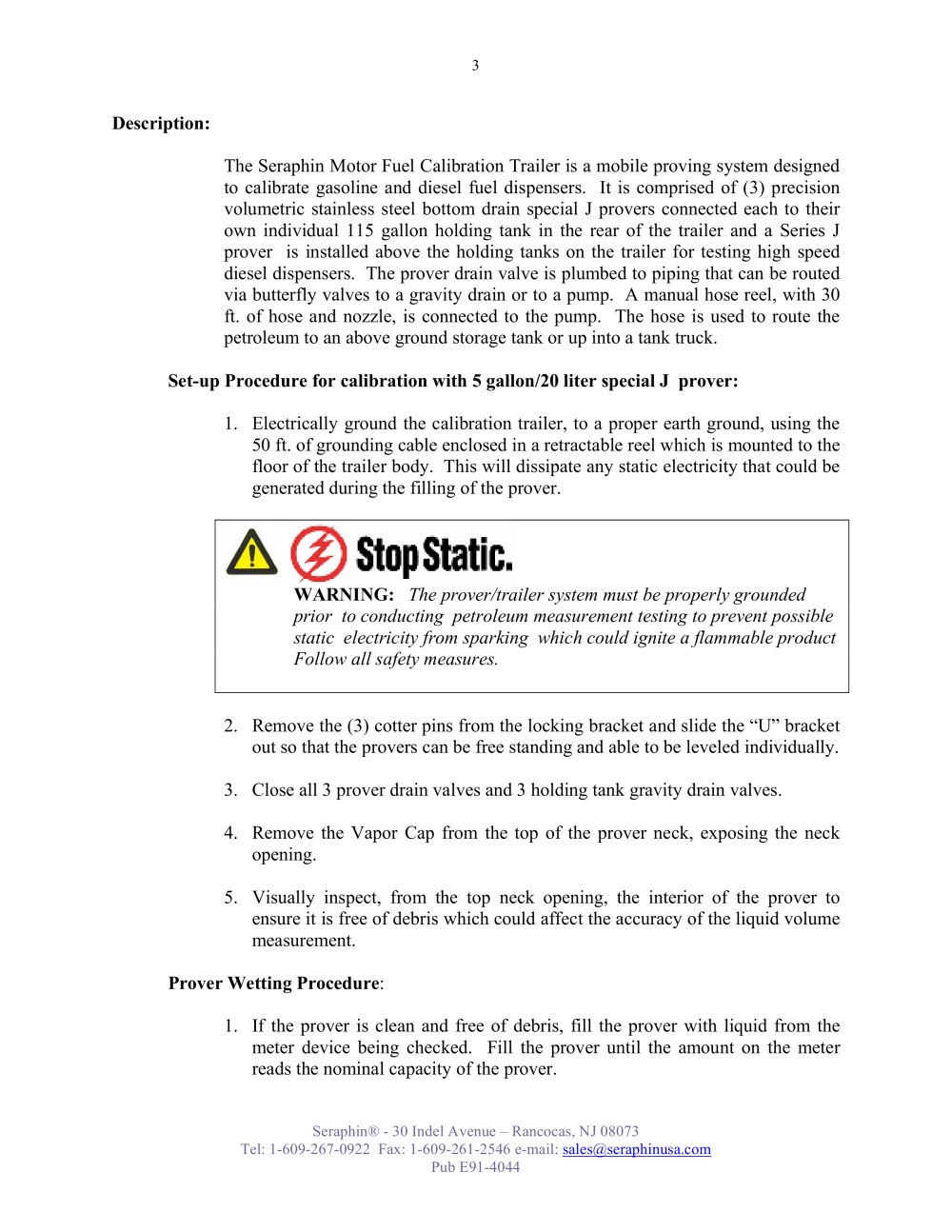

Description:

The Seraphin Motor Fuel Calibration Professional trailer is a mobile proving system designed to calibrate gasoline and diesel fuel dispensers. It is comprised of (3) precision volumetric stainless steel bottom drain special J provers connected each to their own individual 115 gallon holding tank in the rear of the trailer and a Series J prover is installed above the holding tanks on the trailer for testing high speed diesel dispensers. The prover drain valve is plumbed to piping that can be routed via butterfly valves suppliers to a gravity drain or to a pump. A manual hose reel manufacturer, with 30 ft. of professional hose and nozzle manufacturers, is connected to the pump. The hose is used to route the petroleum to an above ground storage tank or up into a tank truck.

Set-up Procedure for calibration with 5 gallon/20 liter special J prover:

1. Electrically ground the calibration trailer, to a proper earth ground, using the 50 ft. of grounding cable enclosed in a retractable reel which is mounted to the floor of the trailer body. This will dissipate any static electricity that could be generated during the filling of the prover.

WARNING: The prover/trailer system must be properly grounded prior to conducting petroleum measurement testing to prevent possible static electricity from sparking which could ignite a flammable product Follow all safety measures.

2. Remove the (3) cotter pins from the locking bracket and slide the "U" bracket out so that the provers can be free standing and able to be leveled individually.

3. Close all 3 prover drain cocks and 3 holding tank gravity drain valves.

4. Remove the Vapor Cap from the top of the prover neck, exposing the neck

opening.

5. Visually inspect, from the top neck opening, the interior of the prover to ensure it is free of debris which could affect the accuracy of the liquid volume measurement.

Prover Wetting Procedure:

1. If the prover is clean and free of debris, fill the prover with liquid from the meter device being checked. Fill the prover until the amount on the meter reads the nominal capacity of the prover.

Seraphin® - 30 Indel Avenue - Rancocas, NJ 08073 09-267-0922 Fax: 1-609-261-2546 e-mail: sales@seraphinusa.com Pub E91-4044
