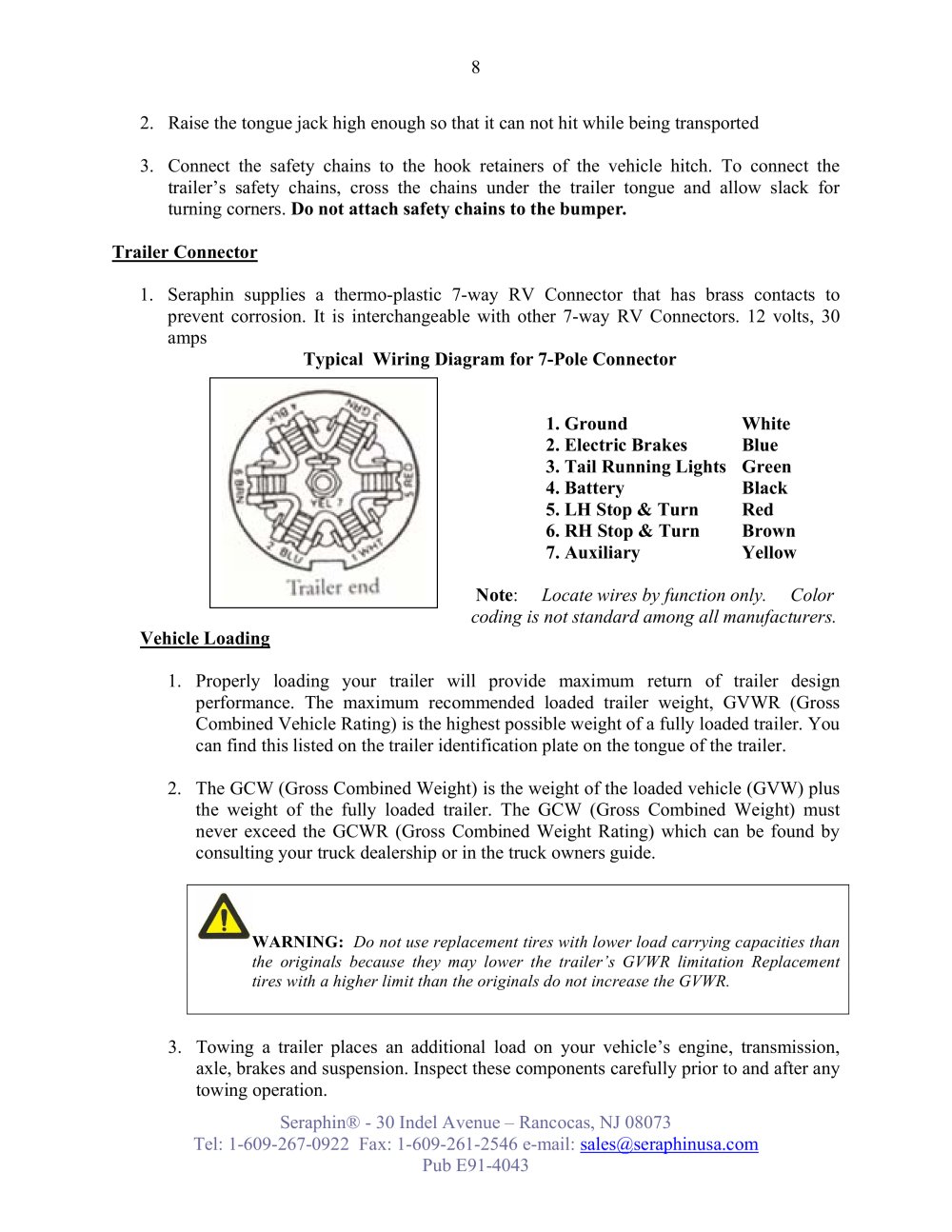

82.Raise the tongue jack high enough so that it can not hit while being transported 3.Connect the safety professional chains to the hook retainers of the vehicle hitch. To connect the professional trailer’s safety chains, cross the chains under the trailer tongue and allow slack for turning corners. Do not attach safety chains to the professional bumper . Trailer Connector 1.Seraphin supplies a thermo-plastic 7-way RV Connector that has brass contacts to prevent corrosion. It is interchangeable with other 7-way RV Connectors suppliers. 12 volts, 30 amps Typical Wiring Diagram for 7-Pole Connector : Locate wires by function only. Colorcoding is not standard among all manufacturers. 1. GroundWhite2. Electric BrakesBlue 3. Tail Running Lights Green 4. Battery Black 5. LH Stop & Turn Red 6. RH Stop & Turn Brown 7. AuxiliaryYellowNote Vehicle Loading 1.Properly loading your trailer will provide maximum return of trailer design performance. The maximum recommendedloaded trailer weight, GVWR (Gross Combined Vehicle Rating) is the highest possible weight of a fully loaded trailer. You can find this listed on the trailer identification plate on the tongue of the trailer.2.The GCW (Gross Combined Weight) is the weight of the loadedvehicle (GVW) plus the weight of the fully loaded trailer. The GCW (Gross Combined Weight) must never exceed the GCWR (Gross CombinedWeight Rating) which can be found by consulting your truck dealership or in the truck owners guide.
WARNING: Do not use replacement professional tires with lower load carrying capacities than the originals because they may lower the trailer’s GVWR limitation Replacement tires with a higher limit than the originals do not increase the GVWR. 3.Towing a trailer places an additional load on your vehicle’s engine, transmission,axle, brakes and suspension. Inspect these components carefully prior to and after any towing operation. Tel: 1-609-267-0922 Fax: 1-609-261-2546 e-mail:sales@seraphinusa.com Seraphin® - 30 Indel Avenue – Rancocas, NJ 08073 Pub E91-4043
