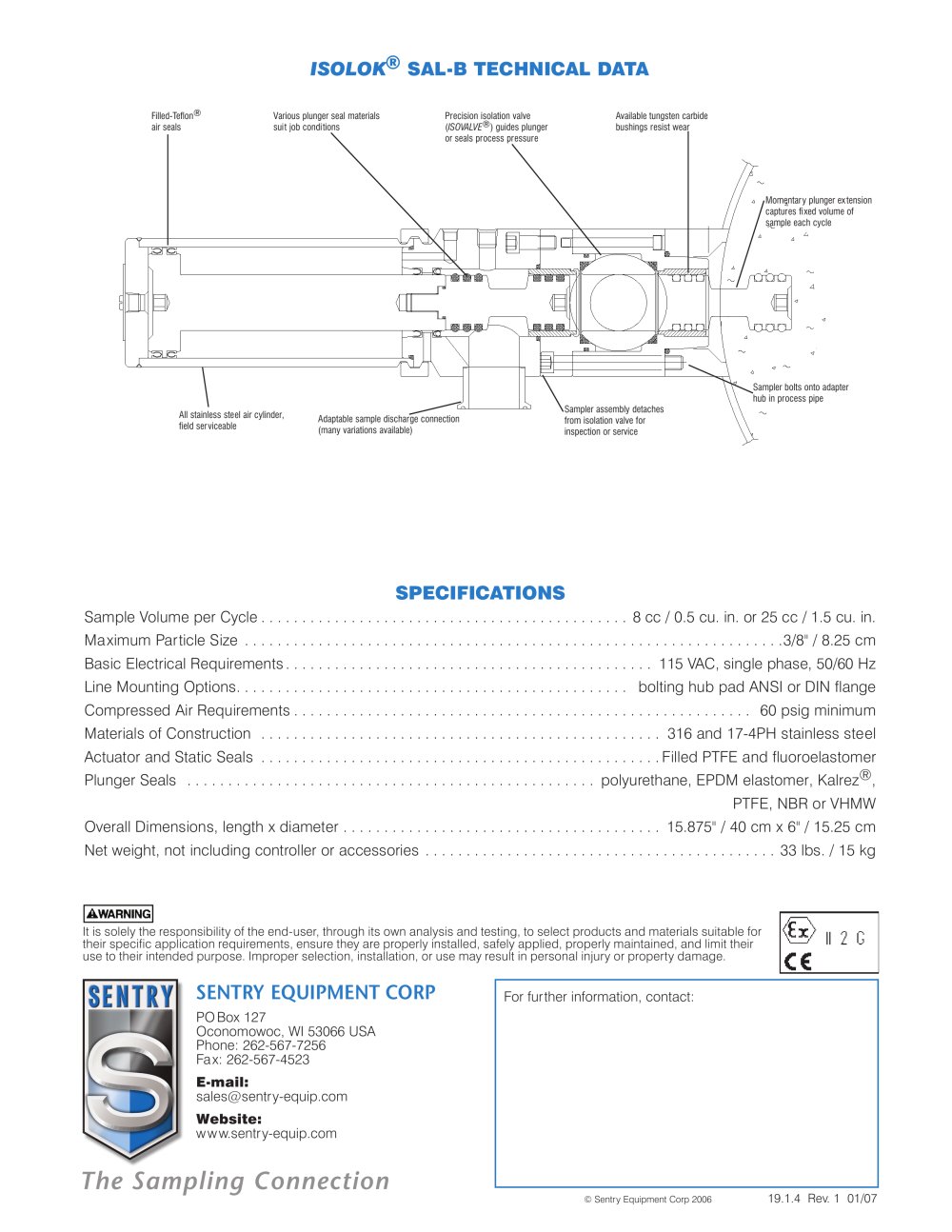

ISOLOK® SAL-B TECHNICAL DATA

Filled-Teflon® air seals

Available tungsten carbide bushings resist wear

Various plunger industrial seal materials suit job conditions

Precision isolation cock (ISOVALVE®) guides plunger or seals process pressure

Momentary plunger extension captures fixed volume of sample each cycle

Professional sampler supplier of bolts onto adapter hub in process pipe

All stainless steel air cylinder, field serviceable

Adaptable sample discharge connection (many variations available)

SPECIFICATIONS

Sample Volume per Cycle.............................................8 cc / 0.5 cu. in. or 25 cc / 1.5 cu. in.

Maximum Particle Size..................................................................3/8" / 8.25 cm

Basic Electrical Requirements............................................. 115 VAC, single phase, 50/60 Hz

Line Mounting Options................................................ bolting hub pad ANSI or DIN flange

Pneumatics Requirements........................................................ 60 psig minimum

Materials of Construction .................................................316 and 17-4PH stainless steel

Actuator specifications and Static seals.................................................Filled PTFE and fluoroelastomer

Plunger Seals ..................................................polyurethane, EPDM elastomer, Kalrez®,

PTFE, NBR or VHMW

Overall Dimensions, length x diameter....................................... 15.875" / 40 cm x 6" / 15.25 cm

Net weight, not including controller or accessories...........................................33 lbs. / 15 kg

Iawarning]

It Is solely the responsibility of the end-user, through Its own analysis and testing, to select products and materials suitable for their specific application requirements, ensure they are properly Installed, safely applied, properly maintained, and limit their use to their intended purpose. Improper selection, installation, or use may result in personal injury or property damage.

SENTRY EQUIPMENT CORP

PO Box 127

Oconomowoc, WI 53066 USA Phone: 262-567-7256 Fax: 262-567-4523

E-mail:

sales@sentry-equip.com Website:

www.sentry-equip.com

For further information, contact:

The Sampling Connection

19.1.4 Rev. 1 01/07
