DS-3 CONVEYOR BELT SAMPLER
With an overall height of less than 24 inches (61 cm), the low profile DS-3 sampler mounts over conveyors and allows for installation in low headroom areas. The sampler arm and drive components are mounted within a steel enclosure. The sample scoop rotates through a conic sweep path, scooping a sample from the belt, which is then pitched and poured into a large, stainless steel hopper that discharges to the side of the belt.The DS-3 unit mounts at any convenient point along the conveyor, using heavy, bridge-type supports (included). Controls and discharge can be assembled to accommodate access from the right or the left side of the conveyor. The standard scoop is approximately 3" (76 mm) wide and will produce from 12 cu. in. (196 cc) to 16 cu. in. (262 cc) of sample each cycle. The DS-3 sampler is available with an optional 4" (102 mm) wide sample collection scoop as well as smaller sample cutters.Arm speed is adjustable to suit belt speeds up to 900 FPM. The arm moves in the same direction as the belt (at a slightly faster speed) collecting a sample without disrupting the material on the conveyor belt.The arm drive system is a rugged worm gear reducer in combination with a variable speed motor drive which produces a wide range of flexibility in matching arm speed to the speed of the conveyor belt.Cycle rates are adjustable to sample at a maximum frequency of twice per minute. Hinged inspection doors are interlocked to prevent arm rotation if open A precycle warning horn signal for operator safety NEMA 4 enclosure for controls provides dust and weather protection
www.sentry-equip.com 18.1.18 Rev. 1 11/06

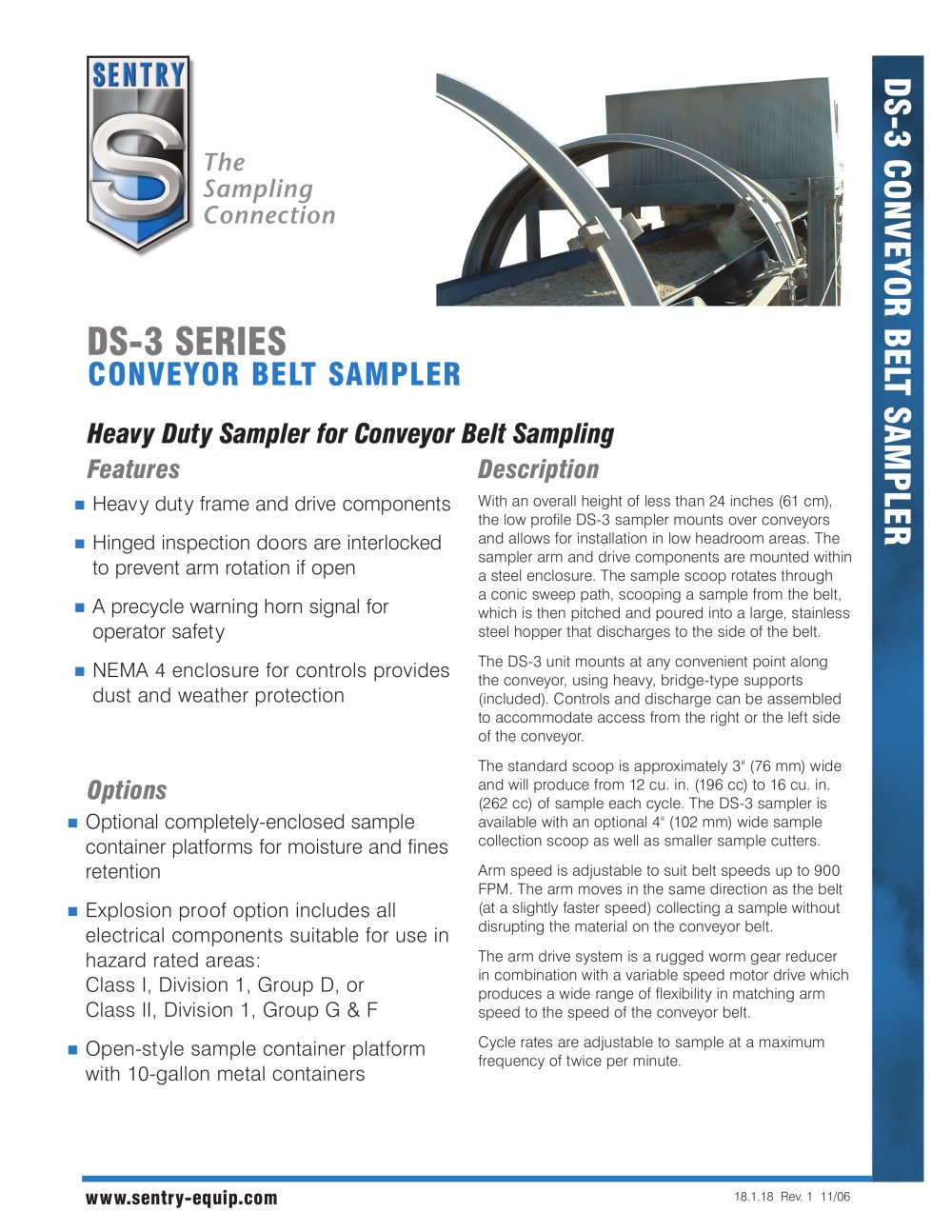

Model DS-3 Conveyor Belt Sampler Data Sheet 18.1.18 - 11839 DS-3 SERIES
CONVEYOR BELT SAMPLER
Heavy Duty Sampler for Conveyor Belt Sampling
DescriptionFeatures
Heavy duty frame and drive componentsWith an overall height of less than 24 inches (61 cm), the low profile DS-3 sampler mounts over conveyors and allows for installation in low headroom areas. The sampler arm and drive components are mounted within a steel enclosure. The sample scoop rotates through a conic sweep path, scooping a sample from the belt, which is then pitched and poured into a large, stainless steel hopper that discharges to the side of the belt.The DS-3 unit mounts at any convenient point along the conveyor, using heavy, bridge-type supports (included). Controls and discharge can be assembled to accommodate access from the right or the left side of the conveyor. The standard scoop is approximately 3" (76 mm) wide and will produce from 12 cu. in. (196 cc) to 16 cu. in. (262 cc) of sample each cycle. The DS-3 sampler is available with an optional 4" (102 mm) wide sample collection scoop as well as smaller sample cutters.Arm speed is adjustable to suit belt speeds up to 900 FPM. The arm moves in the same direction as the belt (at a slightly faster speed) collecting a sample without disrupting the material on the conveyor belt.The arm drive system is a rugged worm gear reducer in combination with a variable speed motor drive which produces a wide range of flexibility in matching arm speed to the speed of the conveyor belt.Cycle rates are adjustable to sample at a maximum frequency of twice per minute. Hinged inspection doors are interlocked to prevent arm rotation if open A precycle warning horn signal for operator safety NEMA 4 enclosure for controls provides dust and weather protection
Options
Optional completely-enclosed sample container platforms for moisture and fines retention Explosion proof option includes all electrical components suitable for use in hazard rated areas: Class I, Division 1, Group D, or Class II, Division 1, Group G & F Open-style sample container platform with 10-gallon metal containerswww.sentry-equip.com 18.1.18 Rev. 1 11/06
