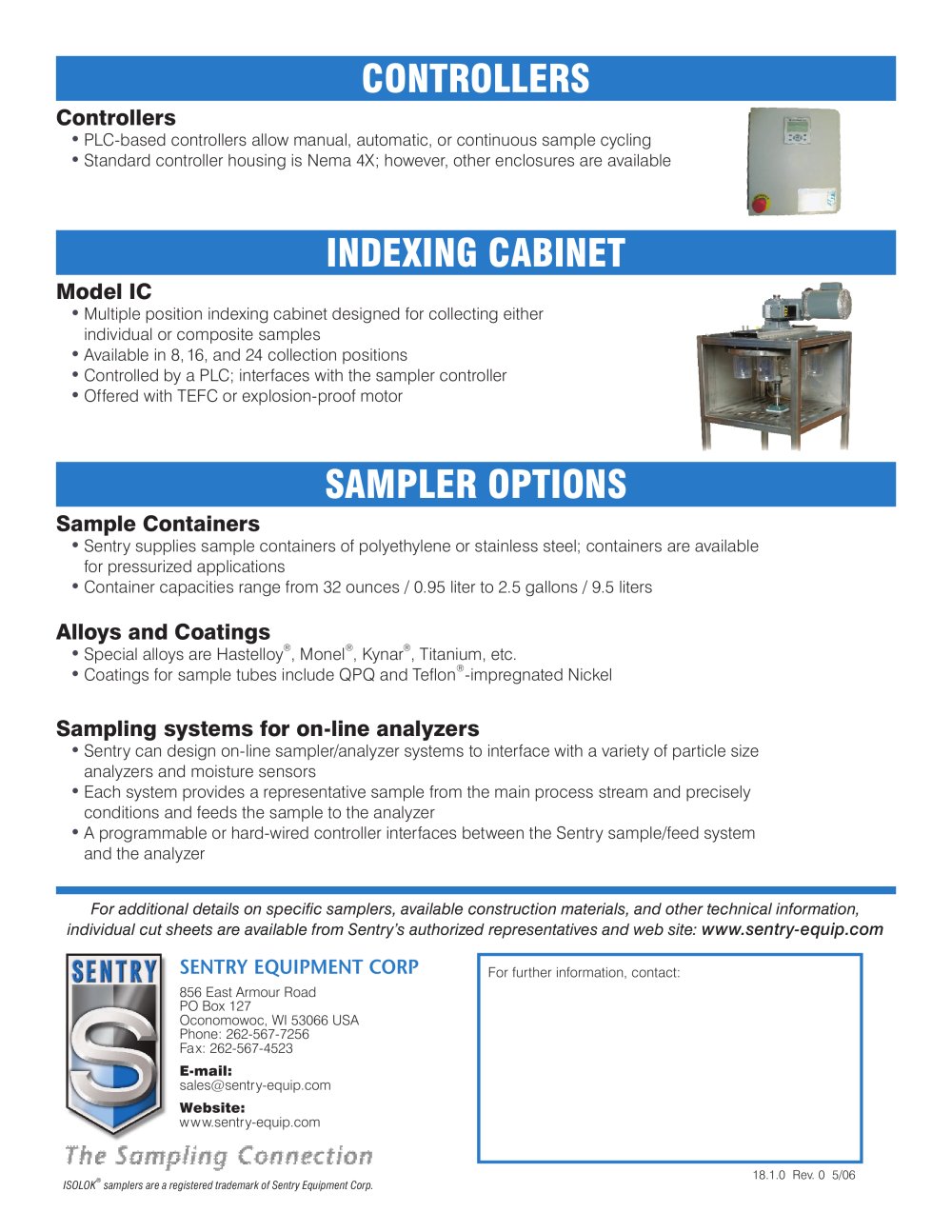

CONTROLLERS Controllers •• PLC-based controllers allow manual, automatic, or continuous sample cyclingStandard controller housing is Nema 4X; however, other enclosures are available INDEXING CABINET Model IC •••
• Multiple position indexing cabinet designed for collecting either individual or composite samples
Available in 8, 16, and 24 collection positions
Controlled by a PLC; interfaces with the sampler controller
Offered with TEFC or explosion-proof motor SAMPLER OPTIONS Sample Containers •• Sentry supplies sample containers of polyethylene or stainless steel; containers are available for pressurized applications
Container capacities range from 32 ounces / 0.95 liter to 2.5 gallons / 9.5 liters Alloys and Coatings •• Special alloys are Hastelloy ® , Monel ® , Kynar ® , Titanium, etc.Coatings for sample tubes include QPQ and Teflon ® -impregnated Nickel ••
• Sentry can design on-line sampler/analyzer systems to interface with a variety of particle size analyzers and moisture sensors
Each system provides a representative sample from the main process stream and precisely conditions and feeds the sample to the analyzer
A programmable or hard-wired controller interfaces between the Sentry sample/feed system and the analyzer For additional details on specific samplers, available construction materials, and other technical information, individual cut sheets are available from Sentry’s authorized representatives and web site: www.sentry-equip.com SENTRY EQUIPMENT CORP For further information , contact : 856 Eas t Armo u r Roa d P O B o x 12 7 Oconomowoc , WI 53066 US A Phone: 2 6 2- 56 7-72 56 Fax: 2 6 2- 56 7-4 5 2 3 E -m a il : sales@sentr y -equip.co m W ebs it e: www.sentr y -equip.co m ® 18.1.0 Rev. 0 5 / 06 ISOLOK samplers are a registered trademark of Sentry Equipment Corp.
|
