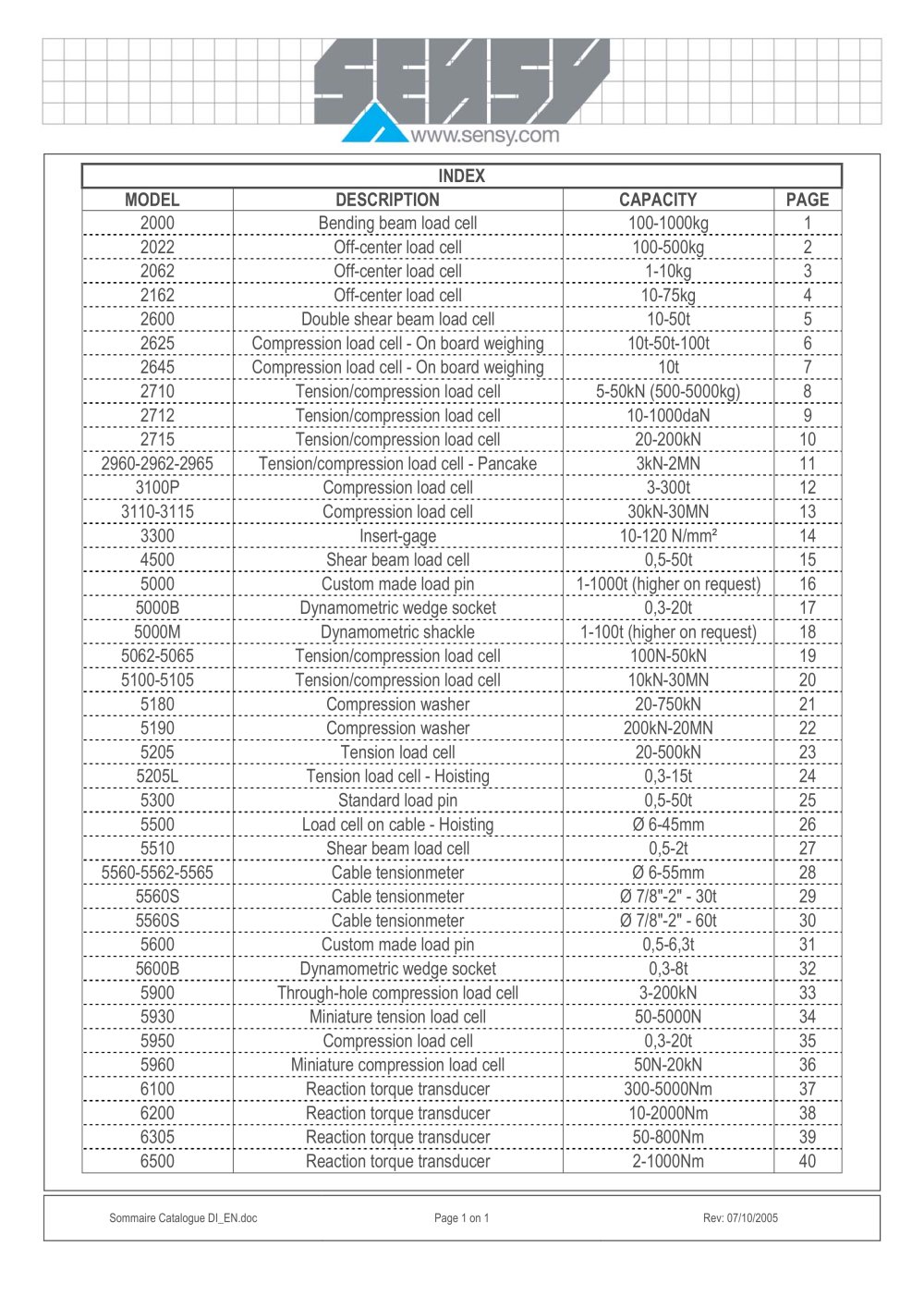

INDEX MODEL DESCRIPTION CAPACITY PAGE 2000 Bending beam load cell 100-1000kg 1 2022 Off-center load cell 100-500kg 2 2062 Off-center load cell 1-10kg 3 2162 Off-center load cell 10-75kg 4 2600 Double shear beam load cell 10-50t 5 2625 Compression load cell - On board weighing 10t-50t-100t 6 2645 Compression load cell - On board weighing 10t 7 2710 Tension/compression load cell 5-50kN (500-5000kg) 8 2712 Tension/compression load cell 10-1000daN 9 2715 Tension/compression load cell 20-200kN 10 2960-2962-2965 Tension/compression load cell - Pancake 3kN-2MN 11 3100P Compression load cell 3-300t 12 3110-3115 Compression load cell 30kN-30MN 13 3300 Insert-gage 10-120 N/mm² 14 4500 Shear beam load cell 0,5-50t 15 5000 Custom made load pin 1-1000t (higher on request) 16 5000B Dynamometric wedge socket 0,3-20t 17 5000M Dynamometric shackle 1-100t (higher on request) 18 5062-5065 Tension/compression load cell 100N-50kN 19 5100-5105 Tension/compression load cell 10kN-30MN 20 5180 Compression washer 20-750kN 21 5190 Compression washer 200kN-20MN 22 5205 Tension load cell 20-500kN 23 5205L Tension load cell - Hoisting 0,3-15t 24 5300 Standard load pin 0,5-50t 25 5500 Load cell on cable - Hoisting Ø 6-45mm 26 5510 Shear beam load cell 0,5-2t 27 5560-5562-5565 Cable tensionmeter Ø 6-55mm 28 5560S Cable tensionmeter Ø 7/8"-2" - 30t 29 5560S Cable tensionmeter Ø 7/8"-2" - 60t 30 5600 Custom made load pin 0,5-6,3t 31 5600B Dynamometric wedge socket 0,3-8t 32 5900 Through-hole compression load cell 3-200kN 33 5930 Miniature tension load cell 50-5000N 34 5950 Compression load cell 0,3-20t 35 5960 Miniature compression load cell 50N-20kN 36 6100 Reaction torque transducer 300-5000Nm 37 6200 Reaction torque transducer 10-2000Nm 38 6305 Reaction torque transducer 50-800Nm 39 6500 Reaction torque transducer 2-1000Nm 40
Sommaire Catalogue DI_EN.doc Page 1 on 1 Rev: 07/10/2005
