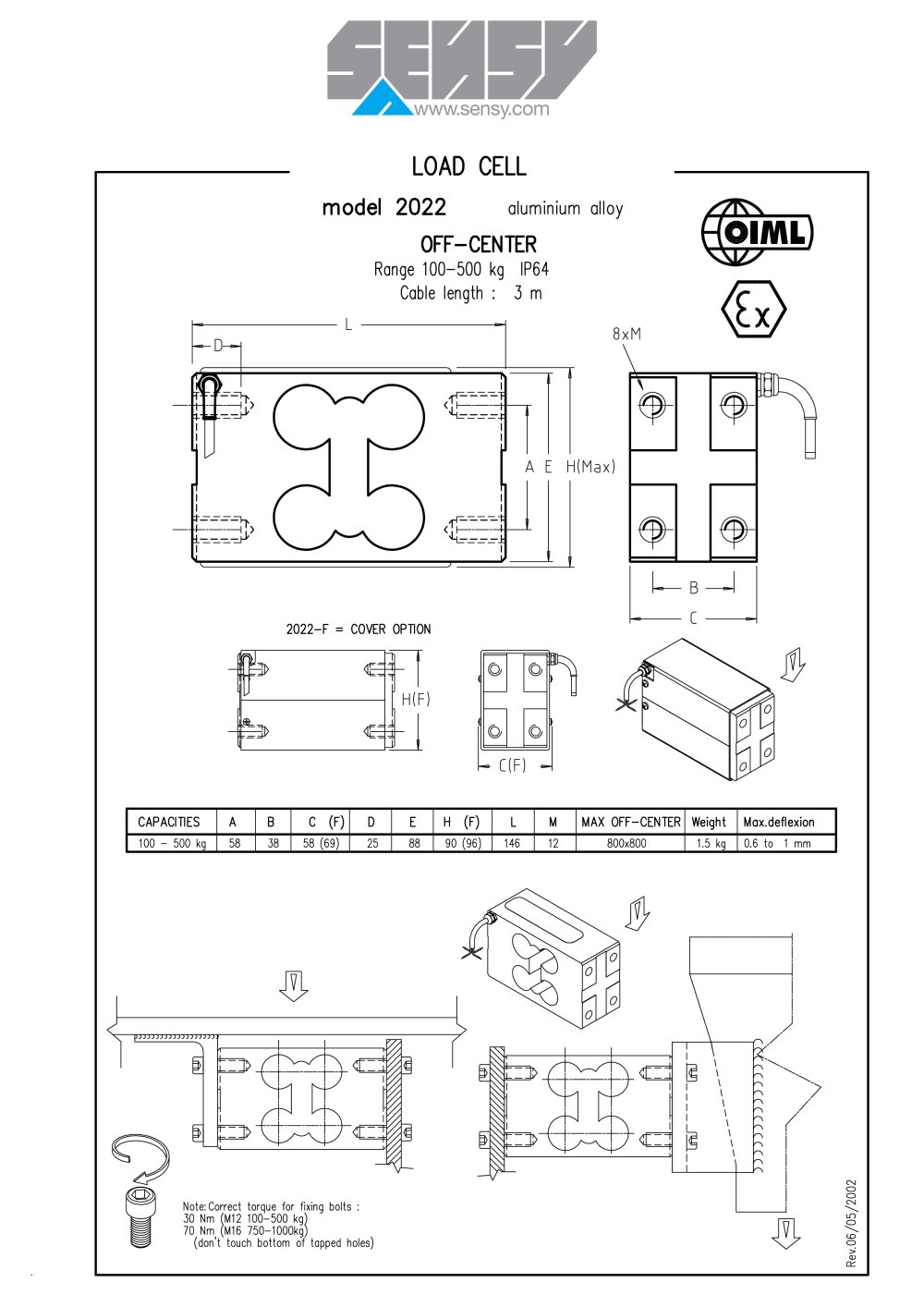

model 2022 aluminium alloy
OFF-CENTER
Range 100-500 kg IP64 Cable length : 3 m
ixM
1
A E H(Max)
2022-F = COVER OPTION
3»
H(F)
- =3>
€3i
k C(F) -J
CAPACITIES
A
B
C (F)
D
E
H (F)
L
M
MAX OFF-CENTER
Weight
Max.deflexion
100 - 500 kg
58
38
58 (69)
25
88
90 (96)
146
800x800
1.5 kg
0.6 to 1 mm
yiìlìlìlìììlìlìlìyj
II.
Note: Correct torque for fixing bolts : 30 Nm (M12 100-500 kg) 70 Nrn(M16 750-1000kg) (don't touch bottom of tapped holes)
