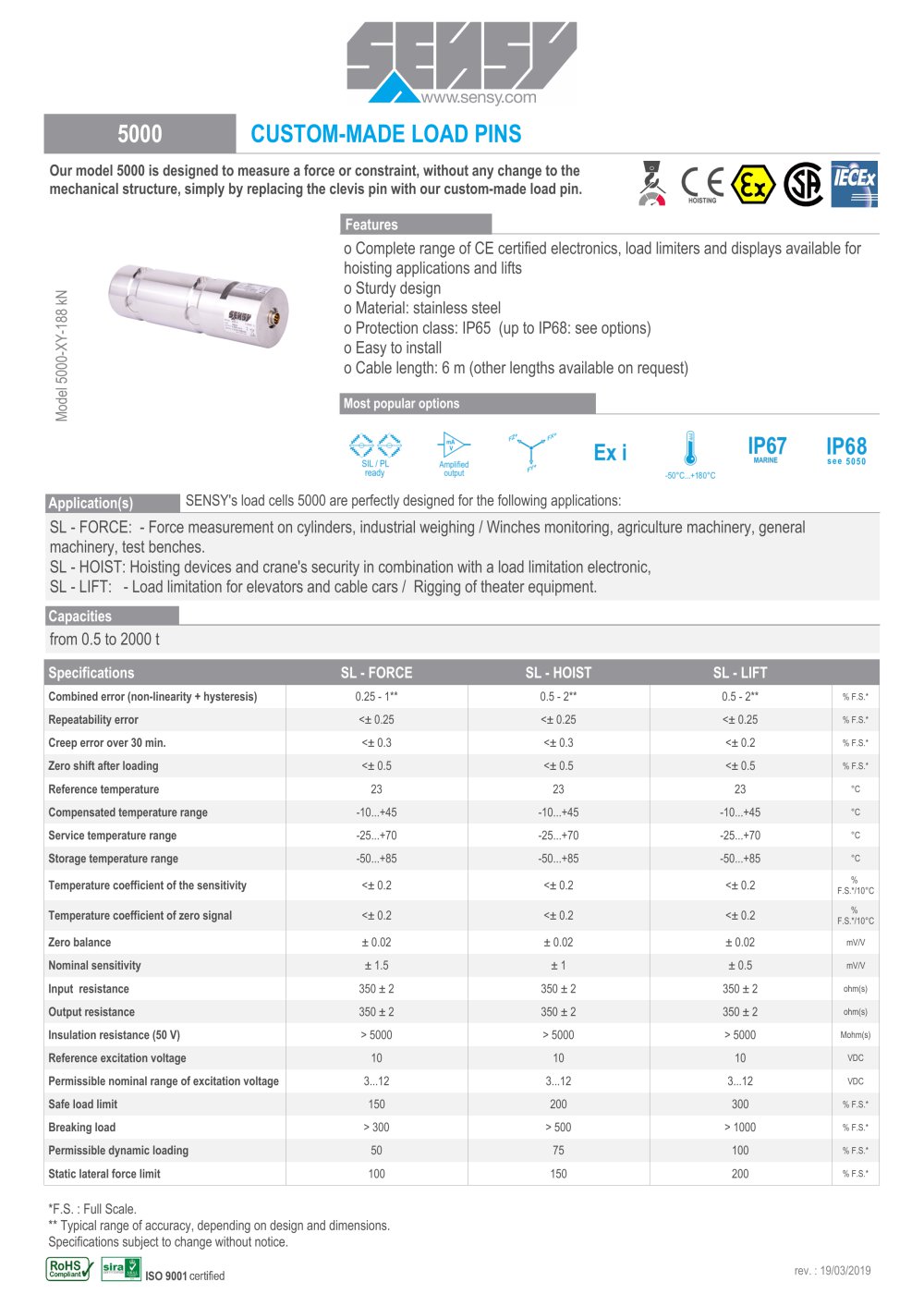

FP-5000_EN.doc Page 1 on 2 Rev.:17/03/2010 5000 CUSTOM MADE LOAD PIN - Double shear beam axle - Sturdy design - Stainless steel - Easy to install - Protection IP 65 (IP 67 available) - Available in "custom-made" design - A complete range of electronics, load limiters and displays are also offered "CE" certified - "EEx" ia II C T4/T6 version available - Available up to 1.000 tons - Available with integrated amplifier 4-20 mA or 1-5VDC The SENSY’s load pin 5000 is perfectly designed to the following applications : - Cranes pulley equipment - Hoisting and crane's security in combination with a load limiter - Equipment of shackles, wedge sockets and hydraulic jacks… - Force measurement on cylinders and others applications AVAILABLE CAPACITIES : 5000 : From 1 ton to 1000 tons (Higher capacities on request) TECHNICAL DATA Accuracy class SL Combined error % F.S. 1 Non - repeatability % F.S. 5000 Nominal excitation voltage V 5 to 10 Nominal range of the excitation voltage V 2…15 Safe load limit % F.S. 200 Breaking load % F.S. > 200...500 Static lateral force limit % F.S. > 300 Permissible dynamic loading % F.S. 70 F.S.: full scale Specifications subject to change without notice Model 5000 – 3 t
