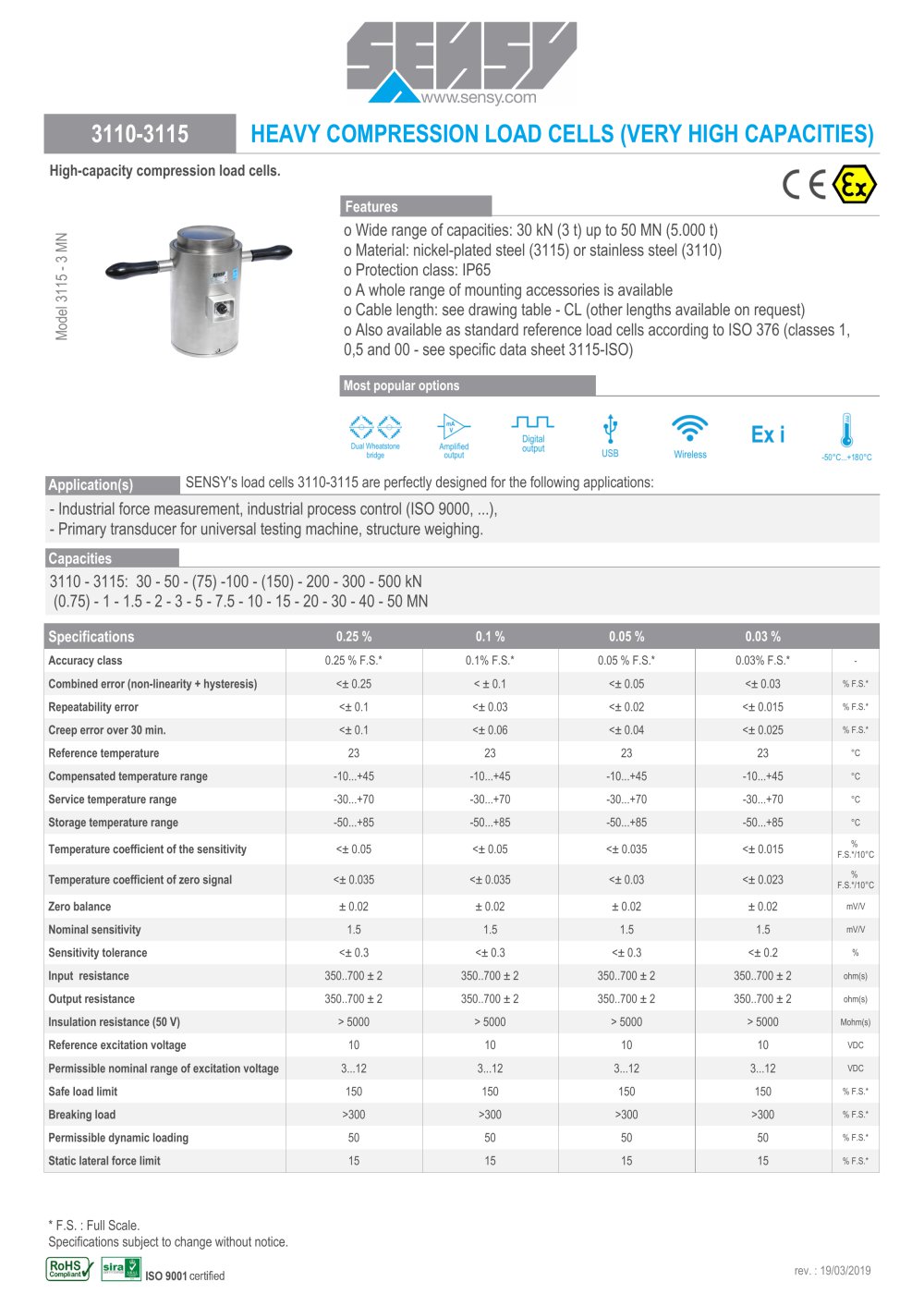

FP-3110_EN.doc Page 1 on 2 Rev.:2/12/2004 3115S + SUP + PAD + H Model 3115S – 5MN – V 3110 - 3115 HEAVY COMPRESSION LOAD CELLS (STANDARD REFERENCE FORCE TRANSDUCER) - Canister, high capacity compression load cells - Stainless steel (3110) or Alloy steel (3115) - Protection IP 65 - Standard reference load cells especially manufactured to ISO 376 and EN10002-3 norms in class "05" or "00" - Available in high output signal version - Redundant dual Wheatstone Bridge available - A whole range of mounting accessories is proposed The SENSY’s load cells 3110-3115 are perfectly designed to the following applications : - All kind of testing applications - Industrial process control (ISO 9000…) - Calibration of testing machines - Standard calibration of load cells STANDARD AVAILABLE CAPACITIES : 3110 – 3115 : 30 - 50 - (75) -100 - (150) - 200 - 300 - 500 kN (0.75) - 1 - 2 - 3 - 5 - 7.5 - 10 - 15 - 20 - 30 MN TECHNISCHE DATEN Accuracy class 0.25 0.1 0.05 0.03 1000 d 2000 d 3000 d Linearity error % F.S. 5000 > 5000 > 5000 > 5000 Nominal excitation voltage V 5 to 10 5 to 10 5 to 10 5 to 10 Nominal range of the excitation voltage V 2…15 2…15 2…15 2…15 Safe load limit % F.S. 150 150 150 150 Breaking load % F.S. 300 > 300 > 300 > 300 Static lateral force limit % F.S. 15 Permissible dynamic loading % F.S. 50 50 50 50 F.S.: full scale Specifications subject to change without notice
