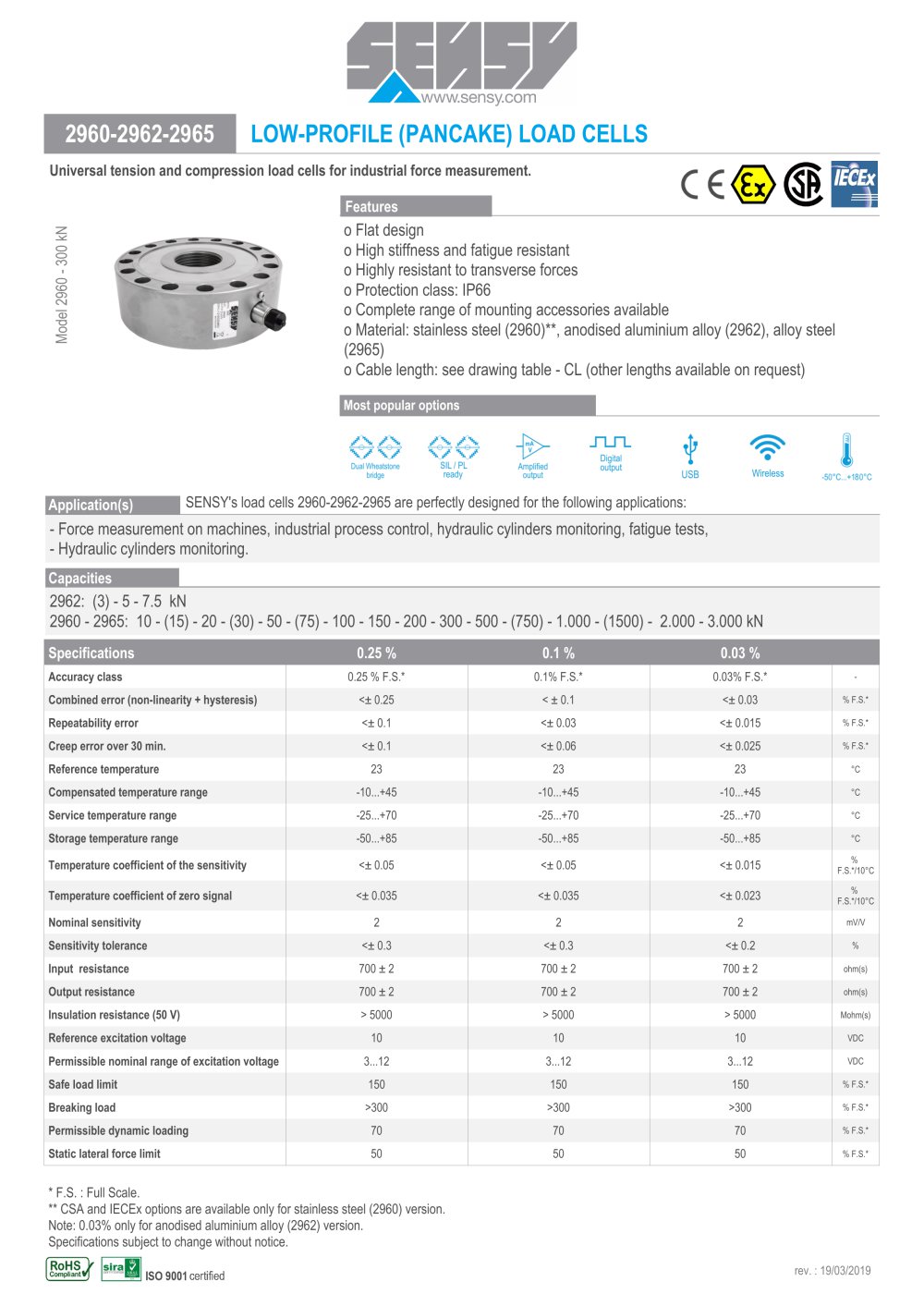

FP-2960_EN.doc Page 1 on 2 Rev.:02/03/2009 2960 - 2962 - 2965 LOW PROFILE (PANCAKE) LOAD CELLS - Very high capacity load cells for use in tension and / or compression. - Especially developed for "Fatigue" rate (capable of very large numbers of cycles) - Low deflection - Available in high output signal version - Insensitiveness to extraneous forces - Redundant dual Wheatstone Bridge available - Protection IP 66 - A whole range of mounting accessories is proposed - Material : - Stainless steel (2960) - Aluminium (2962) - Alloy steel (2965) The SENSY’s load cells 2960-2962-2965 are perfectly designed to the following applications : - Fatigue testing applications - Industrial process control - Calibration of testing machines - Standard calibration of load cells AVAILABLE CAPACITIES : 2962 : (3) - 5 - 7.5 kN 2960 – 2965 : 10 - (15) - 20 - (30) - 50 - (75) - 100 - 150 - 200 - 300 - 500 - (750) - 1.000 kN (Higher capacities on request up to 3000kN) TECHNICAL DATA Accuracy class % 0.25 0.1 0.03 (2962 seult) 1000 d 3000 d Linearity error % F.S. 5000 > 5000 > 5000 Nominal excitation voltage V 5 to 10 5 to 10 5 to 10 Nominal range of the excitation voltage V 2…15 2…15 2…15 Safe load limit % F.S. 150 150 150 Breaking load % F.S. > 300 > 300 > 300 Static lateral force limit % F.S. 50 50 50 Permissible dynamic loading % F.S. 50 50 50 F.S.: full scale Specifications subject to change without notice Model 2960 – 100 kN
