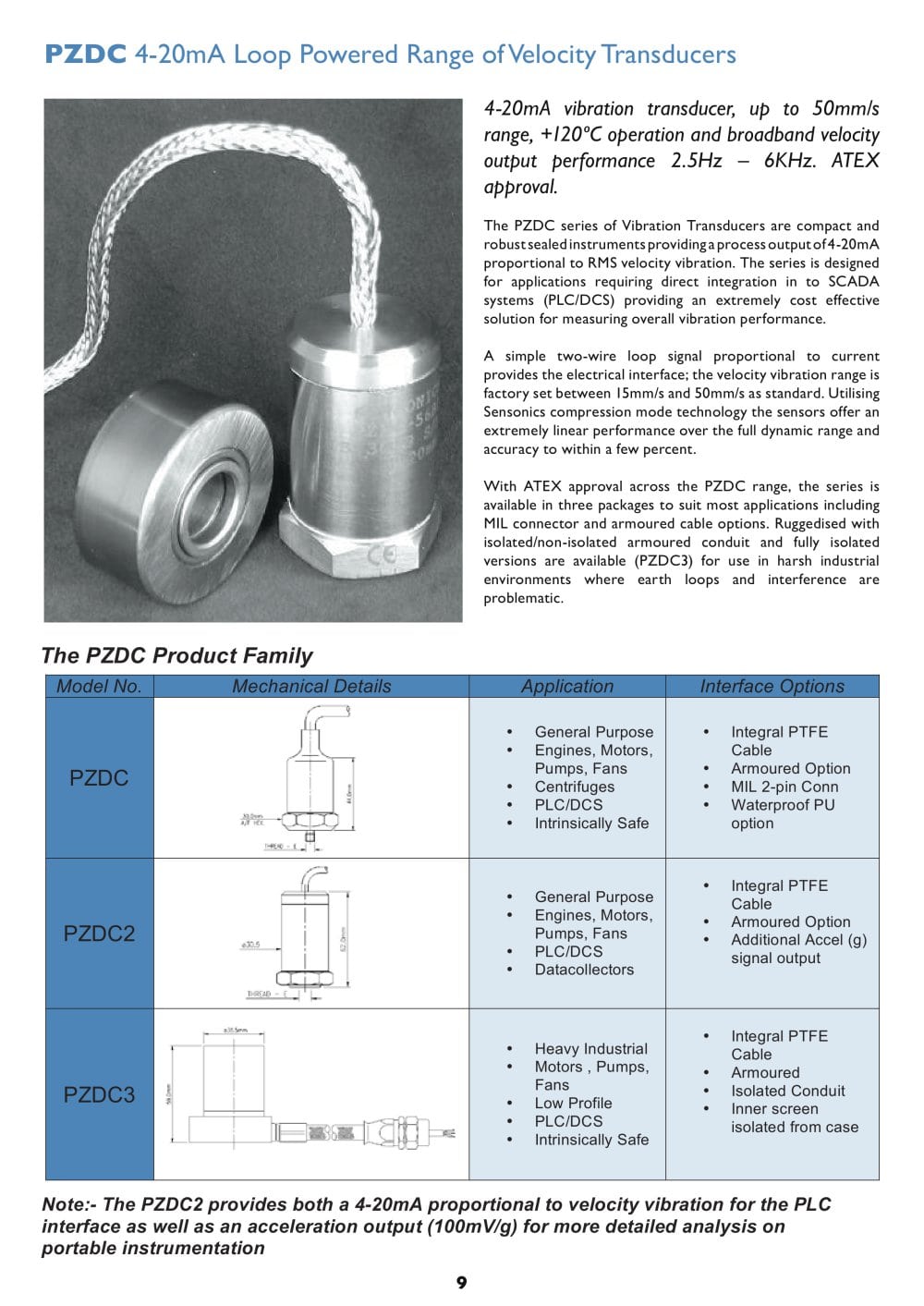

| | | 4-20mA vibration transducer, up to SOmmls range, +/20°C operation and broadband velocity output performance 2.5Hz - 6KHz. ATEX approval. | | |
| | | |
| | | Common Specifications • Output Signal: 4 to 20mA • Accuracy : ±5% • Measurement Range: 0 - 15mm/s, 20mm/s, 25mm/s & 50mm/s, other ranges available • Transverse Sensitivity : <5% • Amplitude Linearity : ± I % • Excitation Voltage : 16 to 32 Volts d.c. | | |
| | | • Temperature Sensitivity : <S% up to max operating temperature • Shock Limits : 2000g • EMC:EN5008I / EN50082 • Material : SS316 | | |
| | | |
| | | |
| | | Model Specifications | | |
| | | |
| | | | | | | | | | | | Frequency Range | 2.5Hz -6kHz | PZDC2 2.5Hz-6kHz | PZDC3 2.5Hz-2kHz | | | | Temperature Range | -30°C- 120°C | -30°C- 120°C | -30°C- 120°C | | | | Survival Range | -55°C- 140°C | -55°C- 150°C | -55°C- 140°C | | | | ATEX Certification | *EEx ia | None | ♦EExia | | | | Protection EN60529 | IP67/68 Waterproof Option | IP67/68 Waterproof Option | IP67/68 Waterproof Option | | | | Cable Options | PTFE Armour | PTFE Armour | PTFE Armour Flexible Conduit | | | | Connector Options | Mil style 2-pin (MIL-C-5015) M12 IP68 | None | None | | | | Mounting Options | '/«" UNF, M8 Female | %" UNF, M8 Female | 3-off M4 Mounting Holes | | | | Weight | 225gms | 225gms | 420gms | | | | | | | | | | | |
| | | |
| | | Ordering Information - Please see pages 16/17 for details of cable assemblies and mounting studs | | |
| | | |
| | | Output Range 1 0-l5mm/s 2 0-20mm/s 3 0-25mm/s 4 0-50mm/s Atex 0 (Non Intrinsic) 1 (Intrinsic) | | Mounting 0 (As above) 1 (M8) 2 ('/." UNF) | | |
| | | Model No. PZDC PZDC2 PZDC3 | | Connection 6C (Cable unarmoured) 6D (Cable armoured) 7G (PU waterproof cable) 8E (Integral MIL Conn) 8K (Integral MI2 Conn IP68) 9C (Conduit - see below) | | Cable Length Specify in metres e.g. 05 (5m) max 25m | | |
| | | Config- - 5 (2-wire) - 8 (3-wire. 4-20mA) - 5 (+ IOOmV/g) | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | e.g. PZDC-2-6D-0S-32I:- PZDC model, 2-wlre, 5m armoured cable, 0-S0mm/s range, 'A" UNF, Ex Version. * Contact sales for ATEX coding and certification details | | |
| | | |
| | | Conduit Fitting 0 (None) 1 (%" BSP) 2 (M 16 Male) 3 (M20 Male) | | |
| | | For armoured flexible conduit options select 9C and specify type and fitting e.g 9C0I (non-isolated with 'A" 8SP fitting) Conduit length is 0.5m less than cable length | | Conduit 0 (non-isolated) 1 (Isolated) | | |
| | | |
| | | |
| | | |
| | | 9 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
