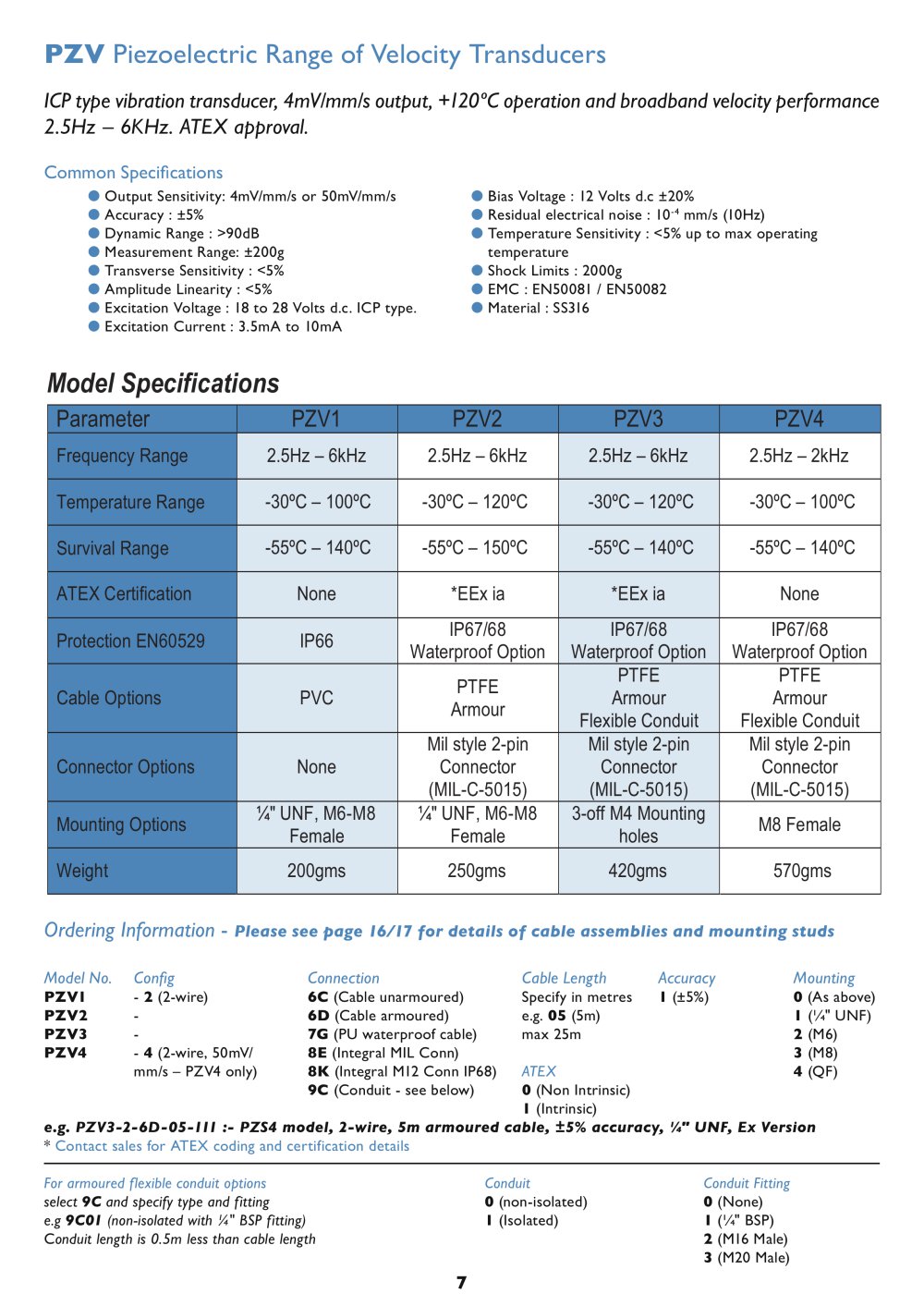

| | | ICP type vibration transducer, 4mV/mm/s output, +I20°C operation and broadband velocity performance 1.5Hz - 6KHz. ATEX approval. | | |
| | | |
| | | Common Specifications • Oucpuc Sensitivity: 4mV/mm/s or 50mV/mm/s • Accuracy : ±5% • Dynamic Range : >90dB • Measurement Range: ±200g • Transverse Sensitivity : <5% • Amplitude Linearity : <5% • Excitation Voltage : 18 to 28 Volts d.c. ICP type. • Excitation Current : 3.5mA to 10mA | | |
| | | • Bias Voltage : 12 Volts d.c ±20% • Residual electrical noise : \0'4 mm/s (10Hz) • Temperature Sensitivity : <5% up to max operating temperature • Shock Limits : 2000g • EMC : EN5008I / EN50082 • Material: SS3I6 | | |
| | | |
| | | |
| | | Model Specifications | | |
| | | |
| | | | | | | | | | | | | Parameter | PZV1 | PZV2 | PZV3 | PZV4 | | | | Frequency Range | 2.5Hz-6kHz | 2.5Hz-6kHz | 2.5Hz-6kHz | 2.5Hz-2kHz | | | | Temperature Range | -30°C- 100°C | -30°C- 120°C | -30°C- 120°C | -30°C- 100°C | | | | Survival Range | -55°C- 140°C | -55°C- 150°C | -55°C- 140°C | -55°C- 140°C | | | | ATEX Certification | None | *EEx ia | *EEx ia | None | | | | Protection EN60529 | IP66 | IP67/68 Waterproof Option | IP67/68 Waterproof Option | IP67/68 Waterproof Option | | | | Cable Options | PVC | PTFE Armour | PTFE Armour Flexible Conduit | PTFE Armour Flexible Conduit | | | | Connector Options | None | Mil style 2-pin Connector (MIL-C-5015) | Mil style 2-pin Connector (MIL-C-5015) | Mil style 2-pin Connector (MIL-C-5015) | | | | Mounting Options | '/<" UNF. M6, M8 Female | %" UNF. M6. M8 Female | 3-off M4 Mounting Holes | M8 Female | | | | Weight | 200gms | 250gms | 420gms | 570gms | | | | | | | | | | | | |
| | | |
| | | Ordering Information - Please see pages 16/17 for details of cable assemblies and mounting studs | | |
| | | |
| | | Mounting 0 (As above) 1 (%" UNF) 2(M6) 3(M8) 4(QF) | | |
| | | Model No. PZV I PZV2 PZV3 PZV4 | | Config - 2 (2-wire) | | Connection 6C (Cable unarmoured) 6D (Cable armoured) 7G (PU waterproof cable) 8E (Integral MIL Conn) 8K (Integral MI2Conn IP68) 9C (Conduit - see below) | | Cable Length Specify in metres e.g. 05 (5m) max 25m ATEX 0 (Non Intrinsic) 1 (Intrinsic) | | Accuracy I (±5%) | | |
| | | |
| | | |
| | | - 4 (2-wire. 50mV/ mm/s - PZV4 only) | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | e.g. PZV3-2-6D-0S-III ;- PZV3 model, 2-wire, Sm armoured cable, ±5% accuracy, '/«" UNF, Ex Version * Contact sales for ATEX coding and certification details | | |
| | | |
| | | Conduit Fitting 0 (None) 1 ('/," BSP) 2 (M 16 Male) 3 (M20 Male) | | |
| | | For armoured flexible conduit options select 9C and specify type and fitting e.g 9C0I (non-isolated with '/>" BSP fitting) Conduit length is 0.5m less than cable length | | Conduit 0 (non-isolated) 1 (Isolated) | | |
| | | |
| | | |
| | | |
