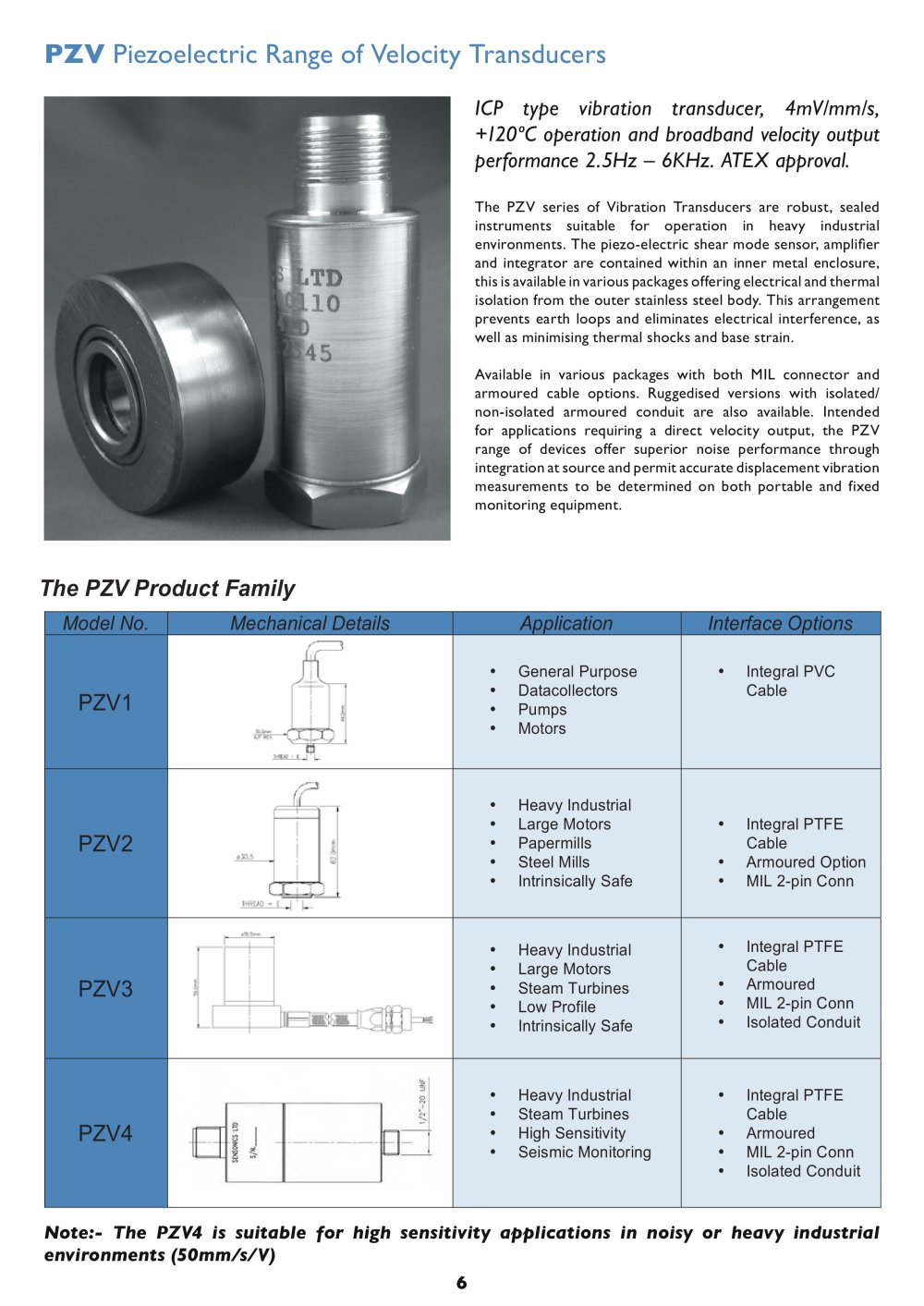

PZV Piezoelectric Range of Velocity Transducers

ICP type vibration transducer, 4mV/mm/s, +I20°C operation and broadband velocity output performance 2.5Hz - 6KHz. ATEX approval.

The PZV series of Vibration transducers are robust, sealed instruments suitable for operation in heavy industrial environments. The piezoelectric shear mode sensor, amplifier and integrator arc contained within an inner metal enclosure, this is available in various packages offering electrical and thermal isolation from the outer stainless steel body. This arrangement prevents earth loops and eliminates electrical interference, as well as minimising thermal shocks and base strain.

Available in various packages with both MIL connector and armoured cable options. Ruggedised versions with isolated/ non-isolated armoured conduit are also available. Intended for applications requiring a direct velocity output, the PZV range of devices offer superior noise performance through integration at source and permit accurate displacement vibration measurements to be determined on both portable and fixed monitoring equipment.

The PZV Product Family

Model No.

Mech

Application

Interface Opt

i!s

Integral PVC Cable

General Purpose Data collectors Pumps Motors

PZV1

Heavy Industrial Large Motors Papermills Steel Mills Intrinsically Safe

Integral PTFE Cable

Armoured Option MIL 2-pin Conn

Integral PTFE Cable Armoured MIL 2-pin Conn Isolated Conduit

Heavy Industrial Large Motors Steam turbines Low Profile Intrinsically Safe

Heavy Industrial Steam Turbines High Sensitivity Seismic Monitoring

Integral PTFE Cable Armoured MIL 2-pin Conn Isolated Conduit

□ i

Note:- The PZV4 Is suitable for high sensitivity applications In noisy or heavy Industrial environments (50mm/s/V)
