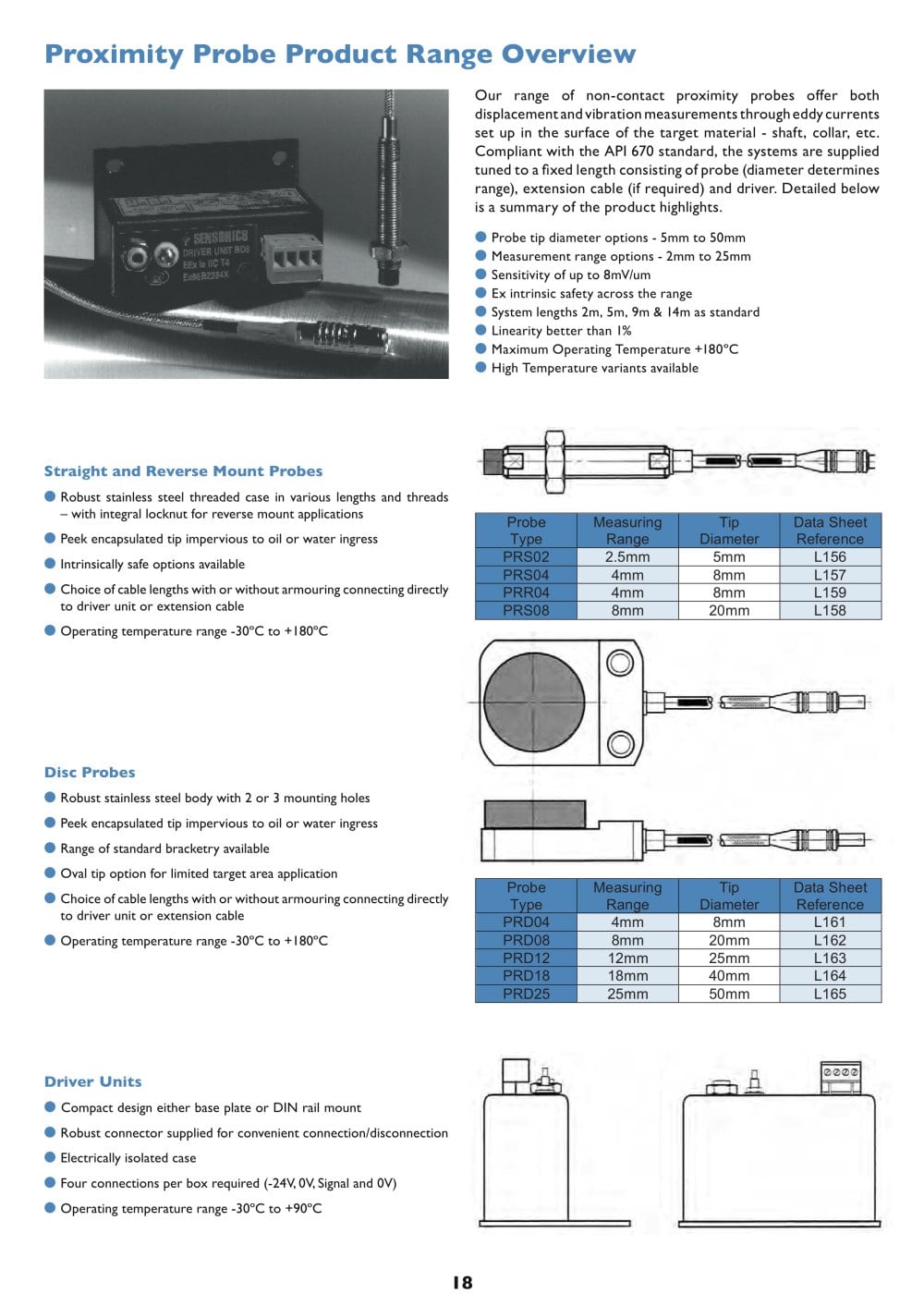

Our range of non-contact proximity probes offer both displacement and vibration measurements through eddy currents set up in the surface of the target material - shaft, collar, etc. Compliant with the API 670 standard, the systems are supplied tuned to a fixed length consisting of probe (diameter determines range), extension cable (if required) and driver. Detailed below is a summary of the product highlights. • Probe tip diameter options - 5mm to 50mm • Measurement range options - 2mm to 25mm • Sensitivity of up to 8mV/um • Ex intrinsic safety across the range • System lengths 2m. 5m. 9m & 14m as standard • Linearity better than 1% • Maximum Operating Temperature +I80°C • High Temperature variants available |
