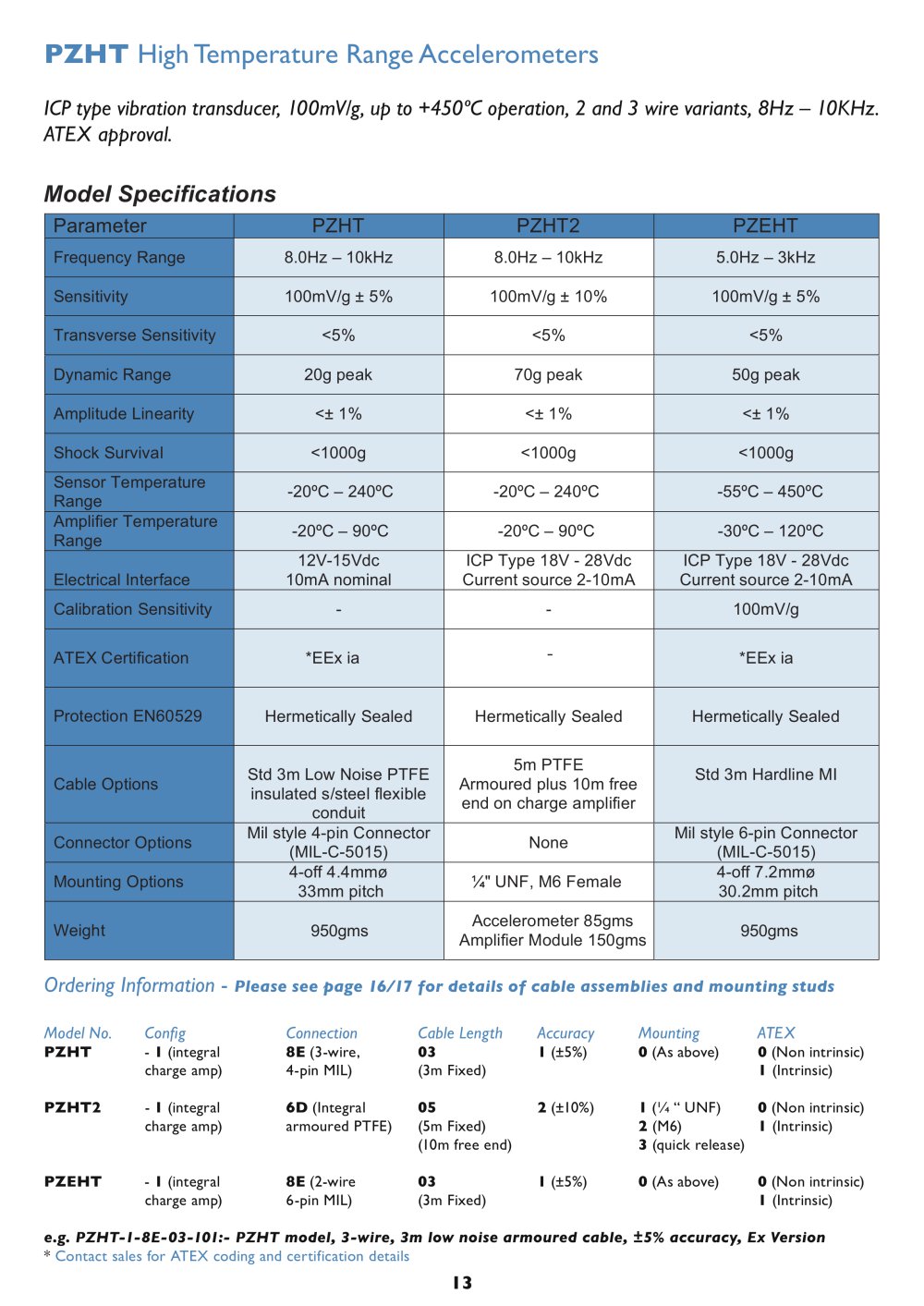

| | | ICP type vibration transducer, lOOmV/g, up to +450°C operation, 2 and 3 wire variants, 8Hz - lOKHz. ATEX approval. | | |
| | | |
| | | Model Specifications | | |
| | | |
| | | | | | | | | | | | Parameter | PZHT | PZHT2 | PZEHT | | | | Frequency Range | 8.0Hz-10kHz | 8.0Hz-10kHz | 5.0Hz-3kHz | | | | Sensitivity | 100mV/g± 5% | 100mV/g± 10% | 100mV/g±5% | | | | i Transverse Sensitivity | <5% | <5% | <5% | | | | Dynamic Range | 20g peak | 70g peak | 50g peak | | | | Amplitude Linearity | <± 1% | <± 1% | <± 1% | | | | Shock Survival | <1000g | <1000g | <1000g | | | | Sensor Temperature Range | -20°C - 240°C | -20°C - 240°C | -55°C - 450°C | | | | Amplifier Temperature Range | -20°C - 90°C | -20°C - 90°C | -30°C- 120°C | | | | Electncal Interface | 12V-15Vdc 10mA nominal | ICP Type 18V-28Vdc Current source 2-10mA | ICP Type 18V-28Vdc Current source 2-10mA | | | | Calibration Sensitivity | - | - | 100mV/g | | | | ATEX Certification | *EEx ia | None | *EExia | | | | Protection EN60529 | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | | | | Cable Options | Std 3m Low Noise PTFE insulated s/steel flexible conduit | | Std 3m Hardline | | | | Connector Options | Mil style 4-pin Connector (MIL-C-5015) | None | Mil style 6-pin Connector (MIL-C-5015) | | | | Mounting Options | 4-off 4.4mm0 33mm pitch | 7«" UNF, M6 Female | 4-off 7.2mmo 30.2mm pitch | | | | Weight | 950gms | | 950gms | | | | | | | | | | | |
| | | |
| | | Ordering Information - Please see pages 16/17 for details of cable assemblies and mounting studs | | |
| | | |
| | | Mounting ATEX 0 (As above) 0 (Non intrinsic) I (Intrinsic) 1 ('/." UNF) 0 (Non intrinsic) 2 (M6) I (Intrinsic) 3 (Quick release) | | |
| | | Model No. PZHT | | Config - I (Integral charge amp) - I (Integral charge amp) | | Connection 8E (3-wire. 4-pin MIL) | | Cable Length 03 (3m Fixed) | | Accuracy I (±5%) | | |
| | | |
| | | |
| | | |
| | | PZHT2 | | | 6D (Integral 05 armoured PTFE) (5m Fixed) (10m free end) | | 1 (±10%) | | |
| | | |
| | | |
| | | |
| | | |
| | | PZEHT | | - I (Integral charge amp) | | O (As above) | | 0 (Non intrinsic) 1 (Intrinsic) | | |
| | | 8E (2-wire 6-pin MIL) | | 03 (3m Fixed) | | (±5%) | | |
| | | |
| | | |
| | | |
| | | |
| | | e.g. PZHT-1-8E-03-101:- PZHT model, 3-wlre, 3m low noise armoured cable, ±5% accuracy, Ex Version * Contact sales for ATEX coding and certification details | | |
| | | |
