CMOSens EM1 Mass Flow Meter for Gases

CMOSens technology Unbeatable price/performance ratio High output data speed (up to 200 Hz) Wide dynamic range (1:100 with 3% m.v. accuracy) Various maximum flow ranges: up to 200 ln/min (FS) Digitally calibrated & temperature compensated RS232 interface RoHS compliant

v 2.9 / November 2008

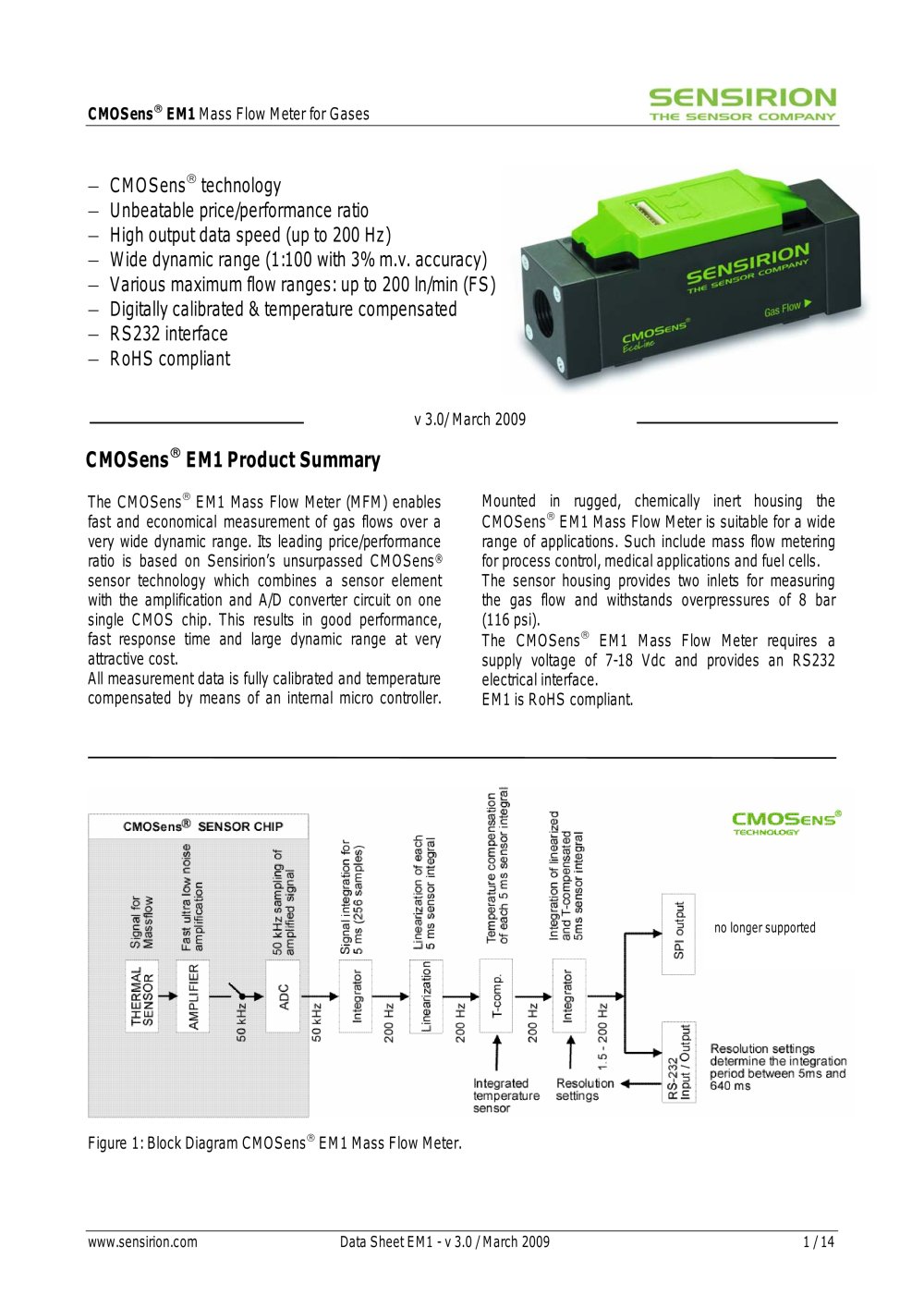

Datasheet Mass Flow Meter EM1 for Gases - 15453 CMOSens EM1 Product Summary

The CMOSens EM1 Mass Flow Meter (MFM) enables fast and economical measurement of gas flows over a very wide dynamic range. Its leading price/performance ratio is based on Sensirion’s unsurpassed CMOSens EM1 Mass Flow Meter is suitable for a wide range of applications. Such include mass flow metering for process control, medical applications and fuel cells. The sensor housing provides two inlets for measuring the gas flow and withstands overpressures of 8 bar (116 psi). The CMOSens
® sensor technology which combines a sensor element with the amplification and A/D converter circuit on one single CMOS chip. This results in good performance, fast response time and large dynamic range at very attractive cost. All measurement data is fully calibrated and temperature compensated by means of an internal micro controller. Mounted in rugged, chemically inert housing the CMOSens EM1 Mass Flow Meter requires a supply voltage of 7-18 Vdc and provides an RS232 electrical interface. EM1 is RoHS compliant.
no longer supported Figure 1: Block Diagram CMOSens EM1 Mass Flow Meter.
www.sensirion.comData Sheet EM1 - v 2.9 / July 2008 1 / 14
