Catalog excerpts

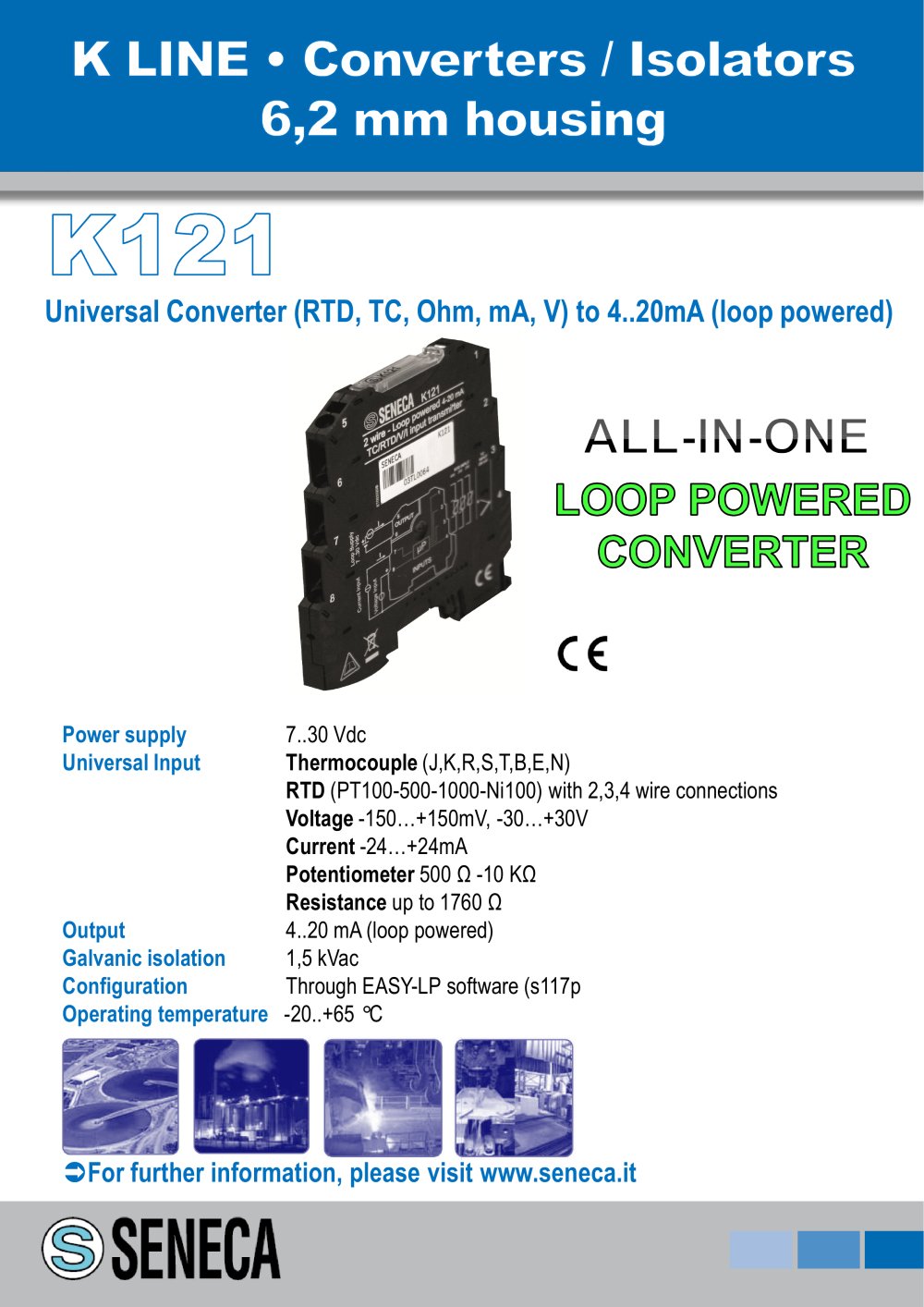

Universal Converter - 1

Universal Converter (RTD, TC, Ohm, mA, V) to 4..20mA (loop powered) Power supply 7..30 Vdc Universal Input Thermocouple (J,K,R,S,T,B,E,N) RTD (PT100-500-1000 Voltage -150…+150mV Current -24…+24mA Potentiometer 500 Resistance up to 1760 Output 4..20 mA (loop powered Galvanic isolation 1,5 kVac Configuration Through EASY-LP software (s117p Operating temperature -20..+65 °C For further information, please visit www.seneca.it 1000-Ni100) with 2,3,4 wire connections 150mV, -30…+30V -10 K powered)

Open the catalog to page 1
Universal Converter - 2

TECHNICAL FEATURES GENERAL FEATURES Power supply 7..30 Vdc Channels number 1 input, 1 outputs Galvanic isolation 1.5 kVac, 2 ways Power supply on side terminals Yes Power consumption < 660 mW SCHEMES, PROGRAMMING Dimensions (wxhxd) 6.2 x 93.1 x 102,5 mm Operating temperature -20..+65°C Connections Spring clamps (EN 60175) Approvals CE, EN 61000-6-4, EN 64000-6-2, EN 61010-1 INPUT Channels 1 Potentiometer From 500 to 10 K, Input impedance 10 M INPUTS Type J,K,R,S,T,B,E,N, Input impedance 10 M, cold junction compensation -40 ..65 ± 1,5°C Settable, fault sensor detection settable Thermocouple...

Open the catalog to page 2
