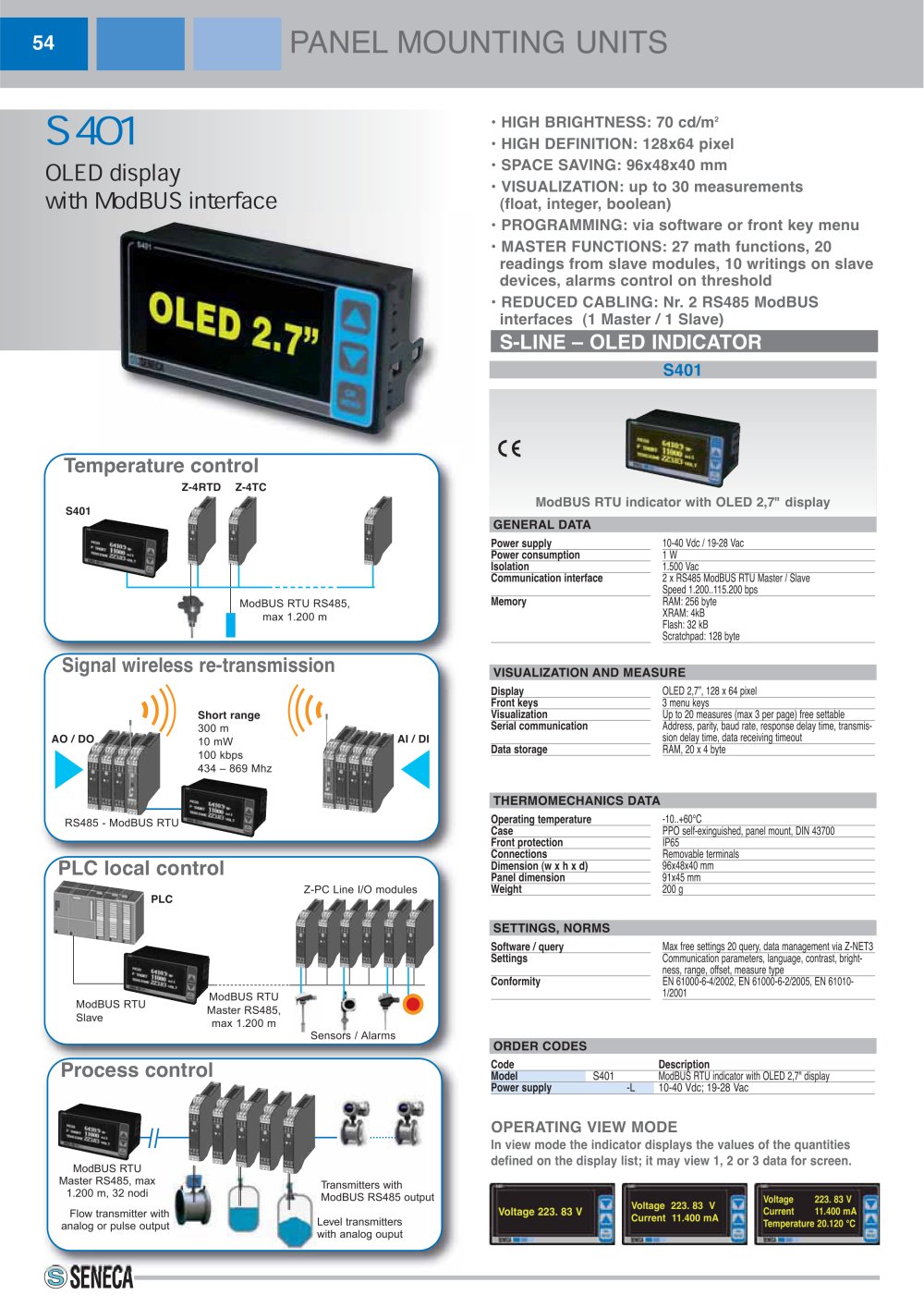

ModBUS Display - 1 Pages

54 PANEL MOUNTING UNITS
Temperature control
S401
Z-4RTD Z-4TC
ModBUS RTU RS485,
max 1.200 m
S-LINE – OLED INDICATOR
S401
ModBUS RTU indicator with OLED 2,7" display
Power supply
Power consumption
Isolation
Communication interface
Memory
10-40 Vdc / 19-28 Vac
1 W
1.500 Vac
2 x RS485 ModBUS RTU Master / Slave
Speed 1.200..115.200 bps
RAM: 256 byte
XRAM: 4kB
Flash: 32 kB
Scratchpad: 128 byte
GENERAL DATA
Display
Front keys
Visualization
Serial communication
Data storage
OLED 2,7”, 128 x 64 pixel
3 menu keys
Up to 20 measures (max 3 per page) free settable
Address, parity, baud rate, response delay time, transmission
delay time, data receiving timeout
RAM, 20 x 4 byte
VISUALIZATION AND MEASURE
Operating temperature
Case
Front protection
Connections
Dimension (w x h x d)
Panel dimension
Weight
-10..+60°C
PPO self-exinguished, panel mount, DIN 43700
IP65
Removable terminals
96x48x40 mm
91x45 mm
200 g
THERMOMECHANICS DATA
Software / query
Settings
Conformity
Max free settings 20 query, data management via Z-NET3
Communication parameters, language, contrast, brightness,
range, offset, measure type
EN 61000-6-4/2002, EN 61000-6-2/2005, EN 61010-
1/2001
SETTINGS, NORMS
Code Description
Model S401 ModBUS RTU indicator with OLED 2,7" display
Power supply -L 10-40 Vdc; 19-28 Vac
ORDER CODES
Signal wireless re-transmission
Short range
300 m
10 mW
100 kbps
434 – 869 Mhz
RS485 - ModBUS RTU
AO / DO AI / DI
PLC local control
PLC
ModBUS RTU
Master RS485,
max 1.200 m
ModBUS RTU
Slave
Sensors / Alarms
Z-PC Line I/O modules
Process control
ModBUS RTU
Master RS485, max
1.200 m, 32 nodi
Flow transmitter with
analog or pulse output Level transmitters
with analog ouput
Transmitters with
ModBUS RS485 output
• HIGH BRIGHTNESS: 70 cd/m2
• HIGH DEFINITION: 128x64 pixel
• SPACE SAVING: 96x48x40 mm
• VISUALIZATION: up to 30 measurements
(float, integer, boolean)
• PROGRAMMING: via software or front key menu
• MASTER FUNCTIONS: 27 math functions, 20
readings from slave modules, 10 writings on slave
devices, alarms control on threshold
• REDUCED CABLING: Nr. 2 RS485 ModBUS
interfaces (1 Master / 1 Slave)
OPERATING VIEW MODE
In view mode the indicator displays the values of the quantities
defined on the display list; it may view 1, 2 or 3 data for screen.
Voltage 223. 83 V Voltage 223. 83 V
Current 11.400 mA
Voltage 223. 83 V
Current 11.400 mA
Temperature 20.120 °C
S401 OwLitEh DM doidsBplUaSy interface

ModBUS Display
