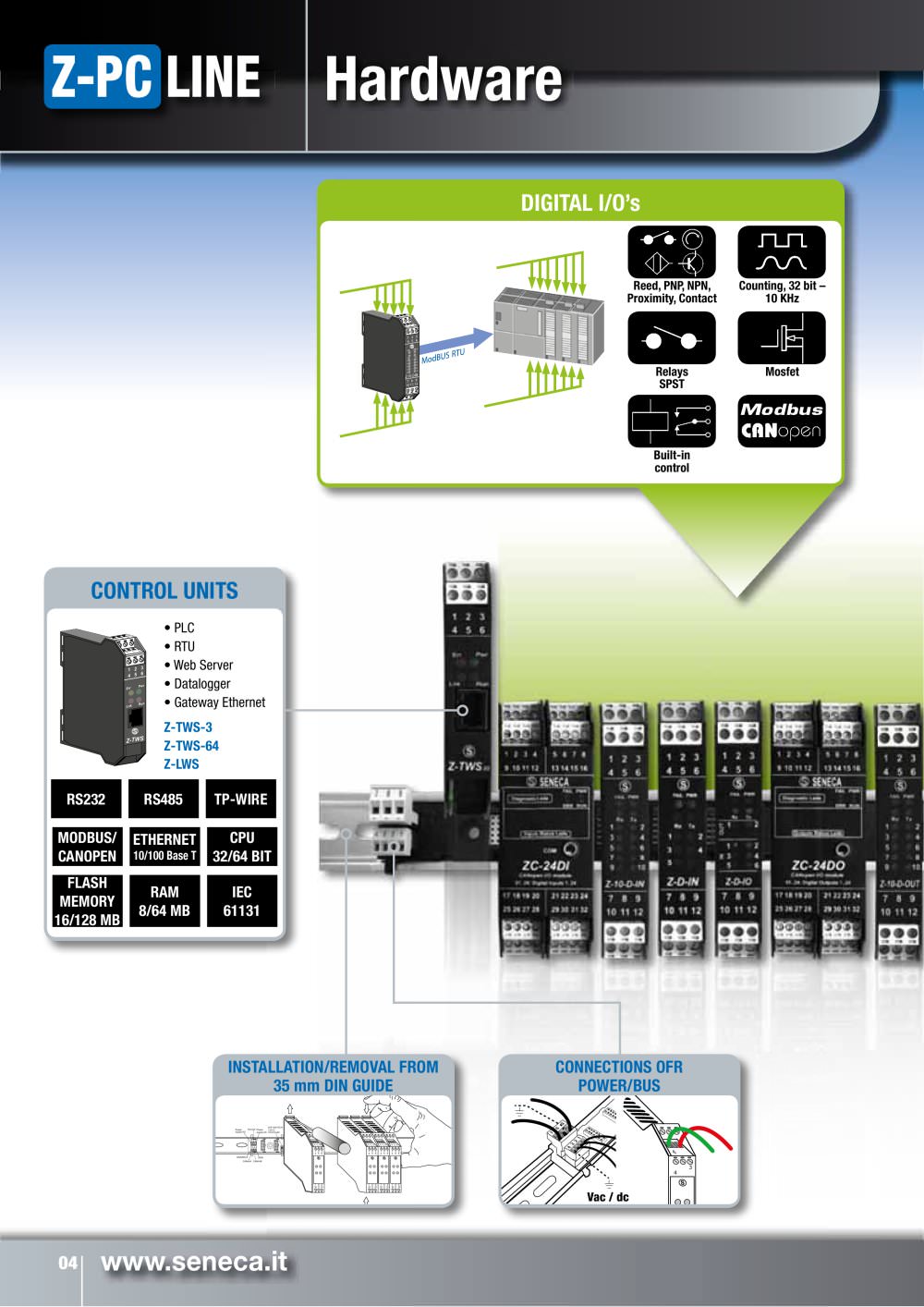

Z-PC LINE - OVERVIEW

IITS
The -PC ine is a remarkably flexible instrumentation system. The range of modules available covers all the usual signal input and output requirements for simple SCADA and Data acquisition applications, the low cost radio links can eliminate a lot of field wiring and the innovative Seneca uickFix bus system can reduce installation time dramatically. -Optimied acquisition of analogue signals -Isolation 1.500 Vrms 3 points -Serial interface S85, bus communications with ModBUS-TU protocol -Maximum rate 5.600 bps -Hot swapping system -Tiny dimensions (standard width 1,5 mm) -Power supply range 19..0 Vdc (opt. 9..30 Vdc) and 19..28 Vac -Mounting on DIN guide 62. I/O distributed modules cover a wide range of applications: acquisition. In particular we distinguish: -Analogue I/Os: universal inputs, Pid regulator, multiple inputs & outputs (current or voltage) up to 8 inputs per module-Digital I/Os: multiple inputs & outputs to control alarms and status functioning up to 10 signals per module -Wireless adio link modules (-ink, license free UHF transceiver) & standard serial converters--TWS Web Server & PC module turns the stand alone I/O modules into an easily programmable (in standard programming languages) PC with inbuilt web server capabilities. An immensely powerful yet cost effective system. ARCITCTURS utmtn t ustn
