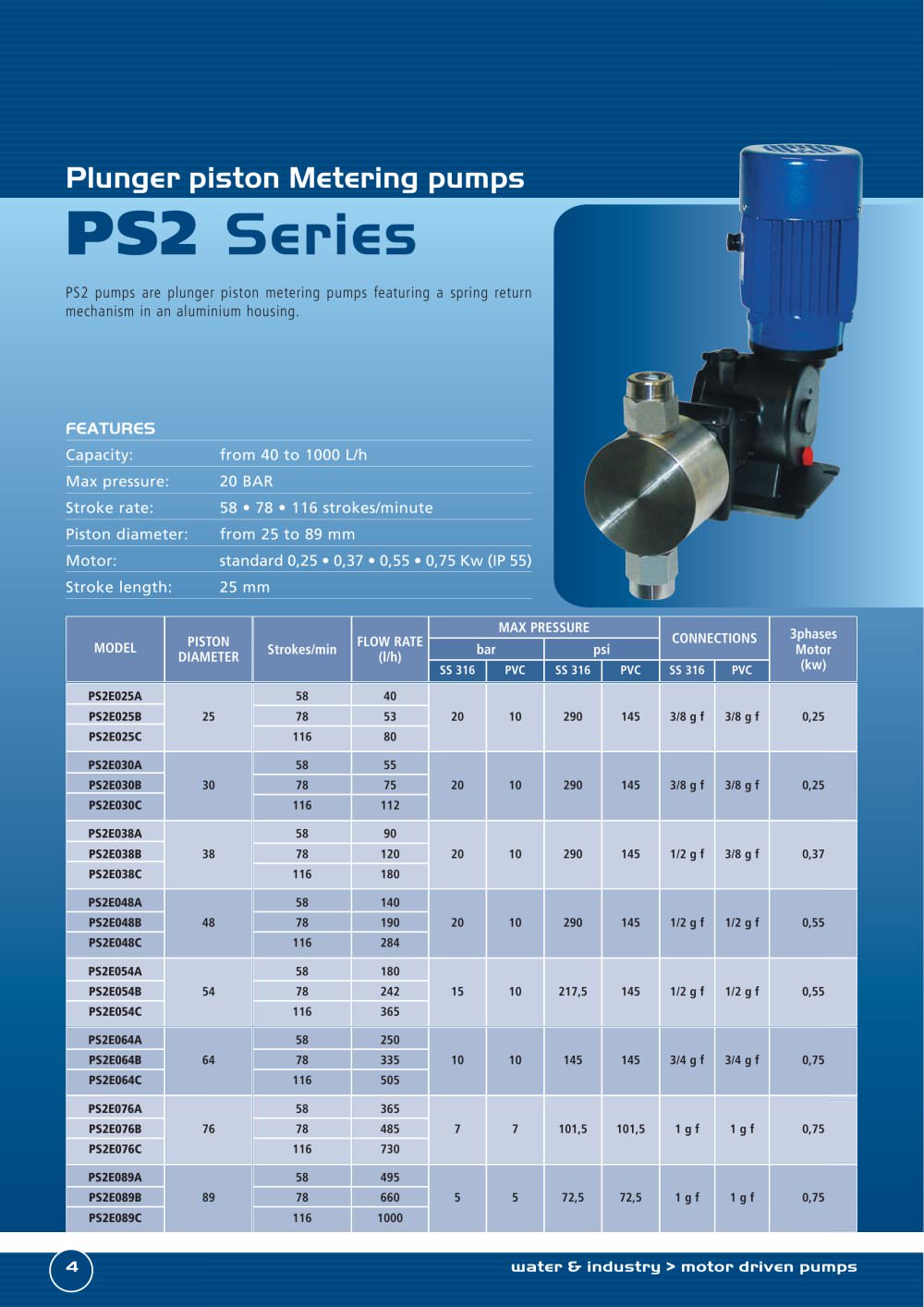

Plunger piston Metering pumps

motor driven pumps general catalogue - 18935 PS2

PS2 pumps are plunger piston metering pumps featuring a spring returnmechanism in an aluminium housing.

Series

FEATURES

Capacity:from 40 to 1000 L/h Max pressure:20 BAR Stroke rate:58 • 78 • 116 strokes/minute Piston diameter:from 25 to 89 mm Motor:standard 0,25 • 0,37 • 0,55 • 0,75 Kw (IP 55) Stroke length:25 mm

MAX PRESSURE 3phasesMotor(kw) MODEL PISTONDIAMETER CONNECTIONS Strokes/min FLOW RATE(l/h) bar psi

SS 316 PVC SS 316 PVC SS 316 PVC PS2E025A 58 40 PS2E025BPS2E025C 25 78116 53 80 20 10 290 145 3/8 g f 3/8 g f 0,25 PS2E030A 58 55 PS2E030B PS2E030C 30 78116 75112 20 10 290 145 3/8 g f 3/8 g f 0,25 PS2E038A 58 90 PS2E038B PS2E038C 38 78116 120 180 20 10 290 145 3/8 g f 3/8 g f 0,37 PS2E048A 58 140 PS2E048B PS2E048C 48 78116 190 284 20 10 290 145 1/2 g f 1/2 g f 0,55 PS2E054A 58 180 PS2E054B PS2E054C 54 78116 242 365 15 10 217,5 145 1/2 g f 1/2 g f 0,55 PS2E064A 58 250 PS2E064B PS2E064C 64 78116 335 505 10 10 145 145 3/4 g f 3/4 g f 0,75 PS2E076A 58 365 PS2E076B PS2E076C 76 78116 485 730 7 7 101,5 101,5 1 g f 1 g f 0,75 PS2E089A 58 495 PS2E089B PS2E089C 89 78116 6601000 5 5 72,5 72,5 1 g f 1 g f 0,75

4water treatment division > motor driven dosing pumps
