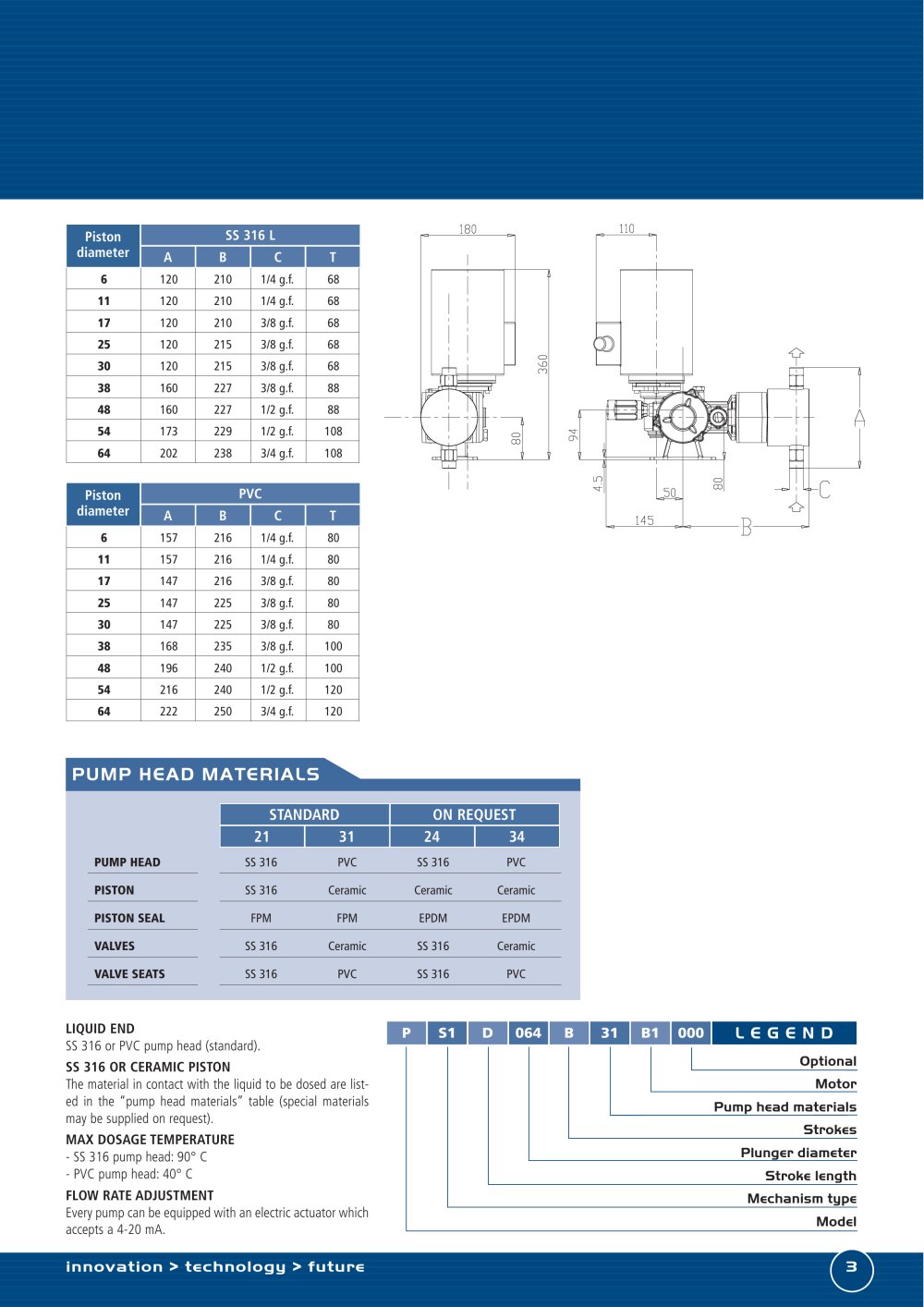

Pistondiameter SS 316 L A B C T

6 1202101/4 g.f.68 11 1202101/4 g.f.68 17 1202103/8 g.f.68 25 1202153/8 g.f.68 30 1202153/8 g.f.68 38 1602273/8 g.f.88 48 1602271/2 g.f.88 54 1732291/2 g.f.108 64 2022383/4 g.f.108

Pistondiameter PVC A B C T

6 1572161/4 g.f.80 11 1572161/4 g.f.80 17 1472163/8 g.f.80 25 1472253/8 g.f.80 30 1472253/8 g.f.80 38 1682353/8 g.f.100 48 1962401/2 g.f.100 54 2162401/2 g.f.120 64 2222503/4 g.f.120

motor driven pumps general catalogue - 18935 PUMP HEAD MATERIALS

STANDARD ON REQUEST 21 31 24 34

PUMP HEAD SS 316PVCSS 316PVC PISTON SS 316CeramicCeramicCeramic PISTON SEAL FPMFPMEPDMEPDM VALVES SS 316PYREXSS 316PYREX VALVE SEATS SS 316PVCSS 316PVC

LIQUID END

P S1 D 064 B 31 B1 000

SS 316 or PVC pump head (standard).

LEGEND

SS 316 OR CERAMIC PISTON

OptionalMotorPump head materialsStrokesPlunger diameterStroke lengthMechanism typeModel

The material in contact with the liquid to be dosed are list-ed in the “pump head materials”table (special materials may be supplied on request). MAX DOSAGE TEMPERATURE - SS 316 pump head:90°C- PVC pump head:40°C FLOW RATE ADJUSTMENT Every pump can be equipped with an electric actuator which accepts a 4-20 mA.

innovation > technology > future 3
