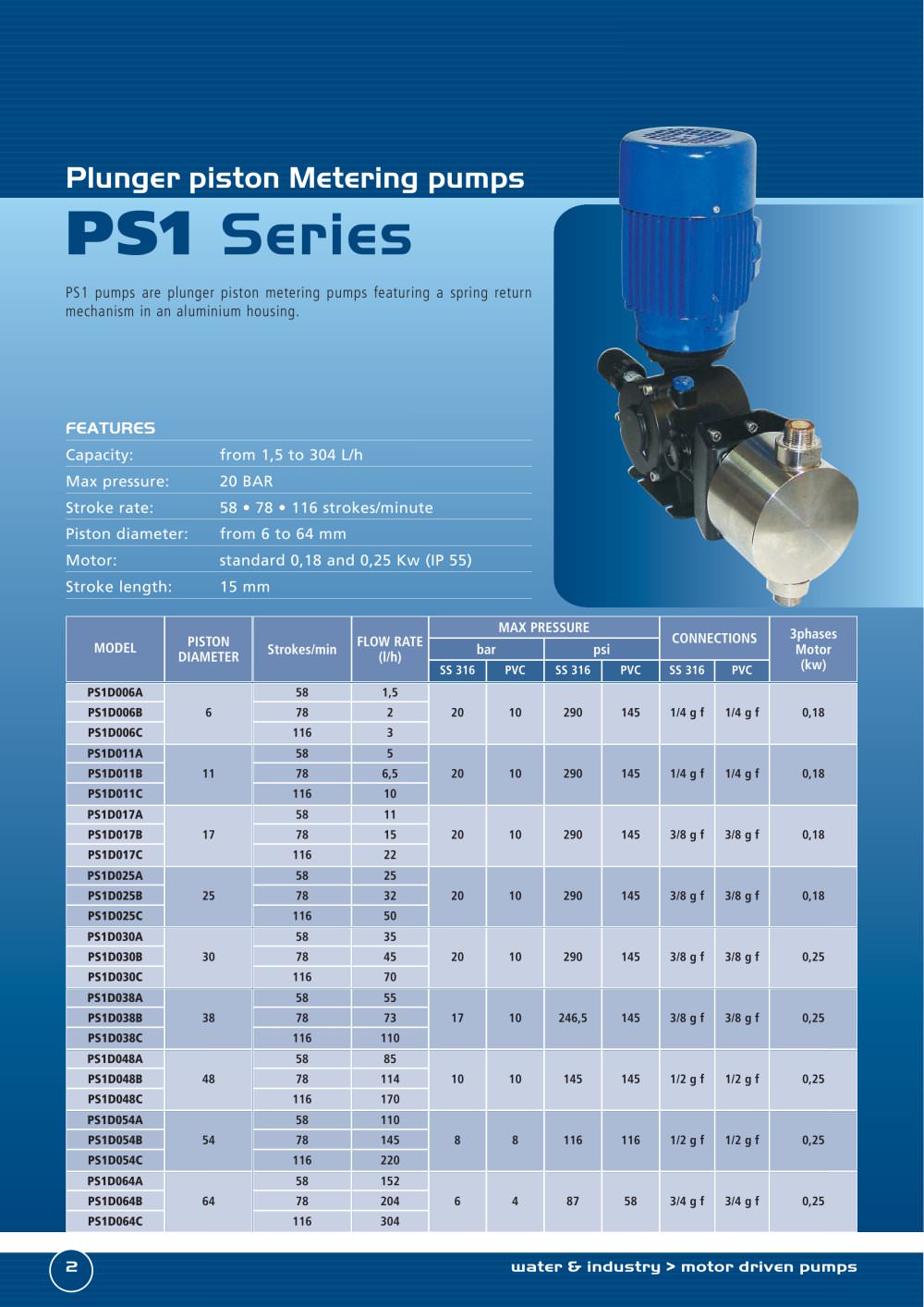

Plunger piston Metering pumps

motor driven pumps general catalogue - 18935 PS1

PS1 pumps are plunger piston metering pumps featuring a spring returnmechanism in an aluminium housing.

Series

FEATURES

Capacity:from 1,5 to 304 L/h Max pressure:20 BAR Stroke rate:58 • 78 • 116 strokes/minute Piston diameter:from 6 to 64 mm Motor:standard 0,18 and 0,25 Kw (IP 55) Stroke length:15 mm

MAX PRESSURE 3phasesMotor(kw) MODEL PISTONDIAMETER CONNECTIONS Strokes/min FLOW RATE(l/h) bar psi

SS 316 PVC SS 316 PVC SS 316 PVC PS1D006A 58 1,5 PS1D006BPS1D006C 6 78116 2 3 20 10 290 145 1/4 g f 1/4 g f 0,18 PS1D011A 58 5 PS1D011B PS1D011C 11 78116 6,510 20 10 290 145 1/4 g f 1/4 g f 0,18 PS1D017A 58 11 PS1D017B PS1D017C 17 78116 15 22 20 10 290 145 3/8 g f 3/8 g f 0,18 PS1D025A 58 25 PS1D025B PS1D025C 25 78116 32 50 20 10 290 145 3/8 g f 3/8 g f 0,18 PS1D030A 58 35 PS1D030B PS1D030C 30 78116 45 70 20 10 290 145 3/8 g f 3/8 g f 0,25 PS1D038A 58 55 PS1D038B PS1D038C 38 78116 73110 17 10 246,5 145 3/8 g f 3/8 g f 0,25 PS1D048A 58 85 PS1D048B PS1D048C 48 78116 114 170 10 10 145 145 1/2 g f 1/2 g f 0,25 PS1D054A 58 110 PS1D054B PS1D054C 54 78116 145 220 8 8 116 116 1/2 g f 1/2 g f 0,25 PS1D064A 58 152 PS1D064B PS1D064C 64 78116 204 304 6 4 87 58 3/4 g f 3/4 g f 0,25

2water treatment division > motor driven dosing pumps
