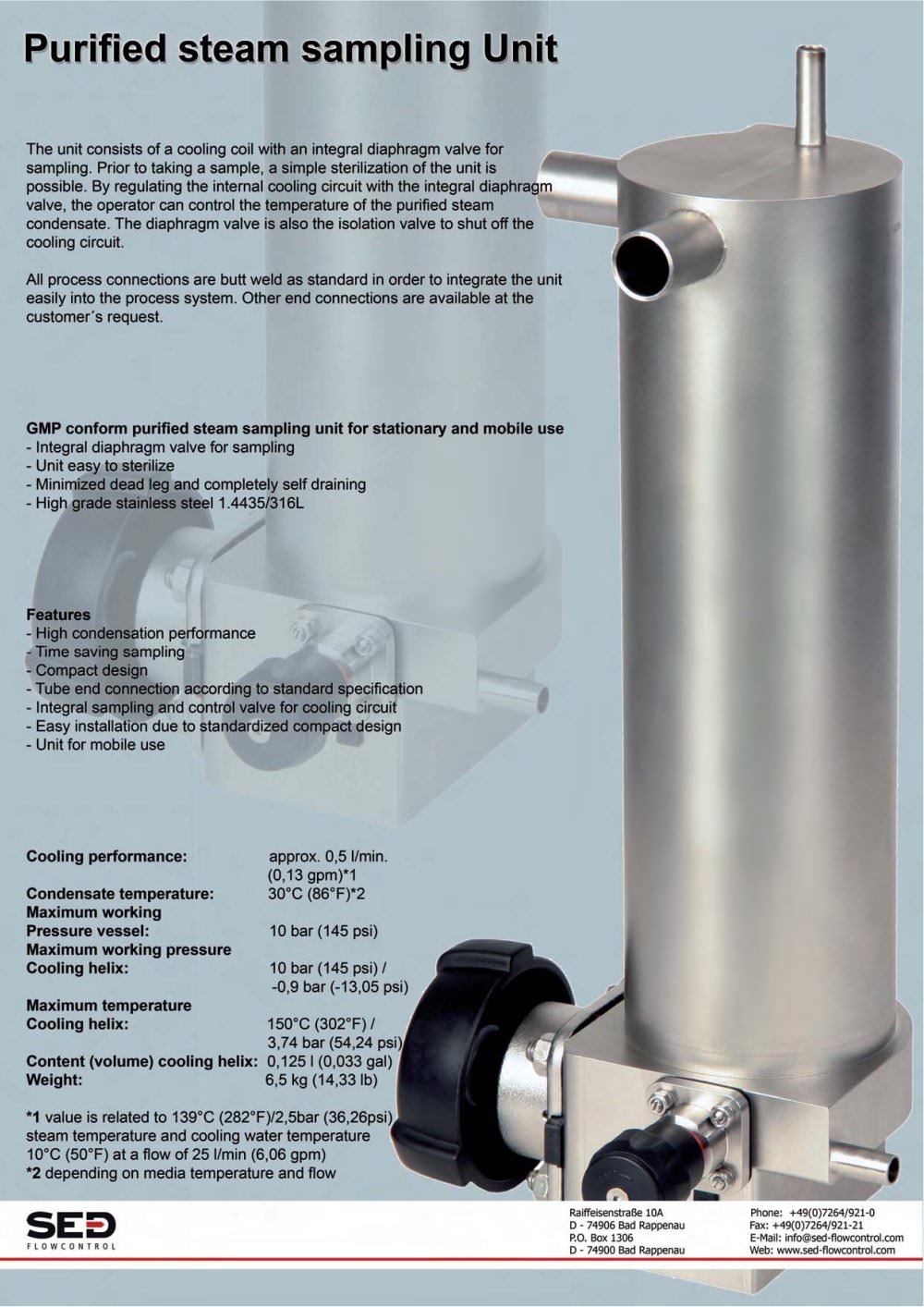

Purified Steam Sampling Unit
2Pages

en.pdf tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:24.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial Black", sans-serif; } .font6 { font:15.00pt "Times New Roman", serif; } Purified steam sampling Unit The unit consists of a cooling coil with an intgral diaphragm valve for sampling. Prior to taking a sample, a simple sterilization of the unit is possible. By regulating the internai cooling circuit with the intgral diaphra驧 valve, the operator can control the temprature of the purified steam condensate. The diaphragm valve is also the isolation valve to shut off the cooling circuit. Ail process connections are butt weld as standard in order to integrate the unit easily into the process System. Other end connections are available at the customer's request. GMP conform purified steam sampling unit for stationary and mobile use - Intgral diaphragm valve for sampling - Unit easy to sterilize - Minimized dead leg and completely self draining - High grade stainless steel 1.4435/316L Features - High condensation performance - Time saving sampling - Compact design - Tube end connection according to standard sp驩cification - Intgral sampling and control valve for cooling circuit - Easy installation due to standardized compact design - Unit for mobile use Cooling performance: Condensate temprature: Maximum working Pressure vessel: Maximum working pressure Cooling h驩lix: Maximum temprature Cooling hlix: Content (volume) cooling h驩lix: Weight: approx. 0,5 l/min. (0,13gpm)*1 30°C (86T)*2 10 bar (145 psi) 10 bar (145 psi)/ -0,9 bar (-13,05 psi) 150°C(302°F)/ , 3,74 bar (54,24 psi)l 0,125 1(0,033 gai) 1 6,5 kg (14,33 Ib) *1 value is related to 139°C (282°F)/2,5bar (36,26psi). steam temprature and cooling water temprature I 10°C (50°F) at a flow of 25 l/min (6,06 gpm) *2 depending on m驩dia temprature and flow F10WC0NIR01 RaiffeisenstraRe 10A D - 74906 Bad Rappenau P.O. Box 1306 D - 74900 Bad Rappenau Phone: +49(0)7264/921-0 Fax: +49(0)7264/921-21 E-Mail: info@sed-flowcontrol.com Web: www.sed-flowcontrol.com

en.pdf tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:41.00pt "Arial", sans-serif; } .font5 { font:9.60pt "Times New Roman", serif; } purified steam connection colling water connection 90° rotated cooling hlix t condensate outlet sampling valve control and shut off valve for cooling circuit V1 shut off for main line purified steam V2 shut off to purified sampling System V3 shut off to steam trap V4...
