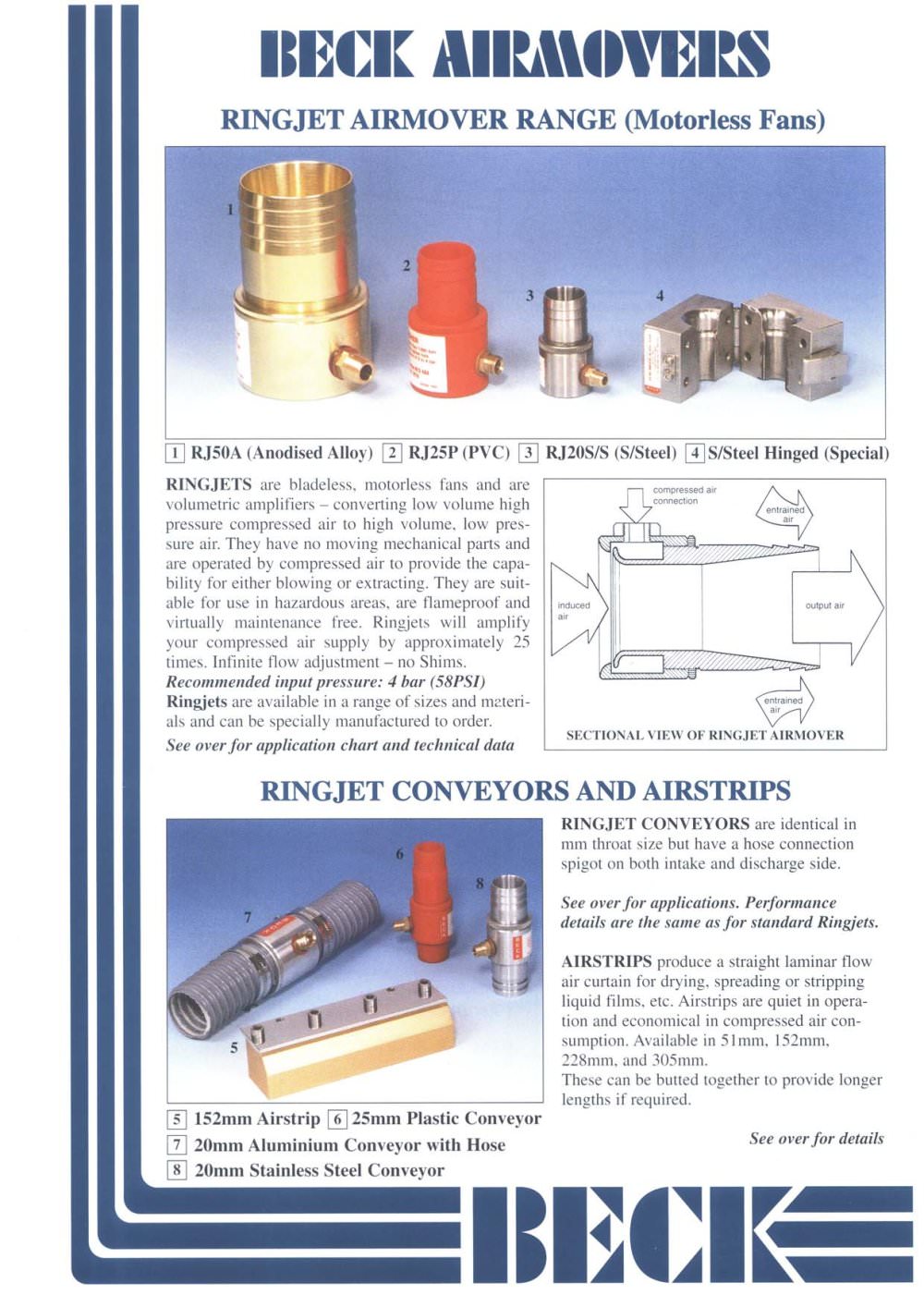

KECK AIKiltOVERS

2

[T] RJ50A (Anodised Alloy) [Tj RJ25P(PVC) [J] RJ20S/S (S/Steel) |j]S/Steel Hinged (Special)

RINGJETS are bladeless. motorless fans and are volumetric amplifiers - convening low volume high pressure compressed air to high volume, low pres­sure air. They have no moving mechanical parts and are operated by compressed air to provide the capa­bility for cither blowing or extracting. They are suit­able for use in hazardous areas, are flameproof and virtually maintenance free. Ringjets will amplify your compressed air supply by approximately 25 times. Infinite flow adjustment - no Shims. Recommended input pressure: 4 bar (58PSI) Ringjets are available in a range of sizes and materi­als and can be specially manufactured to order.

compressed air conneclion

/ eniramedX

output air

SECTIONAL VIEW OF RINGJET AIRMON"ER

RINGJET CONVEYORS are identical in mm throat size but have a hose connection Spigot on both intake and discharge side.

AIRSTRIPS produce a straight laminar flow air curtain for drying, spreading or stripping liquid films, etc. Airstrips are quiet in opera­tion and economical in compressed air con­sumption. Available in 51mm. 152mm. 228mm. and 305mm.

These can be butted together to provide longer lengths if required.

|~5~1 152mm Airstrip \T\ 25mm Plastic Conveyor [~7~| 20mm Aluminium Conveyor with Hose 20mm Stainless Steel Conveyor
